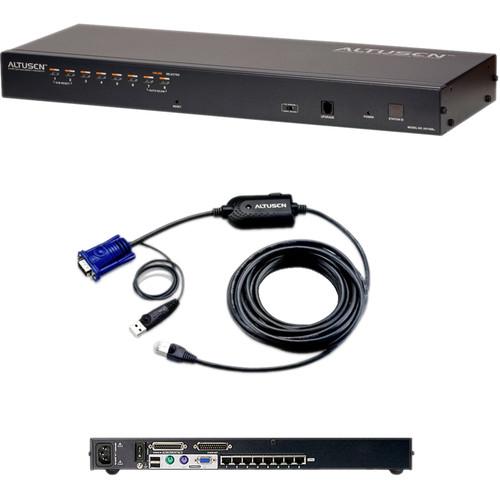

User Manual for ATEN KH1508AUKIT 8-port Cat 5 High-Density KVM Switch with Kit Click to enlarge the picture
Contents of the user manual for the ATEN KH1508AUKIT 8-port Cat 5 High-Density
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN KH1508AUKIT 8-port Cat 5 High-Density contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The KH1508AUKIT 8-port Cat 5 High-Density KVM Switch with Kit from ATEN is a control unit which allows administrators and users to access and control multiple computers from 1 PS/2 or USB KVM console. The KH1508AUKIT allows for 8 computer connections and control for up to 256 computers via daisy chaining. The KVM switch was designed to enable administrators to manage their entire server room and data center devices conveniently and, when needed, remotely. The KH1508AUKIT also includes 8 USB adapter cables. -
- One KVM Console controls up to 8 directly connected computers or via daisy chaining, up to 31 switches and 256 computers can be controlled by the KVM console
- Console conversion for mixed PS/2 and USB support through the KVM console and computer
- Configure port access right for users on a port by port basis and enable two-level password security
- Supports up to 10 users and 1 administrator account
- Broadcast mode allows you to perform installation, upgrade, and shutdown operations simultaneously
- Adapter ID
- Firmware Upgradeable
UPC: 881317509147 In the Box ATEN KH1508AUKIT 8-port Cat 5 High-Density KVM Switch with Kit Power Cord Foot Pad Set (4 Pieces) Firmware Upgrade Cable Rack Mount Kit 8 x KA7970 USB KVM Adapter Cable with Cat5e Cable (15') (CPU Module) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KH1508AUKIT 8-port Cat 5 High-Density KVM Switch with Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KH1508AUKIT Specs | Max Computer Connections | Direct: 8
Maximum: 256 (via daisy chain) | | Console Port Connectors | Keyboard: 1 x 6-pin mini-DIN Female (Purple); 1 x USB Type A Female (White)
Video: 1 x HDB-15 Female (Blue)
Mouse: 1 x 6-pin mini-DIN Female (Green); 1 x USB Type A Female (White) | | Connectors | KVM Ports: 8 x RJ-45 Female
Daisy Chain Ports: 1 x DB-25 Male
Power: 1 x 3-prong AC socket
F/W Upgrade: 1 x RJ-11 Female (Black) | | Switches | Reset: 1 x Semi-recessed push-button
Power: 1 x Rocker
Port Selection: 8 x Push-button
F/W Upgrade: 1 x Slide | | LEDs | On Line: 8 (Green)
Selected: 8 (Orange)
Power: 1 (Blue)
Station ID: 1 x 7-segment (Orange) | | Emulation | Keyboard/Mouse: PS/2; USB | | Video Resolution | 1600 x 1200 @ 60 Hz(40 m); 1280 x 1024 @ 75 Hz (50 m with KA7xx adapter cable) | | Scan Interval | 1-255 sec | | Input Rating | 100 to 240 VAC; 50/60 Hz; 1A | | Power Consumption | 120 V 5.8 W; 230 V / 6.0 W | | Port Selection | On Screen Display, Hotkeys, Push-buttons | | Housing | Metal | | Supported Operating Systems | Windows, Mac, Sun, and serial | | Dimensions (L x W x H) | 17.0 x 6.3 x 1.7" (43.3 x 16.0 x 4.4 cm) | | Weight | 6.0 lb (2.7 kg) |
