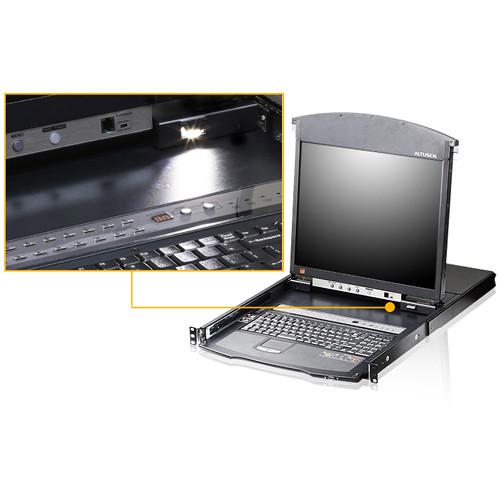

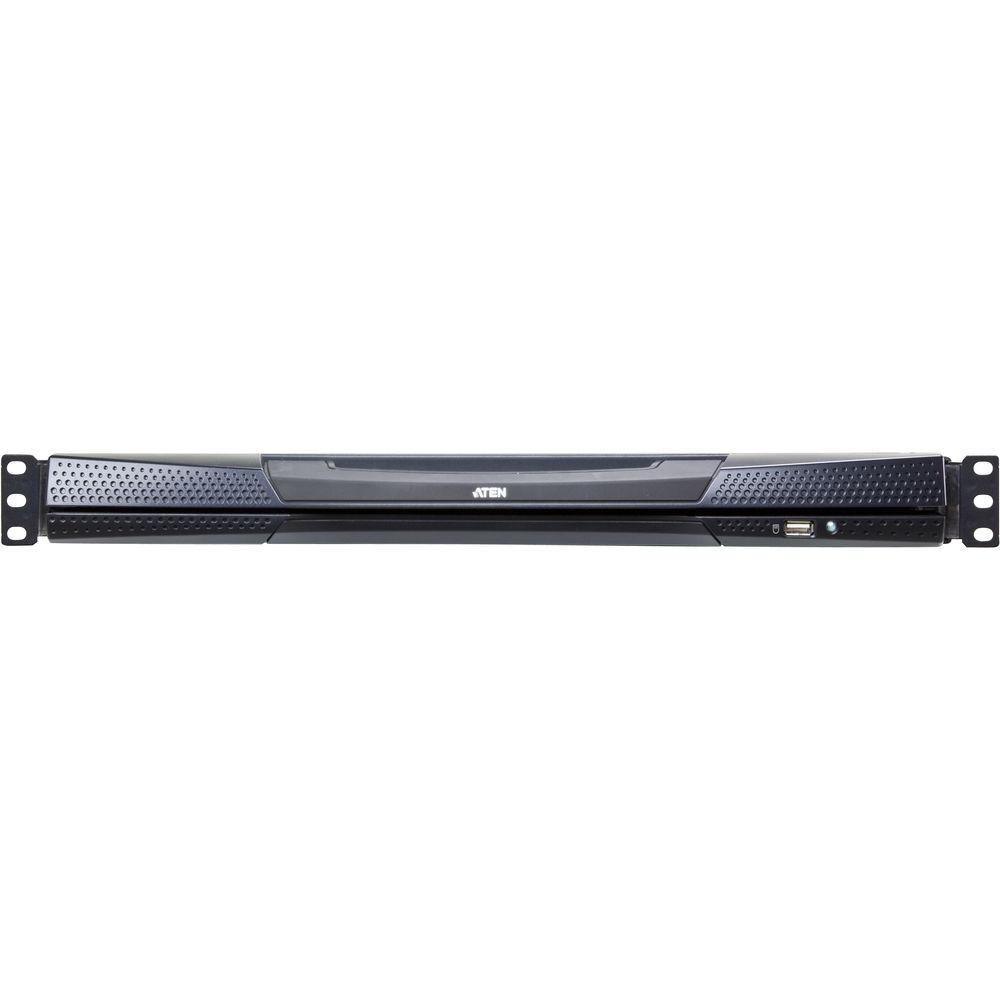

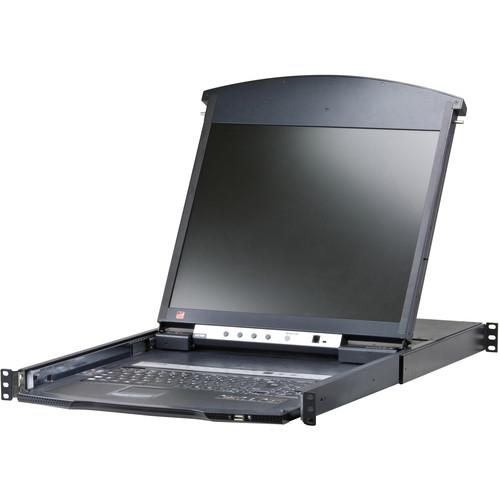

Product description The ATEN KL1508AiM 8-Port 17" Dual Rail CAT5 LCD KVM over IP Switch is a control unit that allows secure access for up to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing. The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides into "hide-away" when not in use, while the thin profile LCD monitor rotates back -flush against the rack- allowing convenient monitoring of computer activity. The KL1508AiM features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508AiM can be accessed from any computer on the LAN, WAN, or Internet, whether that computer is located down the hall, down the street, or halfway around the world. Compact, high-density, RJ-45 connectors and Cat 5e/6 cables make for a compact and efficient wiring configuration, while the use of KVM Adapter Cables to link to the computers permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation. Ports for an external keyboard, monitor, and mouse are provided on the rear panel, permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad. Enhanced features include a Panel Array Mode that displays the video output of up to 8 computers at the same time, and a Message Board that allows logged-in users to conveniently and instantly communicate with one other, regardless of their physical location. The KL1508AiM is a suitable solution for your server room management. - Hardware
-
- LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17¨ LED-backlit LCD monitor in a Dual Rail housing
- A single console controls up to 8 computers
- One bus for remote KVM over IP access
- Space-saving RJ-45 connectors and Cat 5e/6 cabling
- KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun, and serial) to control all computer types
- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
- Multiplatform support: PC, Mac, Sun, and Serial
- Supports external USB mouse
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
- Dual Rail LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- LCD power button helps save energy and prolong displays´ life
- Daisy chain up to 15 additional KVM switches to control up to 128 computers*
1 Please Note: * Compatible KVM switches: KH1508A/KH1516A, KH0116, ACS1208A/ACS1216A, CS1708A/CS1716A, KH1508/KH1516 close - Management
-
- Up to 64 user accounts and up to 32 concurrent remote logins
- End session feature: administrators can terminate any running session
- Adapter ID stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Remote power control for attached Power Over the NET devices
- Integration with ALTUSEN CC2000 Management software
- Event logging and Windows-based Log Server support
- Local Log Event
- Firmware upgradeable
- IPv6 capable
- Easy-to-Use Interface
-
- Easy computer selection via pushbuttons, Hotkey Mode, OSD (On Screen Display), and Browser-based GUI
- Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- Panel Array Mode™
- Keyboard broadcast (Local Console only) - keyboard input can be duplicated on all the attached servers
- Advanced Security
-
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
- IP/MAC Filter support for enhanced security protection
- Configurable user and group permissions for server access and control
- Virtual Remote Desktop
-
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync - automatically synchronizes the local and remote mouse movements
- Exit Macros support
- On-screen keyboard with multi-language support
- BIOS-level access
- Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
UPC: 672792401084 In the Box ATEN KL1508AiM 8-Port 17" Dual Rail CAT5 LCD KVM over IP Switch Rack Mount Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KL1508AiM 8-Port 17" Dual Rail CAT5 LCD KVM over IP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

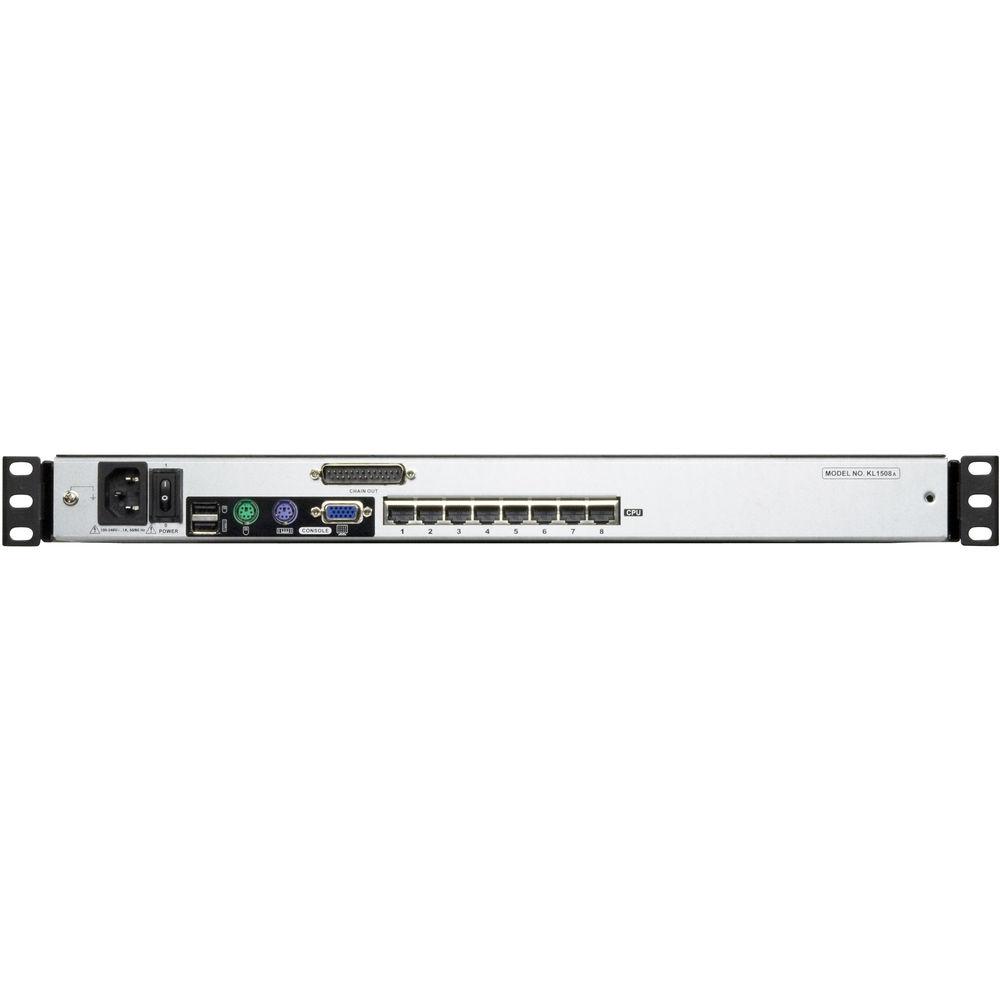

Technical parametersATEN KL1508AIM Specs | Computer Connections | Direct: 8
Max: 128 (via Cascade) | | Console Connections | Local: 1
Remote: 1 | | Port Selection | Pushbutton, OSD, Hotkey | | Connectors | Console Port-
Keyboard: 1 x 6-pin Mini-DIN Female (Purple), 1 x USB Type A Female (White)
Video: 1 x HDB-15 Female (Blue)
Mouse: 1 x 6-pin Mini-DIN Female (Green), 1 x USB Type A Female (White) KVM Ports: 8 x RJ-45 Female
Power: 1 x 3-prong AC socket
LAN: 1 x RJ-45 Female
PON: 1 x RJ-45 Female
F/W Upgrade: 1 x RJ-11 Female | | Switches | Reset: 1 x Semi-recessed pushbutton
Power: 1 x Rocker
Port Selection: 8 x Pushbutton
LCD Power: 1 x Pushbutton
LCM Adjustment: 4 x Pushbutton
F/W Upgrade: 1 x Slide
Station: 2 x Pushbutton | | LEDs | Station: 2 x 7 Segments (Orange)
On Line: 8 x (Green)
Selected: 8 x (Orange)
Power: 1 x (Blue)
Link 10 / 100 Mbps: 1 x (Orange / Green)
Num Lock: 1 x (Green)
Caps Lock: 1 x (Green)
Scroll Lock: 1 x (Green) | | Emulation | Keyboard/Mouse: PS/2 / USB | | Video | 1280 x 1024 @ 75 Hz; DDC2B 165' (50 m)(Local)
1600 x 1200 @ 60 Hz ; DDC2B 130' (40 m)(Remote) | | Scan Interval | 1 to 255 Seconds | | Input Power | 100-240 VAC ; 50-60 Hz; 1.0 A | | Power Consumption | 120 VAC / 27 W ; 230 VAC / 28 W | | Environmental | Operating Temperature: 32-104°F / 0-40°C Storage Temperature: -4-140°F / -20-60°C Humidity: 0-80% RH, Non-condensing | | Material | Metal housing | | Dimensions | 18.9 x 27.6 x 1.7" / 48.0 x 70.1 x 4.4 cm
1U | | Weight | 33.57 lb / 15.23 kg |
