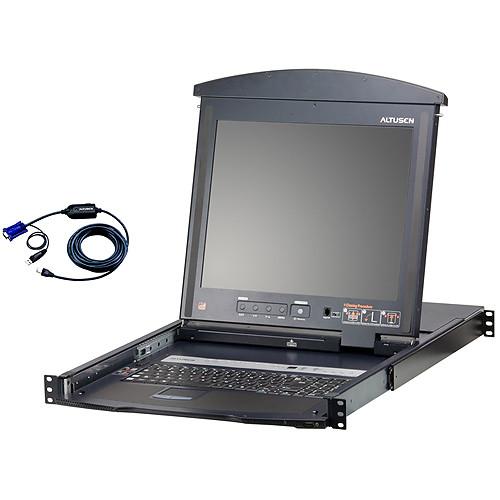

User Manual for ATEN KL1508AMUKIT 8-port 17" Dual Rail LCD KVM Switch and Cable Bundle Click to enlarge the picture
Contents of the user manual for the ATEN KL1508AMUKIT 8-port 17" Dual Rail
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
|
User manual for the ATEN KL1508AMUKIT 8-port 17" Dual Rail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The ATEN KL1508AMUKIT features the independently retractable, dual slide KL1508AM 17" eight-port KVM switch and eight KA7970 15' USB KVM Adapter Cables (CPU Module). These cables connect the KVM switch to the video and USB ports of the target computers. Its small form factor design helps it fit into most rack-mount or desktop servers. The bundle helps you start controlling individual computers out-of-the-box. -
- KVM console with LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high rack
- RJ-45 connectors and Cat 5 cable - extends the distance between computers and switch up to 40m (130') for resolutions of 1280 x 1024 @60Hz
- Dual Rail operation - LCD monitor slides independently of the keyboard/ touchpad
- A dedicated console port for management from an external console - plus an extra PS/2 mouse port for external mouse use with the integrated LCD console
- KVM adapter cables with automatic conversion allow flexible interface combinations. PCs, Macs, Sun computers, and serial devices can all coexist on the installation
- A single console controls up to 8 directly connected computers - daisy chain up to 31 additional units to control up to 256 computers
- No software required - convenient computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus
- Console lock enables the sliding console to remain securely locked away when not in use
- OSD screen automatically adjusts to resolution changes - OSD tree structure makes finding and managing computers easy
- Quickly and conveniently switch to any computer with station and port selection switches LED displays indicate the station and port location
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Auto Scan feature for monitoring user-selected computers
- Two level password security - only authorized users view and control the computers - up to four users plus an administrator with separate profiles for each
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Dedicated keys to invoke Hotkey Mode and the OSD from the keyboard for quick access to these functions
- Rack mountable in 19" System Rack (1U) - standard rack mount kit included - optional Easy Rack Mount (single person installation) kit available (requires separate purchase)
UPC: 881317509284 In the Box ATEN KL1508AMUKIT 8-port 17" Dual Rail LCD KVM Switch and Cable Bundle Altusen KL1508AM 8-Port Cat 5 Dual Rail 17" LCD KVM Switch dzeaesutzeabfrdyabdxbazafb Table of Contents
|
