User Manual for ATEN KL1508AN8-Port 19" Dual-Rail CAT5 LCD KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN KL1508AN8-Port 19" Dual-Rail CAT5 LCD
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
 |
User manual for the ATEN KL1508AN8-Port 19" Dual-Rail CAT5 LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

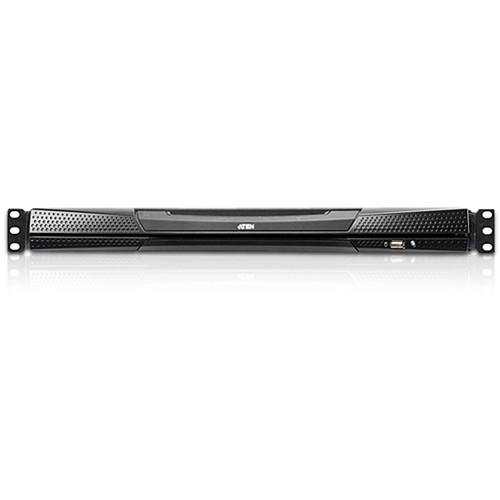

Product description This ATEN KL1508AN8-Port 19" Dual-Rail CAT5 LCD KVM Switch features an independently retractable, dual slide 19" LCD monitor and keyboard with built-in touchpad. The KL1508A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console. -
- Integrated KVM console with 19" LCD monitor in a dual rail housing
- A single console controls up to 8 computers
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- OSD tree structure makes finding and managing computers easy
- Conveniently located station and port selectors with LED displays to quickly switch to target computers
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
- Extra console port - manage computers in the LCD KVM switch from an external console
- Monitor, USB or PS/2 keyboard, and USB or PS/2 mouse
- Supports external USB mouse
- Dual Rail - LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
- Daisy chain up to 31 additional KVM switches to control up to 256 computers
- Auto Scan mode enables continuous monitoring of user-selected computers
- Multiplatform support: PC, Mac, Sun, and Serial
- Supports video resolutions up to 1280 x 1024 @ 75 Hz for up to 164'
- Configure port access rights for users on a port-by-port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiple user accounts support up to ten user and one administrator accounts
- Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
- LCD power button helps save energy and prolong displays' life
- Broadcast mode sends commands from the console to all computers, allowing you to simultaneously perform operations such as software installation, upgrades, shutdowns, etc. on computer
- Adapter ID
- Firmware upgradeable
- KVM adapter cables are designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
- Keyboard Language support: English(US); English(UK); German; German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian; Greek
UPC: 672792400551 In the Box ATEN KL1508AN8-Port 19" Dual-Rail CAT5 LCD KVM Switch Firmware Upgrade Cable Power Cord (6') Grounding Wire (4') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KL1508AN8-Port 19" Dual-Rail CAT5 LCD KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KL1508AN Specs | Max Computer Connections | Direct: 8
Daisy chain: 256 | | Connectors | Console Ports -
Keyboard: 1x 6-pin Mini-DIN Female (Purple), 1x USB Type A Female (White)
Video: 1x HDB-15 Female (Blue)
Mouse: 1x 6-pin Mini-DIN Female (Green); 1x USB Type A Female (White)

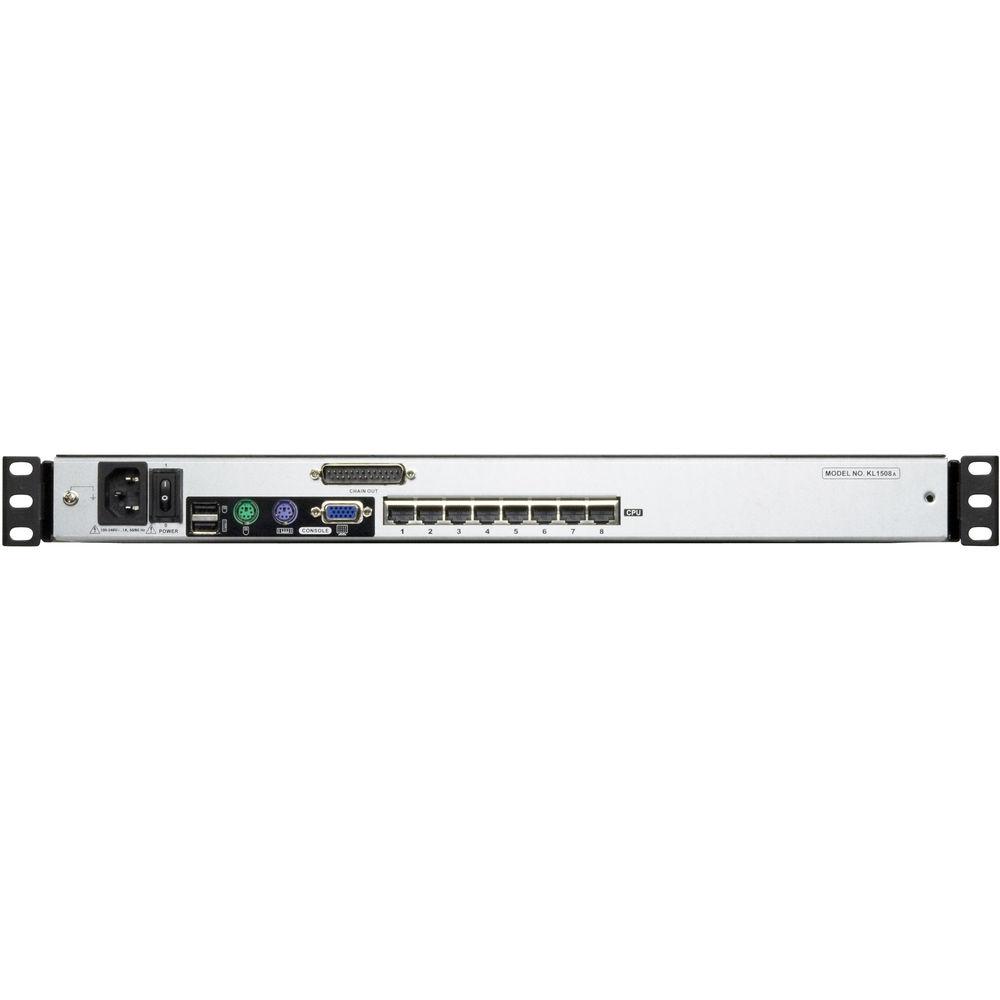

KVM ports: 8x RJ-45 Female (Black)
Daisy chain - out: 1x DB-25 Male (Black)
F/W upgrade: 1x RJ-11Male (Black)
Power: 1x 3-prong AC Socket
External Mouse: 1x USB Type A (Female)
| | Switches | Port Selection: 8x Pushbutton
KVM Rest: 1x Semi-recessed Pushbutton
F/W Upgrade: 1x Slide
Power: 1x Rocker
LCD Power: 1x Pushbutton
LCD Adjustment: 4x Pushbutton
Station: 2x Pushbutton
| | LEDs | Port -
On Line: 8x Green
Selected: 8x Orange
Power: 1x Blue
Station ID: 1x 2 Digit 7-segment Orange
Lock: 1x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
| | Video | Resolution: 1600 x 1200 @ 60 Hz (131.2' (40 m))
1280 x 1024 @ 75 Hz (164' (50 m))
Scan Interval: 1 to 255 seconds | | Power | I/P Rating: 100-240 VAC; 50/60 Hz; 1A
Power Consumption: 100 VAC 23 W / 230 VAC 23 W | | Enclosure | Metal housing | | Operating | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity 0-80% RH, Non-condensing | | Dimensions (WxHxD) | 18.89 x 27.6 x 1.73" (48 x 70.12 x 4.4 cm) | | Weight | 33.84 lb (15.35 kg) |
