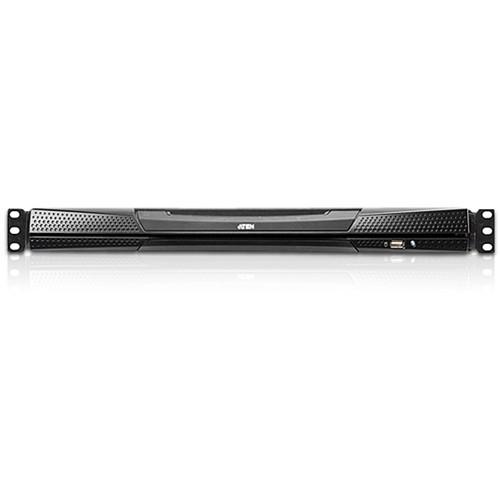

Product description The KL1516AIMUKIT 16-Port Cat 5 Dual Rail 17" LCD KVM Switch Kit is comprised of a KL1516AIM switch unit and twelve KA7970 cables. The switch features an independently retractable dual slide 17" LCD monitor and keyboard with a built-in touchpad. A single KL1516AIMK switch can control up to 16 computers and uses RJ-45 connectors and Cat5e/6 cables to link to the computers for reliability and efficiency. The twelve included cables can be used to connect the switch to any combination of Windows, Mac, and Sun operating computers, as well as serial devices. An additional four cables can be added for using all sixteen KVM ports. - KL1516AIM 16-Port Cat 5 Dual Rail 17" LCD KVM Over the Net Switch The Aten KL1516AIM 16-Port Cat 5 Dual Rail 17" LCD KVM Over the Net Switch features independently retractable, dual slide 17" LCD monitor and keyboard with built-in touchpad. A single KL1516AIM can control up to 16 computers. For increased reliability and efficiency, RJ-45 connectors and Cat 5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1516AIM permits any combination of Windows computers, Macs, Sun computers, and serial devices to coexist on the installation.

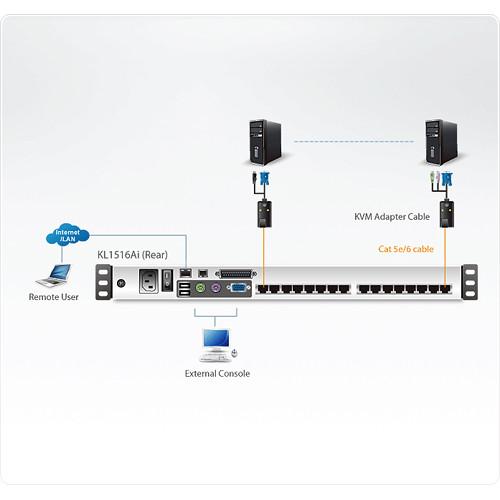

The KL1516AIM features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, it can be accessed from any computer on the LAN, WAN, or Internet, anywhere. - KVM console with 17" LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high rack

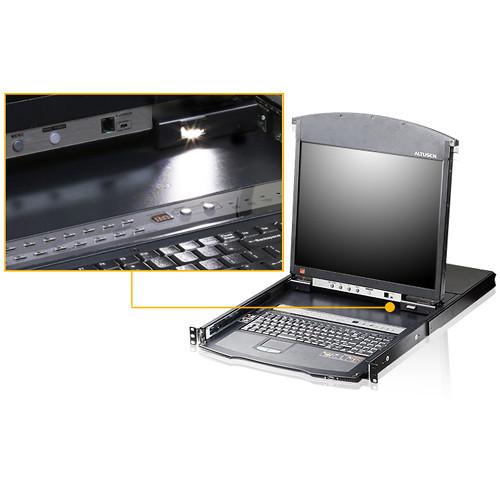

- Dual rail operation - LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120° for a more a versatile viewing angle
- Console lock enables the sliding console to remain securely locked away when not in use
- A single console controls up to 16 computers - daisy chain up to 31 additional units to control up to 256 computers with compatible KVM switches
- KVM adapter cables with automatic conversion allow flexible interface combinations. Windows computers, Macs, Sun computers, and serial devices can all coexist on the installation.
- A dedicated console port for management from an external console - plus an extra PS/2 mouse port for external mouse use with the integrated LCD console
- No software required - convenient computer selection via port selection switches, hotkeys and intuitive on screen display (OSD) menus
- OSD screen automatically adjusts to resolution changes - OSD tree structure makes finding and managing computers easy
- Quickly and conveniently switch to any computer with station and port selection switches - LED displays indicate the station and port location
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Auto scan feature for monitoring user-selected computers
- Two level password security - only authorized users view and control the computers - up to four users plus an administrator with separate profiles for each
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Standard 105-key keyboard; Mac and Sun keyboard emulation
- Dedicated keys to invoke Hotkey Mode and the OSD from the keyboard for quick access to these functions
- Rack mountable in 19" system rack (1U) - standard rack mount kit included, easy rack mount optional
- Keyboard language support: English (US), English (UK), German, German (Swiss), French, Spanish, Traditional Chinese, Japanese, Korean, Swedish, Italian, Russian, Hungarian, Greek
- Super A-Grade TFT LCD Panel
- Multiplatform support: Windows 2000/XP/Vista, Mac, Linux, Unix, Sun, FreeBSD
- Up to 64 user accounts - up to 32 concurrent remote logins
- End session feature - administrators can terminate any running session
- Adapter ID - stores port information, allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
- Port share mode allows multiple users to gain access to a server simultaneously
- Remote power control for attached Power Over the NET devices
- Integration with ALTUSEN CC2000 management software
- Event logging and Windows-based log server support
- Easy computer selection via pushbuttons, hotkey mode, OSD (on screen display), and browser-based GUI
- Local console, browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- Keyboard broadcast - keyboard input can be duplicated on all the attached servers (local console only)
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- 128-bit SSL encryption to protect password when users log in
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or random for independent KB/mouse, and video data encryption
- IP/MAC filter support for enhanced security protection
- Configurable user and group permissions for server access and control
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full-screen or sizable and scalable virtual remote desktop
- Message board feature allows logged in users to communicate with each other
- Mouse DynaSync - automatically synchronizes the local and remote mouse movements
- On-screen keyboard with multi language support
UPC: 672792401091 - KA7970 USB KVM Adapter Cable with Cat5e Cable (15') (CPU Module) The KA7970 USB KVM Adapter Cable from ATEN is designed to act as a connector between the KVM switch and the video and USB ports of the target computer. The cable features keyboard and mouse emulation and is compatible with most rack-mount and desktop servers.
- Keyboard and mouse emulation
- Lifetime firmware upgrades
UPC: 672792400544 In the Box Bundle Items KL1516AIM 16-Port Cat 5 Dual Rail 17" LCD KVM Over the Net Switch ruazacrtzfzxztyy - Limited 1-Year Warranty (LCD Panel)
12 x KA7970 USB KVM Adapter Cable with Cat5e Cable (15') (CPU Module) Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KL1516AIMUKIT 16-Port Cat 5 Dual Rail 17" LCD KVM Switch Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - KL1516AIM 16-Port Cat 5 Dual Rail 17" LCD KVM Over the Net Switch
| OS Compatibility | Windows: NT (does not support USB), 2000, XP, 2003 Server, 2008 Server, Vista
Linux (Kernels below 2.6 do not support USB 2.0): RedHat 9.0, Fedora and up, RHEL AS 4, RHEL 5; SuSE 10 and up, OpenSUSE 10.2, SLES 10 SP1; Debian 3.1, 4.0; Ubuntu 7.04, 7.10
UNIX: IBM AIX 4.3, 5L (V5.2, V5.3), V6 (V6.1); FreeBSD 5.5, 6.1, 6.2
Novell: Netware 5.0 and up
Sun: Solaris 8, 9, 10
Mac: 9.0, 9.1, 10.1, 10.2, 10.3, 10.4, 10.5
DOS: 6.2 and up (does not support USB) | | Max Computer Connections | Direct: 16

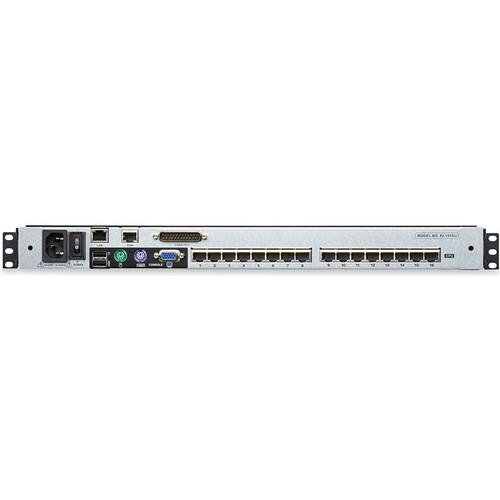

Via daisy chain: 256 | | Connectors | Console Ports:
Keyboard: 1 x 6-pin mini-DIN female, 1 x USB Type A female
Video: 1 x HDB-15 female
Mouse: 1 x 6-pin mini-DIN female, 1 x USB Type A female
KVM ports: 16 x RJ-45 female
Daisy chain: 1 x DB-25 male
Firmware upgrade: 1 x RJ-11 female
External mouse: 1 x USB Type A female
LAN: 1 x RJ-45 female
PON: 1 x RJ-45 female | | Buttons or Switches | Power: 1 x rocker
LCD power: 1 x pushbutton
LCM adjustment: 4 x pushbutton
Port selection: 16 x pushbutton
Firmware upgrade: 1 x slide
KVM reset: 1 x semi-recessed pushbutton
Station: 2 x pushbutton | | Emulation | Keyboard, mouse: PS/2, USB | | LED Indicators | Station: 2 x 7 segments (orange)
Port - on line: 16 (green)
- Selected: 16 (orange)
Power: 1 (blue)
Number lock: 1 (green)
Caps lock: 1 (green)
Scroll lock: 1 (green)
Link: 1 (green)
10/100 Mbps: 1 (orange/green)
LCD power: 1 (orange) | | Video Resolution | Local: 1280 x 1024 @ 75 Hz; DDC2B @ 165' (50 m)
Remote: 1600 x 1200 @ 60 Hz; DDC2B @ 130' (40 m) | | Scan Interval | 1 - 255 sec | | Port Selection | OSD, hotkey, pushbutton | | Enclosure | Metal | | Environment | Operating temperature: 32 - 104°F (0 - 40°C)
Storage temperature: -4 - 140°F (-20 - 60°C)
Humidity: 0-80% RH, non-condensing | | Power Consumption | 120 V, 33 W / 230 V, 34 W | | Power Requirements | 100 - 240 VAC, 50/60 Hz, 1A | | Dimensions (L x W x H) | 27.6 x 18.9 x 1.7" (70.1 x 48.0 x 4.4 cm) | | Weight | 35.3 lb (16.0 kg) | - KA7970 USB KVM Adapter Cable with Cat5e Cable (15') (CPU Module)
| Connectors | Link: RJ-45 Female
Mouse/Keyboard to Computer: USB Male
VGA to Computer: HDB-15 Male | | LEDs | On Line: 1 (Orange) | | Video Distance | Not Specified by Manufacturer | | Housing | Plastic | | Dimensions | 3.1 x 1.5 x 0.6" (7.9 x 3.7 x 1.6 cm) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 6.2 x 4.8 x 2.4" |
