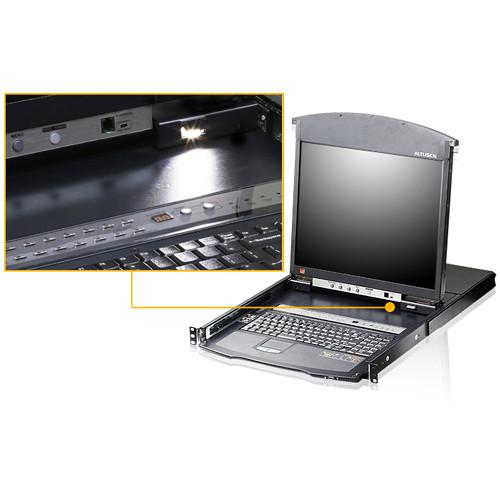

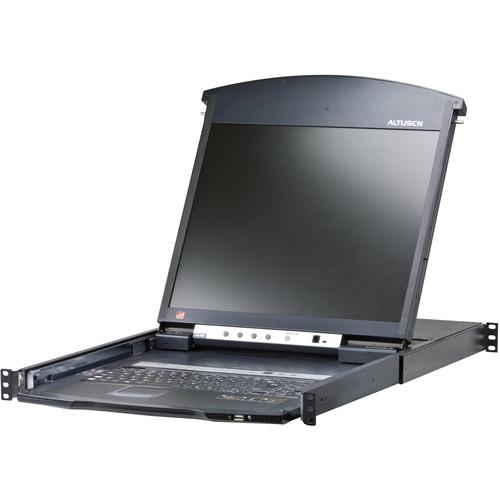

Product description The KL1516AiN 16-Port 19" Dual Rail LCD KVM over IP Switch from ATEN is a control unit that allows secure access for up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing. The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data centre, the keyboard/touchpad module slides back to hide away when not in use, while the thin profile LCD monitor rotates back, flush against the rack allowing convenient monitoring of computer activity. The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet. - Hardware
- Integrated KVM console with 19" LCD monitor in a dual rail housing
A single console controls up to 16 computers
One bus for remote KVM over IP access
Space-saving RJ-45 connectors and Cat 5e/6 cabling
KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun, and serial) to control all computer types
Extra console por-manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
Multi-platform support: PC, Mac, Sun, and Serial
Supports external USB mouse

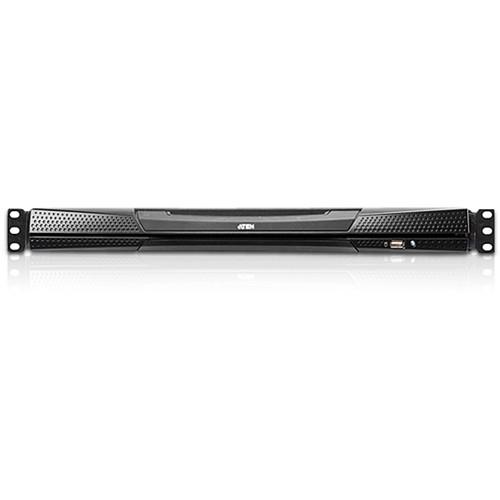

Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
Dual Rail - LCD monitor slides independently of the keyboard/touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock enables the console drawer to remain securely locked away in position when not in use
LCD power button helps save energy and prolong displays´ life
Daisy chain up to 15 additional KVM switches to control up to 256 computers 1 Please Note: Compatible KVM switches: KH1508A/KH1516A, KH0116, ACS1208A/ACS1216A, CS1708A/CS1716A, KH1508/KH1516 close - Management
- Up to 64 user accounts and up to 32 concurrent remote logins
End session feature administrators can terminate any running session
Adapter ID stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
Port Share Mode allows multiple users to gain access to a server simultaneously
Remote power control for attached Power Over the NET devices
Integration with ALTUSEN CC2000 Management software
Event logging and Windows-based Log Server support
Local Log Event
Firmware upgradeable - Easy-to-Use Interface
- Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
Local Console, browser, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, and Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, and Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
Panel Array mode
Keyboard broadcast: keyboard input can be duplicated on all the attached servers - Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
128-bit SSL encryption to protect password when users login
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
IP/MAC Filter support for enhanced security protection
Configurable user and group permissions for server access and control - Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed, monochrome color depth setting, threshold, and noise settings for compression of the data bandwidth in low bandwidth situations
Full-screen or sizable and scalable Virtual Remote Desktop
Message board feature allows logged in users to communicate with each other
Mouse DynaSync automatically synchronizes the local and remote mouse movements
On-screen keyboard with multi language support
BIOS-level access UPC: 672792401114 In the Box ATEN KL1516AiN 16-Port 19" Dual Rail CAT5 LCD KVM Over the Net Power Cord Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KL1516AiN 16-Port 19" Dual Rail CAT5 LCD KVM Over the Net in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

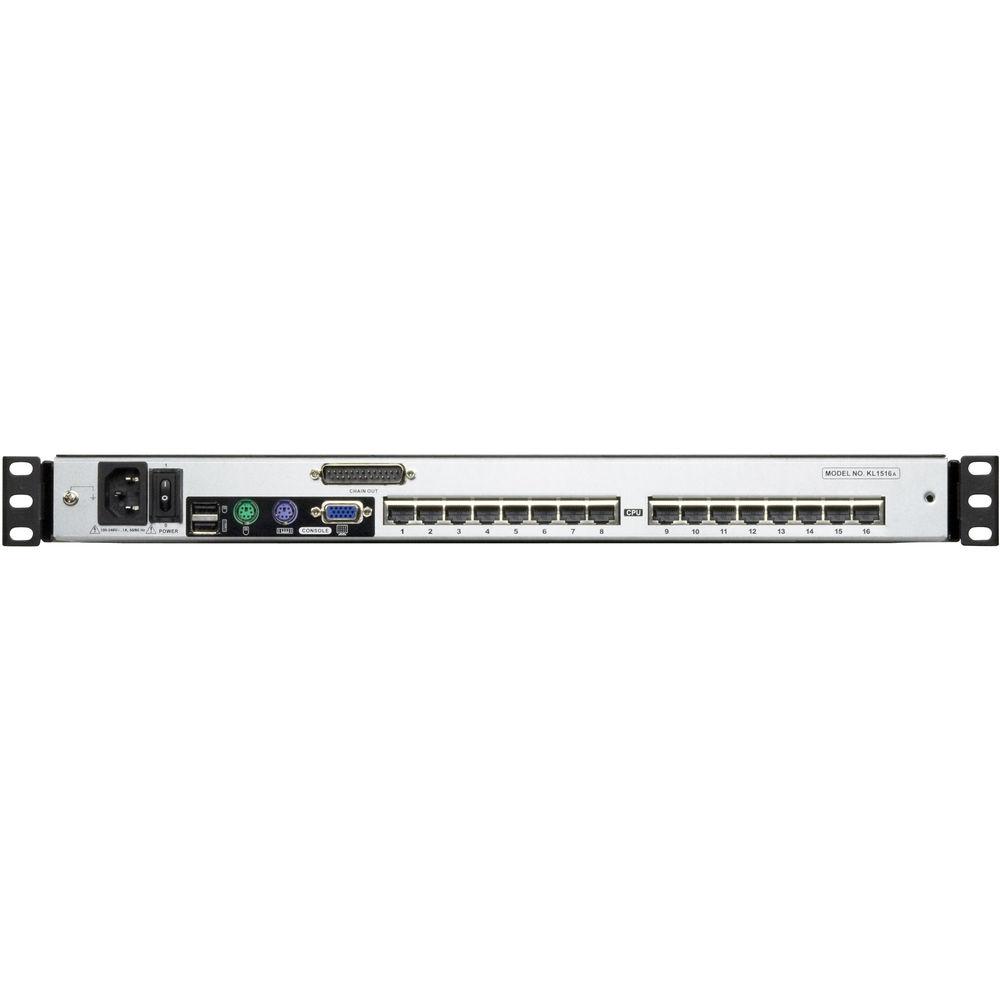

Technical parametersATEN KL1516AIN Specs | Computer Connections | Direct: 16
Maximum: 256 (via Daisy-Chain) | | Console Connections | Local/Remote: 1 | | Port Selection | OSD, Hotkey, Pushbutton | | Connectors | Console Ports
Keyboard:
1 x 6-pin mini-DIN female (purple)
1 x USB Type A female (white)
Video:
1 x HDB-15 female (blue)
Mouse:
1 x 6-pin Mini-DIN female (green)
1 x USB Type A female (white)
KVM Ports:
16 x RJ-45 female
Daisy Chain:
1 x DB-25 Male (black)
Power:
1 x 3-prong AC socket
F/W Upgrade:
1 x RJ-11 Female (black)
External Mouse:
1 x USB Type A (female)
LAN:
1 x RJ-45 female
PON: 1 x RJ-45 female | | Switches | Power: 1 x Rocker
LCD power: 1 x Pushbutton
LCM Adjustment: 4 x Pushbuttons
Port selection: 16 x Pushbuttons
Firmware upgrade: 1 x Slide
KVM Reset: 1 x Semi-recessed pushbutton
Station: 2 x Pushbuttons | | LEDs | Station ID: 2 x 7-segment (orange)
Port on Line: 16 (green)
Port Selected: 16 (orange)
Power: 1 (blue)
Num/Caps/Scroll Lock: 1 (green)
Link: 1 (Green)
10/100 Mb/s: 1 (orange/green)
LCD Power: 1 (orange) | | Video Resolution | Local: 1280 x 1024 at 75 Hz, DDC2B (165'/50 m)
Remote: 1600 x 1200 at 60 Hz, DDC2B (130'/40 m) | | Emulation | Keyboard/mouse: PS/2, USB | | Scan Interval | 1 to 255 sec | | Housing | Metal | | Language Supported | English (US); English (UK), German, German (Swiss), French, Spanish, Traditional Chinese; Japanese, Korean, Swedish, Italian, Russian, Hungarian, Greek | | Power | Input: 100 to 240 VAC, 50/60 Hz, 1 A
Consumption: 120 V, 27.5 W
230 V, 27.5 W | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 80% RH (non-condensing) | | Compliance | RoHS | | Dimensions | 18.89 x 27.6 x 1.73" (48 x 70.1 x 4.4 cm) | | Weight | 33.95 lb (15.4 kg) | | | | Package Weight | 43.5 lb | | Box Dimensions (LxWxH) | 32.5 x 26.8 x 5.6" |
