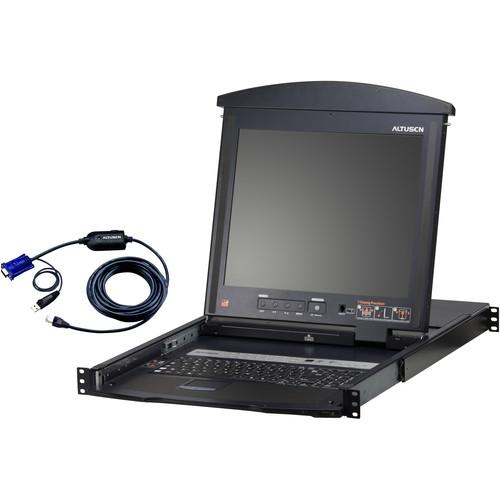

Product description The KL1516AMUKIT 16-Port CAT5 Dual Rail LCD KVM Switch from ATEN features independently retractable, dual slide 17" LED-backlit LCD monitor and keyboard with built-in touchpad. A single KL1516AMUKIT can control up to 16 computers. For increased reliability and efficiency, RJ-45 connectors and Cat 5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1516AMUKIT permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation. - Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- KVM console with 17" LED-backlit LCD monitor in a sliding housing
- LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120ᵒ for a more comfortable viewing angle
- Console lock enables the sliding console to remain securely locked away when not in use
- A single console controls up to 16 computers, daisy chain up to 31 additional units to control up to 512 computers
- KVM adapter cables with automatic conversion allow flexible interface combinations. PCs, Macs, Sun computers, and serial devices can all coexist on the installation
- RJ-45 connectors and Cat 5e/6 cable extends the distance between computers and switch up to 40m for resolutions of 1280 x 1024 at 75Hz
- A dedicated console port for management from an external console and an extra PS/2 mouse port for external mouse use with the integrated LCD console
- Convenient computer selection via port selection switches, Hotkeys, and intuitive On Screen Display (OSD) menus
- OSD screen automatically adjusts to resolution changes and OSD tree structure makes finding and managing computers easy
- Quickly and conveniently switch to any computer with station and port selection switches
- LED displays indicate the station and port location
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Auto Scan feature for monitoring user-selected computers
- With 2-level password security only authorized users view and control the computers, up to four users plus an administrator with separate profiles for each
- Commands from the keyboard can be broadcast to all available computers on the installation
- Standard 105-key keyboard, Mac and Sun keyboard emulation
- Dedicated keys to invoke Hotkey Mode and the OSD from the keyboard for quick access to these functions
- Includes standard rack mount kit
- English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese keyboard languages
- Super A-Grade TFT LCD Panel, Zero Dead Pixel Guarantee
- Supports Windows 2000/XP/Vista, Mac, Linux, Unix, Sun, FreeBSD
UPC: 881317509291 In the Box ATEN KL1516AMUKIT 16-Port CAT5 Dual Rail LCD KVM Switch 12 x KA7970 USB KVM Adapter Cable with Cat5e Cable (15') (CPU Module) Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KL1516AMUKIT 16-Port CAT5 Dual Rail LCD KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KL1516AMUKIT Specs | Connections | Direct: 16
Daisy Chain/Cascading: 512 (Daisy Chain) | | Port Selection | Hotkey, pushbuttons, OSD | | Connectors | Secondary Console:
1 x USB Type A Female
1 x 6-pin Mini-DIN Female
1 x VGA Female
CPU:
Keyboard/Mouse/Monitor: 16 x RJ-45 ports
Flash ROM Upgrade: 1 x RJ-11
Daisy Chain: 1 x DB-25 Male | | Indicators and Controls | LED Indicators:
Power On: 1
On Line: 16
Station ID: 2 x 7 segment
Selected: 16 | | Emulation | Keyboard/Mouse: PS/2/USB/Serial | | Video Resolution | 1280 x 1024 at 75Hz, DDC2B | | Scan Interval | 1 to 255 sec | | Power Consumption | 100 to 230 V, 24.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Relative Humidity | 0 to 80% RH (non-condensing) | | Housing | Metal | | Dimensions (L x W x H) | 28.0 x 19.0 x 1.7" / 71.1 x 48.3 x 4.3 cm | | Weight | 38.1 lb / 17.3 kg |
