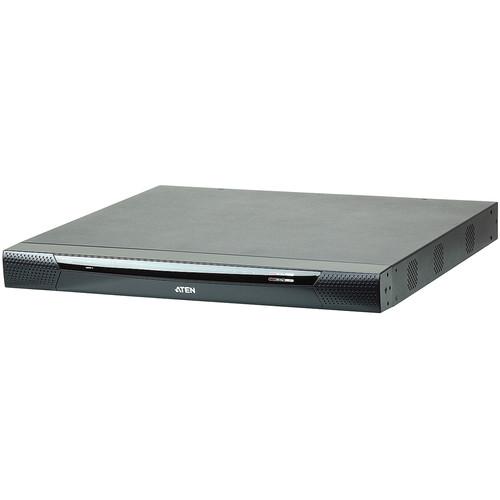

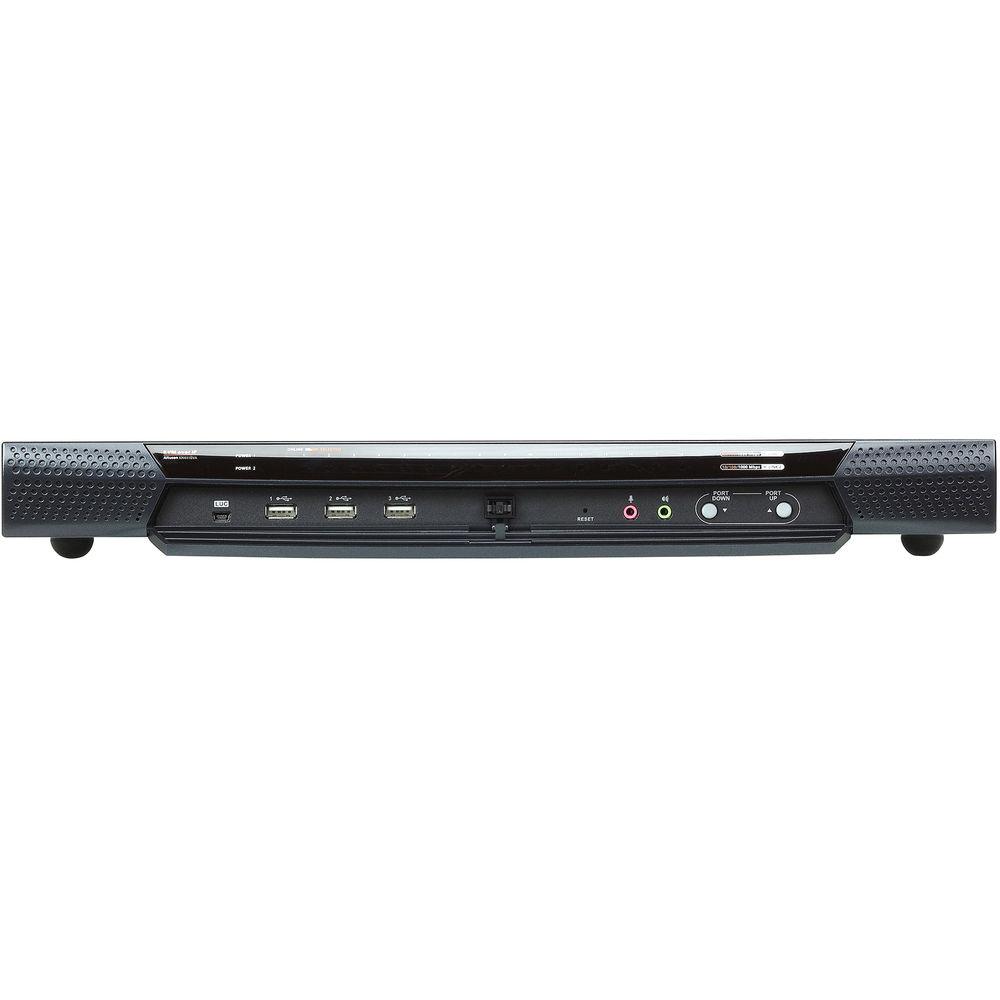

User Manual for ATEN KN Series 16-Port KVM over IP Switch with Dual Power LAN Click to enlarge the picture
Contents of the user manual for the ATEN KN Series 16-Port KVM over
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN KN Series 16-Port KVM over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More - ATEN's KN8 - KVM over IP ⿿ Series
The KN Series 16-Port KVM over IP Switch from ATEN supports HD resolution video, FIPS 140-2 with level 1 security standards, and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOS level troubleshooting when the network is down.With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers. KN2116VA can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices, allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines. To help you manage and control an entire data center, ATEN KVM over IP switches support blade servers and chassis.Thanks to Power Association feature, KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches' user interface. Additional, the KVM features a message board, Panel Array Mode, Mouse DynaSync, and the Adapter ID. - KN Series Features
-
- FPGA graphics processor
- Simultaneously share one local console and two independent connections to the attached servers
- Hardware Features
-
- RJ-45 connectors and CAT5e/6 cable for up to 16 ports
- A dedicated USB port directly connects to a laptop for easy Console operation
- Monitor and control up to 16 computers on a single level, or control up to 256 computers in a cascade
- Cascade-compatible KVM switches include CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A
- 4 separate buses for remote KVM over IP access
- Two 10/100/1000 Mb/s NICs for redundant LAN or two IP operation
- Blade server support
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides USB keyboard and mouse support
- Supports multi-platform server environments; Windows, Mac, Sun, Linux, and VT100 based serial devices
- Audio enabled
- Dual power supply
- Management Features
-
- Up to 64 user accounts
- Up to 32 users simultaneously share the control
- Green IT-Fan speed varies according to temperature
- Event logging and Windows-based Log Server support
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Customizable events notification
- Firmware upgradeable
- Out-of-Band Access-Modem dial-in/dial out/dial back support
- Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ATEN Altusen CC2000 Management Software
- Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
- IPv6 capable
- Ease-to-Use Interface
-
- ATEN Exclusive Panel Array Mode simultaneously monitoring for both local console operators and remote access users
- Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support; Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
- Full-screen or sizable and scalable Virtual Remote Desktop
- Keyboard/Mouse Broadcast
- Keyboard and mouse inputs can be duplicated on all the attached servers
- Video syncing with the local console; local console monitor's EDID information stored on the KVM Adapter Cables for display resolution optimization
- Security
-
- Remote authentication support; RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports SSL 128-bit data encryption and RSA 2048-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
- Support for IP/MAC filter
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third-party CA certificate authentication
- Virtual Media
-
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Supports DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Virtual Remote Desktop
-
- Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync; automatically synchronizes the local and remote mouse movements
- Exit Macros support
- On-screen keyboard with multilanguage support
- BIOS-level access for trouble shooting
UPC: 672792403439 In the Box ATEN KN Series 16-Port KVM over IP Switch with Dual Power/LAN (1-Local + 4-Remote Access) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KN Series 16-Port KVM over IP Switch with Dual Power LAN in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KN4116VA Specs | Computer Connections | Direct: 16
Maximum: 256 (via Cascade KVM switches) | | Console Connections | Local: 1

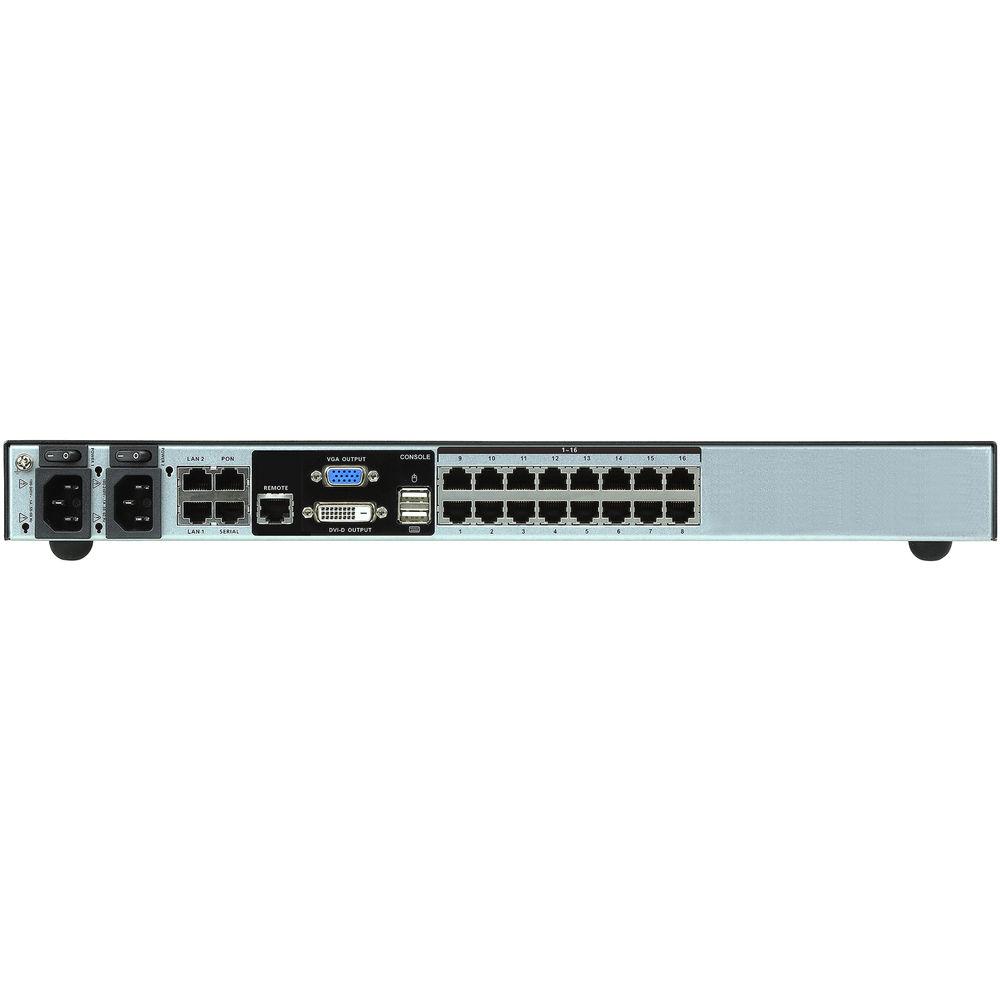

Remote: 4 | | Port Selection | Pushbuttons, Hotkeys, GUI | | Connectors | Console Ports:
2 x USB (female)
1 x DVI-D (female)
1 x VGA HDB-15
1 x RJ-45 (female)KVM Ports:
16 x RJ-45 (female)
USB Port:
3 x USB female
Audio:
2 x Audio jack (female)Laptop USB Console (LUC) Port:
1 x Mini-USB (female)
PON:
1 x RJ-45 (female)
Serial:
1 x RJ-45 (female)
LAN Ports:
2 x RJ-45 (female)
Power:
2 x IEC 60320/C14 | | Switches | Power:
2 x Rocker switches
Port Selection:
2 x Pushbuttons
Reset:
1 x Semi-recessed pushbutton | | LEDs | Online/Selected: 16 x Green/Orange
Power: 2 x Blue
Link 10/100/1000 Mb/s: 2 x Red/Orange/Green | | Emulation | Keyboard/Mouse: PS/2; USB | | Video | Local: 1920 x 1200 @ 60 Hz
Remote: 1920 x 1200 @ 60 Hz | | Input Power | Maximum 100 to 240 VAC; 50/60 Hz; 1 A | | Power Consumption | Single Power:
49.06 W @ 110 V; 50.49 W @ 220 V
Dual Power:
24.93 W @ 110 V; 25.8 W @ 220 V (per input) | | Scan Interval | 1 to 255 Sec | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions | 17.07 x 16.22 x 1.73" / 43.36 x 41.21 x 4.40 cm | | Weight | 12.4 lb / 5.6 kg | | | | Package Weight | 18.15 lb | | Box Dimensions (LxWxH) | 22.1 x 20.4 x 5.5" |
