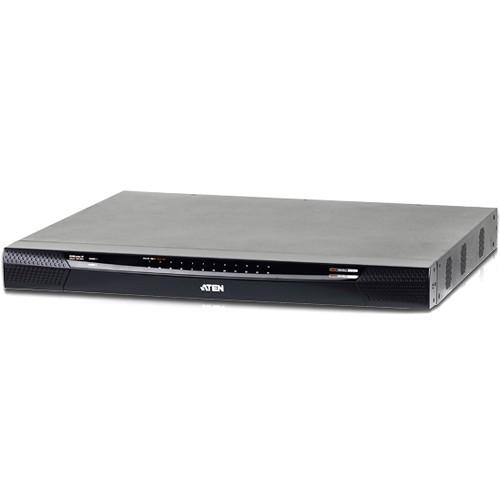

User Manual for ATEN KN Series 24-Port CAT5 KVM over IP Switch with Virtual Media Click to enlarge the picture
Contents of the user manual for the ATEN KN Series 24-Port CAT5 KVM
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN KN Series 24-Port CAT5 KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More aztexysfyswddseezvtevyzfyrsxwdcu The KN Series 24-Port CAT5 KVM over IP Switch from ATEN provides a local console and remote over IP access for users to monitor and access their entire data center over a network. It can control up to 24 servers. By cascading compatible KVM switches, as many as 384 servers can be controlled on a complete two-stage installation. It features the FPGA graphics processor that supports transmission of resolutions up to 1920 x 1200 at 60 Hz with 24-bit color depth up to a distance of 164'. It also supports FIPS 140-2 with level 1 security standards and provides faster virtual media transmission speeds for accessing USB drives. With dual on-board NICs and dual power supplies, this KN Series switch is built for reliability, to ensure 24/7 availability of remote access to all servers. This unit can be integrated into ATEN's CC2000 Management Software. The CC2000 software provides complete control of remote data centers and branch offices, allowing the IT administrators to remotely monitor and control all devices on a network, including blade server chassis, individual blades, and virtual machines. Additional, the KVM over IP Switch features a message board, Panel Array Mode, Mouse DynaSync, and the Adapter ID. Main Highlights - Supports FIPS 140-2 level 1 security standards
- FPGA graphics processor supports resolutions up to 1920 x 1200 at 60 Hz with 24-bit color depth at the switch's local console and on remote displays
- Virtual media transmissions at twice the speed
- Simultaneously share one local console and two independent connections to the attached servers
Hardware - RJ45 connectors and CAT5e/6 cable connect up to 24 ports in a 1U housing
- Laptop USB Console (LUC) - a dedicated USB port directly connects to a laptop for easy console operation
- Two separate buses for remote KVM over IP access
- Two 10/100/1000 Mb/s NICs for redundant LAN or dual IP operation
- Supports PS/2, USB, Sun Legacy (13W3), and serial (RS-232) connectivity
- Local console provides USB keyboard and mouse support
- Supports multi-platform server environments: Windows, Mac, Sun, Linux, and VT100 based serial devices
- Supports microphone and speakers on the console for the servers; supports speakers on the remote users' computers
- Monitor and control up to 24 computers on a single level, or control up to 384 computers in a cascade
- Cascade-compatible KVM switches include CS9134, CS9138, KH1508A, and KH1516A
Management - Supports up to 64 user accounts
- Up to 32 users can simultaneously share control
- Green IT-Fan speed varies according to temperature
- Event logging and Windows-based Log Server support
- End session feature allows administrators to terminate running sessions
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Customizable events notification
- Out-of-band access-modem dial-in/dial-out/dial back support
- Stores port information, allowing administrators to relocate the servers to different ports without having to re-configure adapters or switches
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ATEN Altusen CC2000 Management Software
- Manage browser access selection (browser, http, and https)
Easy-to-Use Interface - Panel array mode allows simultaneous monitoring for both local console operators and remote access users
- Multi-platform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support; Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software
- Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
- Full-screen or sizable and scalable virtual remote desktop window
- Local console, browser-based, and AP GUIs offer a unified multi-language interface to minimize the user training time and increase productivity
- Supports keyboard/mouse broadcast
- Keyboard and mouse inputs can be duplicated on all the attached servers
- Video syncing with the local console; local console monitor's EDID information stored on the KVM adapter cables (available separately) for display resolution optimization
Advanced Security - Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
- Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure user logins from browsers
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or random for independent keyboard/mouse, video and virtual media data encryption
- Supports IP/MAC address filtering
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third-party CA certificate authentication
Virtual Media - Enables remote file transfers, OS patching, software installation, and diagnostic testing
- Works with USB-enabled servers at the operating system and BIOS level
- Supports DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Supports smart card readers on computers connected with the KA7166, KA7168, KA7169, or KA7177 adapter cables (available separately)
Virtual Remote Desktop - Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Fullscreen or scalable window for desktop sessions
- Message Board for communication among remote users
- Mouse DynaSync function automatically synchronizes the local and remote mouse movements
- On-screen keyboard with multi-language support
- BIOS-level access for trouble shooting
Configurable Network Bandwidth Settings - Network bandwidth settings allow you to streamline data throughput by adjusting the size of the data stream (bandwidth) to match network traffic conditions
- Video performance can be adjusted to optimize the data throughput for the available network bandwidth
- With high-speed LAN access, the settings can be adjusted so that a greater amount of video data is sent, resulting in a higher quality video display
- Settings can be adjusted to minimize network lag during limited bandwidth
UPC: 672792403675 In the Box ATEN KN Series 24-Port CAT5 KVM over IP Switch with Virtual Media (1-Local + 2-Remote User Access) 2 x Power Cord Mounting Kit 2 x Lok-U-Plug Lok-U-Plug Installation Tool 4 x Foot Pad Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KN Series 24-Port CAT5 KVM over IP Switch with Virtual Media in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KN2124VA Specs | Max Computer Connections | 384 (via cascade KVM switches) | | PC Connectors | KVM Port: 24 x RJ45 female (black) | | Console Connectors | Keyboard: 1 x USB type A female (black)
Video: 1 x DVI-I female (white)
Mouse: 1 x USB type A female (black)
Audio: 2 x Audio jack (female)
LUC Port: 1 x Mini-USB female (black) | | Additional Connections | Power: 2 x IEC 60320/C14
LAN: 2 x RJ45 female (black)
USB (Console/Virtual Media): 3 x USB type A female (black) | | Video Resolution | Local & Remote: 1920 x 1200 @ 60 Hz | | Scan Interval | 1 to 255 sec | | Port Selection | Pushbuttons, Hotkeys, GUI | | Emulation | Keyboard / Mouse: PS/2 / USB (PC, Mac, Sun) | | System Requirements | For Remote User Computers:
Intel Pentium III 1 GHz processor with 1024 x 768 screen resolution
TLS 1.2 encryption support on browsers
Minimum Transfer Speed: 512 kbps
Web Browser: IE (8 or above)
Driver Requirement for Log Server: Microsoft Jet OLEDB 4.0 or higher
Memory Availability:
150 MB for browser-based WinClient ActiveX Viewer and DirectX 8
205 MB for browser-based Java Client Viewer
90 MB for Windows Client AP and DirectX 8 installation
145 MB for Java Client AP installation
For Servers (Computers Connected via Optional KVM Adapter Cables):
VGA, SVGA, or multisync port
One Type A USB port and USB host controller (for USB KVM adapter cable connections)
6-pin Mini-DIN keyboard and mouse ports (for PS/2 KVM adapter cable connections) | | Supported OS | Supported OS For Remote User Computers:
Windows 2000 or above
Linux, Mac, Sun with Java Runtime Environment (JRE) 6 support (update 3 or above)
For Directly Connected Servers:
Windows 2000 or above
Linux: RedHat (7.1 or above), Fedora (Core 2 or above), SuSE (9.0 or above), Mandriva or Mandrake (9.0 or above)
UNIX: AIX (4.3 or above), FreeBSD (4.2 or above), Sun (Solaris 8 or above)
Novell: Netware (5.0 or above), Mac (OS 9 or above), DOS (6.2 or above) | | Buttons or Switches | Power: 2 x Rocker switch
Port Selection: 2 x Push button
Reset: 1 x Semi-recessed pushbutton | | Supported Browsers | IE (8 or above)
Chrome (8.0 or above)
Firefox (Windows 3.5 or above and Linux 3.0 or above)
Safari (Windows 4.0 or above and Mac 3.1 or above)
Opera (10.0 or above)
Mozilla (Windows 1.7 or above and Sun 1.7 or above)
Netscape (9.0 or above) | | LED Indicators | Online / Selected: 24 (green / orange)
Power: 2 (blue)
Link (10 / 100 / 1000 Mbps): 2 (red/orange/green) | | Enclosure | Metal | | Power Requirements | 100 to 240 VAC; 50 to 60 Hz; 1.0 A | | Power Consumption | Single Power:
32.78 W (110 V)
33.44 W (220 V)
Dual Power:
18.81 W (110 V), per input
19.36 W (220 V), per input | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C | | Humidity (Non-Condensing) | 0 to 80% RH | | Dimensions (L x W x H) | 17.1 x 16.2 x 1.7" / 43.4 x 41.2 x 4.4 cm | | Weight | 12.07 lb / 5.48 kg | | | | Box Dimensions (LxWxH) | 22.64 x 19.92 x 5.12" |
