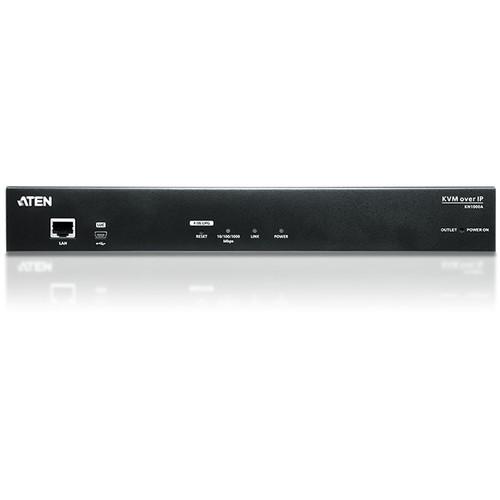

User Manual for ATEN KN1000A Single Port KVM over IP Switch with Single Port Power Switch Click to enlarge the picture
Contents of the user manual for the ATEN KN1000A Single Port KVM over
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN KN1000A Single Port KVM over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More szbtzxdudcqdzybzysbafxatyde The ATEN KN1000A Single Port KVM over IP Switchprovides access and control over-IP for conventional KVM switches and servers that do not have built-in over-IP functionality. It allows system operators to monitor and access computers from remote locations for down to the BIOS-level troubleshooting, using standard Web browsers or Windows and Java based application programs, without the need to be on site for constant IT maintenance. In addition, the switch supports out-of-band access in case the LAN goes down, with external modem support as backup.
To help you manage and control widely distributed servers efficiently from a remote console, a built-in single-port power switch provides remote power management of a server connected locally, allowing you to turn a server On or Off, and reboot it. In addition, you can add an ATEN PDU unit to manage the power status of even more devices.
The switch also provides serial console management over the Internet which can remotely control serial console devices such as network switches. It makes it easy to work on many tasks simultaneously, featuring a LUC (Laptop USB Console) port for quick KVM access via a laptop, user-friendly OSD, virtual media functionality without additional cables, and video resolutions up to 1920 x 1200.
The Virtual Media function allows you to perform file transfers, system diagnostic testing, software patches and application installations, all from the remote console. There is no need to physically mount an optical drive directly at the server to perform data related tasks. The inclusion of a Java-based client ensures that the switch platform is independent and able to work with most operating systems. - Hardware
-
- Provides over-IP capability to KVM switches that do not have built in over-IP functionality
- Built in single port power switch
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2, USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Virtual media support
- High video resolution – up to 1920 x 1200 @ 60 Hz- 24-bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
- Enhanced fps (frames per second) throughput for crisp responsive video display
- Management
-
- Up to 64 user accounts – up to 32 users simultaneously share the control
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Critical system events sent by email and SNMP trap; and Syslog support
- Remote Firmware upgradable
- Serial console management – serial terminal access
- Access the switch via a built-in serial viewer, or via third party software (such as PuTTY) for Telnet and SSH sessions
- PPP mode (modem) dial-in/dial back/dial out support for out-of-band, and low bandwidth operation
- Port share mode allows multiple users to gain access to a server simultaneously
- Local/Remote Share Mode to conveniently grant shared or exclusive console privilege
- Integration with ATEN CC2000 Centralized Management Software
- Integration with ATEN PDU for remote power control
- Remote power on and off control function with Wake on LAN
- On/Off scheduling for power outlet. Power management tasks can be scheduled on a daily, weekly, monthly or user specified time basis
- Safe shutdown support
- Auto-Ping pings a device to determine its status, if the ping test fails after a set amount of time – it automatically takes an action assigned
- DDNS (Dynamic Domain Name System)
- Export/import user account and configuration settings
- Manage browser access methods (disable browser, http, or https)
- Easy-to-Use Interface
-
- Browser-based and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- Full-screen or sizable and scalable virtual remote desktop
- Magic panel - a special hideaway control panel with configurable function icon
- Advanced Security
-
- Smart Card /CAC Reader Support
- External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
- IP/MAC Filter for enhanced security protection
- Supports password protection
- Private certificate authority
- Virtual Media
-
- Virtual media enables file applications, OS patching, software installation, and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Virtual Remote Desktop
-
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multi-language support
- Mouse Dynasync
- Exit Macros support
UPC: 672792403781 In the Box ATEN KN1000A Single Port KVM over IP Switch with Single Port Power Switch Custom KVM Cable Set Custom Console Cable Set Mini USB to Type A USB Cable Power Adapter Outlet Power Cord Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KN1000A Single Port KVM over IP Switch with Single Port Power Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

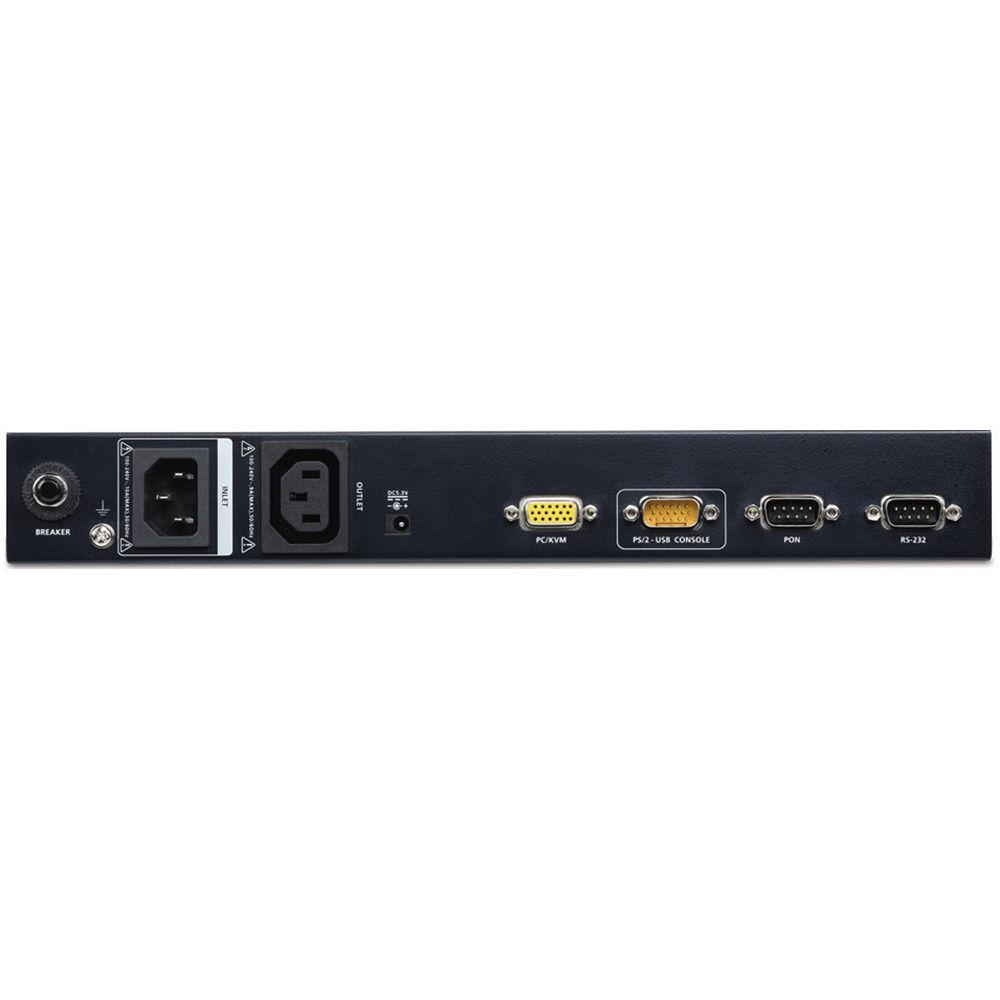

Technical parametersATEN KN1000A Specs | Connectors | Console Ports: 1 x SPHD-18 (male)
KVM (Computer) Ports: 1 x SPHD-18 (female)
Laptop USB Console (LUC) Port: 1 x USB Mini Type B (female)
PON: 1 x DB-9 (male)
RS-232: 1 x DB-9 (male)
LAN Ports: 1 x RJ45 (female)
Power Inlets: 1 x IEC320 C14
Power Outlets: 1 x IEC320 C13
Power: 1 x DC Jack | | Switches | Reset: 1 x Semi-recessed Pushbutton | | LEDs | Power: 1 x Orange
Power Outlets: 1 x Orange
Link: 1 x Green
10/100/1000 Mbps: 1 x (10: Orange / 100: Orange+Green / 1000: Green) | | Emulation | Keyboard / Mouse: USB; PS/2 | | Video | Up to 1920 x 1200 @ 60 Hz; DDC2B | | Input Power | 100 to 240 V, 50 to 60 Hz; 10 A | | Output | 100 to 240 V, 50 to 60 Hz; 9 A | | Power Consumption | 5.3 VDC, 4.48 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 12.2 x 3.3 x 1.65" / 31 x 8.4 x 4.2 cm | | Weight | 1.94 lb / 0.88 kg | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 16.4 x 8.3 x 4.8" |
