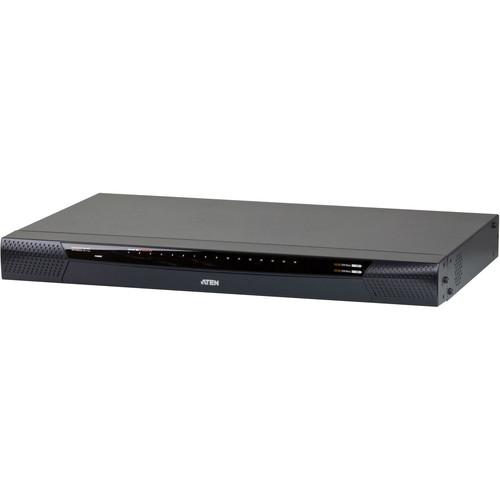

Product description Multi-Monitors: Maximizing Multitasking Read More ffrwrsrx The KN1116v 16-Port KVM Over IP Switch from ATEN allows local and remote operators to monitor and access their entire data center over the network using a Web-based browser. They also offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. The KVM over IP switch supports the Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through the KVM over IP switch. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system is recorded and saved to a secure video file as evidence, without exception. The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers, allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease. Enhanced capabilities of KVM over IP switch also include a message board, Panel Array mode, mouse DynaSync, adapter ID and secure serial server access. The secure access to serial-controlled devices include network equipment, UNIX servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles. With dual on-board NICs and dual power supplies, the KVM over IP switch is built for reliability to ensure 24/7 availability of remote access to all server room computers. With the KVM over IP switch IT administrators can manage their server rooms and data centers from anywhere, minimizing travel costs and MTTR (Mean Time to Repair), ensuring a high availability of data center services possible. Hardware - High port density - RJ-45 connectors for up to 16 ports in a 1U housing
- Laptop USB Console (LUC) is a dedicated USB port which directly connects to a laptop for easy console operation
- One bus for remote KVM over IP access
- Two 10/100/1000 Mb/s NICs for redundant LAN or two IP operations
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2 and USB keyboard and mouse support
- Supports multi-platform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
- High video resolution up to 1600 x 1200 @ 60Hz(40m with KVM adapter cable KA7000 series) /1920 x 1200 @ 60Hz (30m) for local and remote sessions 1
Please Note: Note: 1920 x 1200 (Reduced blanking) only supported by KA7175, KA7176, and KA7177 close - Monitor and control up to 16 computers on a single level, or control up to 256 computers in a two-level cascade 2
Please Note: Note: Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, andKH1516A close Management - Up to 64 user accounts: Up to 32 users simultaneously share the control
- With the end session feature administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Critical system event notification via SMTP email, SNMP trap and Syslog support
- Out-of-band access-modem dial-in/dial out/dial back support
- Adapter ID Function: Stores port information, allowing administrators to relocate the servers to different ports without having to re-configure the adapters and switches
- Port share mode allows multiple users to gain access to a server simultaneously
- Integration with ALTUSEN CC2000 management software
- Power Association enables the switch's KVM ports to be associated with an ATEN/ALTUSEN´S PDUs power outlets for remote power management of the servers from the switch´s interface
- Power over the NET integration for remote power control, plus support for 3rd party Power Distribution Units (PDUs)
- Manage browser access methods (browser, http, https)
- User Friendly Interface
- Local console, browser-based, and AP GUIs offer a unified multi-language interface to minimize the user training time and increase productivity
- Multi-platform client support (Windows, Mac OS X, Linux, Sun)
- Supports Multi-browsers such as Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure web technology allows administrators to perform administrative tasks without a pre-installed Java software package required
- Magic Panel is a special hideaway control panel with configurable function icon
- Full-screen or sizable and scalable virtual remote desktop
- Panel Array mode is available to both local console operators and remote access users
- Keyboard/mouse broadcast can be duplicated on all the attached servers
- Video syncing with the local console monitor´s EDID information stored on the KVM adapter cables for display resolution optimization
Advanced Security - Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users login from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent keyboard/mouse, video, and virtual media data encryption
- IP/MAC filter for enhanced security protection
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third party CA certificate authentication
Virtual Media - Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB-enabled servers in operating system and BIOS level
- Supports DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Virtual Remote Desktop - Video quality and video tolerance can be adjusted to optimize data transfer speed. Monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message board for communication among remote users
- Mouse DynaSync automatically synchronizes the local and remote mouse movements
- Keyboard pass through support
- On-screen keyboard with multi-language support
UPC: 672792003615 In the Box ATEN KN1116v 16-Port KVM Over IP Switch 2 x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE) 2 x Power Cords 1 x Rack Mount Kit 1 x Laptop USB Console Cable 1 x Foot Pad Set (4 pieces) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KN1116v 16-Port KVM Over IP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KN1116V Specs | Computer Connections | Direct: 16
Maximum: 256 (via Cascade) Direct: 16
Maximum: 256 (via Cascade) | | Port Selection | Pushbutton, GUI, Hotkey | | Console Port Connectors | Keyboard: 1 x 6-pin Mini-DIN Female (Purple)
1 x USB Type A Female (White)
Video: 1 x HDB-15 Female (Blue)
Mouse: 1 x 6-pin Mini-DIN Female (Green)
1 x USB Type A Female (White)

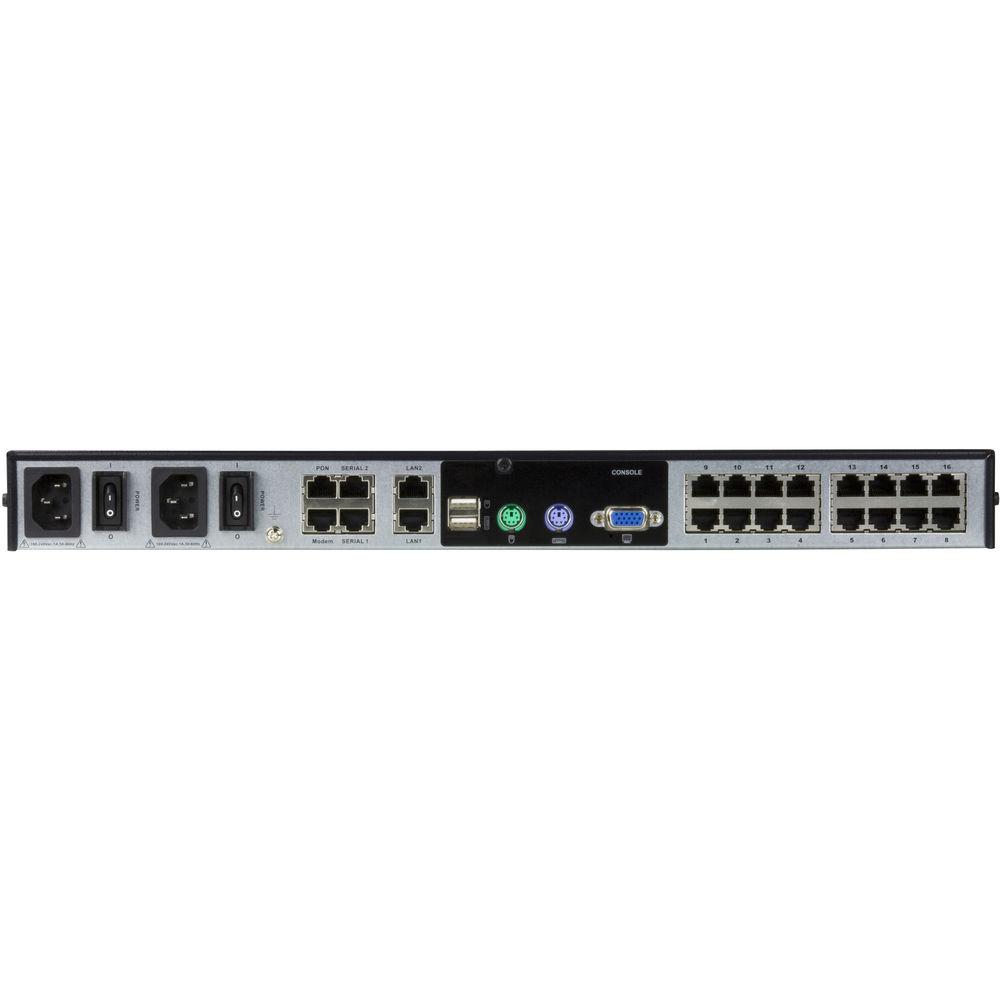

KVM Ports: 16 x RJ-45 Female
Power: 2 x 3-prong AC socket
LAN: 2 x RJ-45 Female
PON: 1 x RJ-45 Female
Modem: 1 x RJ-45 Female
Serial: 2 x RJ-45 Female

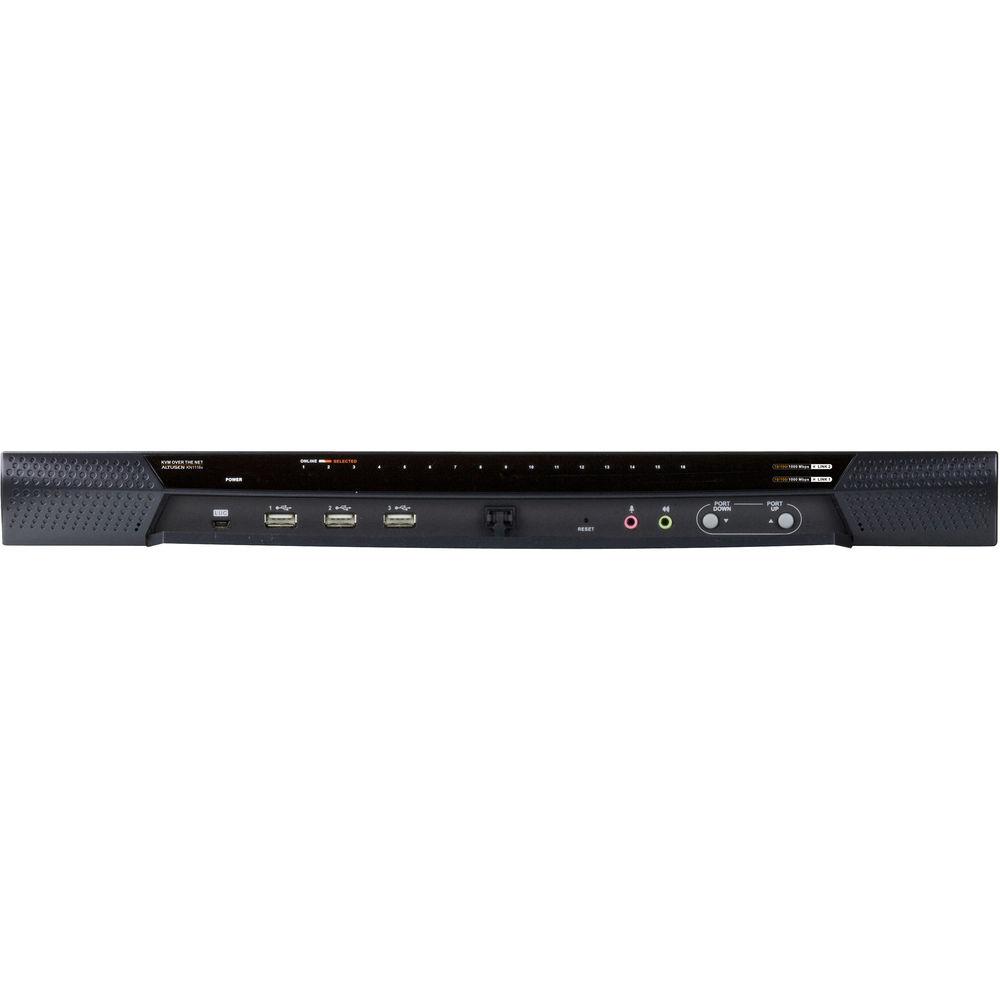

USB: 3 x USB Type A Female (White)
Laptop USB Console (LUC) Port: 1 x USB Mini Type B Female (Black)
Audio: 2 x Audio Jack Female | | Switches | Reset: 1 x Semi-recessed Pushbutton
Power: 2 x Rocker
Port Selection: 2 x Pushbutton | | LEDs | On Line: 16 x Green
Power:1 x Blue
Link 10 / 100 / 1000 Mb/s: 1 x Green / Green / Orange Emulation: Keyboard/Mouse PS/2 / USB (PC, Mac, Sun) / Serial | | Video | Local: 1600 x 1200 @ 60 Hz (40m with KVM Adapter Cable KA7000 series)
1920 x 1200 @60 Hz (30m) DDC2B Note: 1920 x 1200 (Reduced blanking) only supported by KA7175, KA7176, and KA7177 Remote: 1600 x 1200 @ 60 Hz (40m with KVM Adapter Cable KA7000 series)
1920 x 1200 @60 Hz (30m) DDC2B Note: 1920 x 1200 (Reduced blanking) only supported by KA7175, KA7176, and KA7177 | | Scan Interval | 1 to 255 Seconds | | I/P Rating | 100 to 240 VAC; 50 to 60 Hz; 1.0 A | | Power Consumption | Single Power: 120 V/15 W; 230 V/15 W
Dual Power: 120 V/16 W; 230 V/ 17 W | | Environment | Operating Temperature: 32 to 122°F (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 80% RH, Non-condensing | | Enclosure | Metal | | Dimensions (L x W x H) | 17.3 x 11.3 x 1.7" (43.8 x 28.7 x 4.4 cm) | | Weight | 7.9 lb (3.6 kg) | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 20.2 x 13.7 x 6.4" |
