Product description Multi-Monitors: Maximizing Multitasking Read More - ATEN's KN8 - KVM over IP ⿿ Series

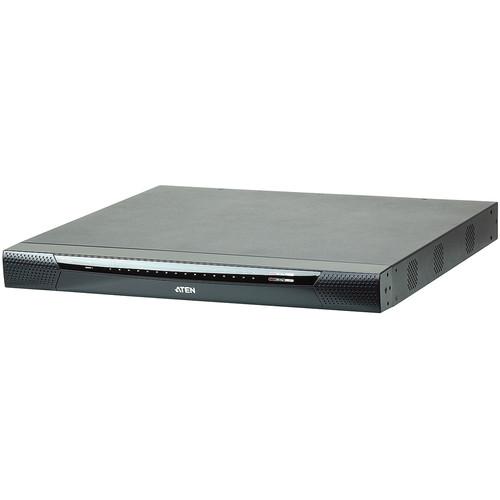

The KN8132V 32-Port 8 Remote & 1 Local User CAT5 KVM Over IP Switch from Aten features superior video quality (HD resolution of 1920 x 1200), FIPS 140-2 with level-1 security standards and virtual media transmissions at twice the speed. The switch provides local console and remote-over-IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. Switch - Advanced FPGA graphics processor - with an HD resolution of 1920 x 1200
- Extreme virtual media speed - 2x faster virtual media transmission speed
- High-grade security - supports FIPS 140-2 level-1 security standards
- With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers
- KN switch can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world - allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines.
- With powerful features such as Power Association - KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches' user interface.
- Additional features include a Message Board, Panel Array Mode, Mouse DynaSync and the Adapter ID
Hardware - Self-diagnostics to help resolve connection problems
- Dual-Gigabit Ethernet Network Interface Controllers (NIC) provide complete and reliable network access
- Integrated dual power supplies provide reliable power redundancy
Management - Customizable critical system-event notification via SMTP email, SNMP trap, and Syslog support
- SNMP agent supports standard SNMP for device monitoring
- PPP mode (modem) dial-in/dial-out support for out-of-band and low-bandwidth operation
- Port Share Mode allows multiple users to simultaneously gain access to a server
- Adapter ID automatically assigns and retains unique server names and settings for each attached server
- Manage browser-access methods (browser, http, https)
- Event logging and Windows-based Log Server support
- Power Association enables the switch's KVM ports to be associated with ATEN PDU power outlets for remote power management of the servers from the switch's interface
Easy-to-Use Interface - Browser-based and AP GUIs offer a unified multi-language interface increasing work productivity
- Browser-based UI allows administrative tasks to be completed without pre-installing Java
- Launch multiple Virtual Remote Desktops and control multiple servers from one login session
- Keyboard / mouse broadcast - keyboard and mouse inputs can be duplicated on all the attached servers
Advanced Security - Secure login from browser with SSL 128-bit data encryption and RSA 2048-bit certificates
- Choose between 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random encryption for secure keyboard / mouse, video, and virtual media data encryption
- Automated CSR creation utility and third-party certificate authentication (CA)
- IP/MAC address filter for enhanced network-access security protection
Virtual Media - Virtual media enables file applications, OS patching, software installation, and diagnostic testing
- Works with USB-enabled servers in operating system and BIOS level
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, and ISO images
- Supports Smart Card/CAC Reader
Virtual Remote Desktop - Adjustable video quality to deliver optimal video-transfer speed and minimize network bandwidth
- Full screen or scalable video display
UPC: 672792403316 In the Box ATEN KN8132V 32-Port 8 Remote & 1 Local User CAT5 KVM Over IP Switch 2 x SA0142 Serial Adapter (RJ45-F to DB9-M; DTE to DCE) 2 x Lok-U-Plug Lok-U-Plug Installation Tool 2 x Power Cord Mounting Kit Foot-Pad Set (4 pieces) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KN8132V 32-Port 8 Remote & 1 Local User CAT5 KVM Over IP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KN8132V Specs | Connection | Direct: 32
Max: 512 (Cascade) | | Sessions | Local: 1
Remote: 8

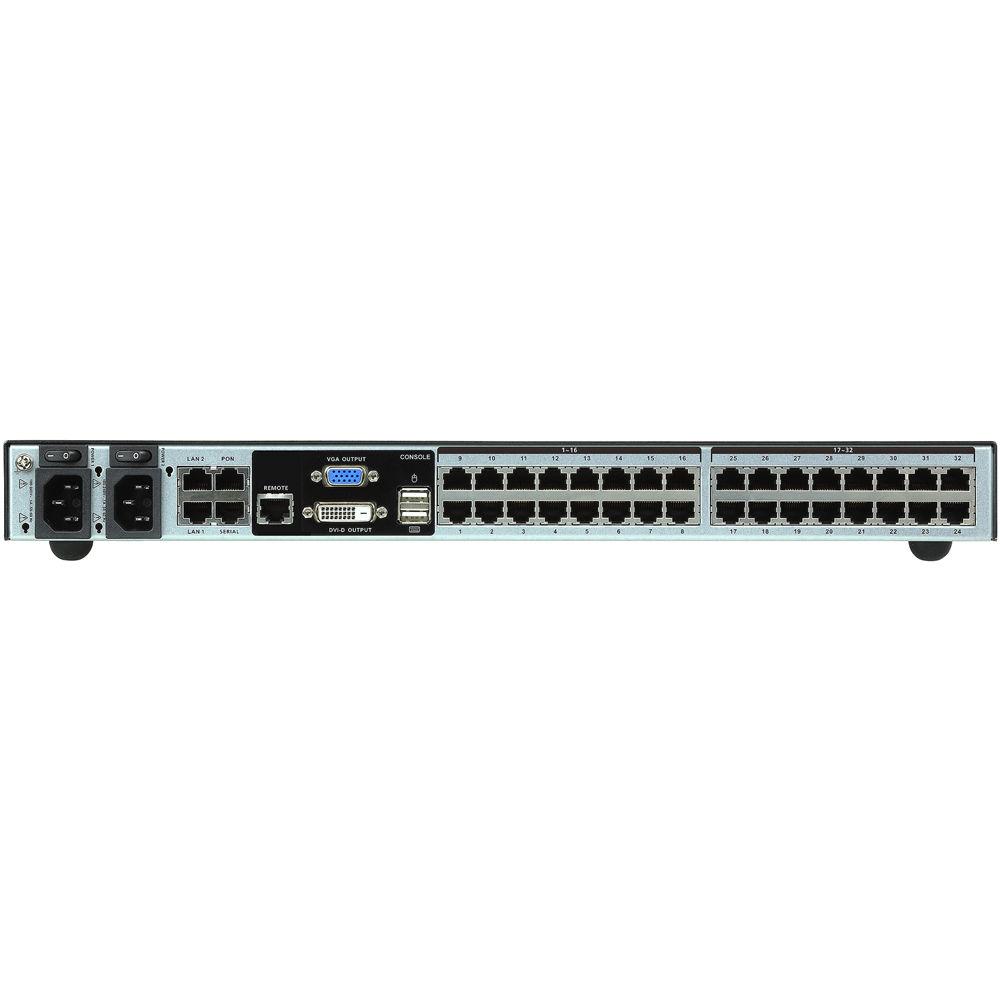

Port-Selection Method: Pushbutton / GUI / Hotkey | | Connectors | KVM Ports: 32 x RJ-45 (F)
Power Inlet: 2 x IEC 60320/C14
LAN: 2 x RJ-45 (F)
PON: 1 x RJ-45 (F)
Serial / RS-232: 1 x RJ-45 (F)
USB / Virtual Media: 3 x USB (F)
Laptop USB Console: 1 x Mini-USB (F)
Audio: 2 x Audio Jack (F)
Keyboard / Mouse: PS/2; USB | | Maximum Video Resolution | Local: 1920 x 1200 @ 60 Hz, Remote: 1920 x 1200 @ 60 Hz | | Power Input | 100-240 VAC, 1 A, 50-60 Hz | | Power Consumption | Single Power: 110 V / 72.6 W; 220 V / 71.7 W
Dual Power: 110 V / 28.3 W; 220 V / 28 W | | Operating Temperature | 32 to 104˚F (0 to 40˚C) | | Storage Temperature | -4 to 140˚F (-20 to 60˚C) | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 17.07 x 16.22 x 1.73" (43.36 x 41.21 x 4.40 cm) | | Weight | 12.7 lb lb (5.8 kg) |
