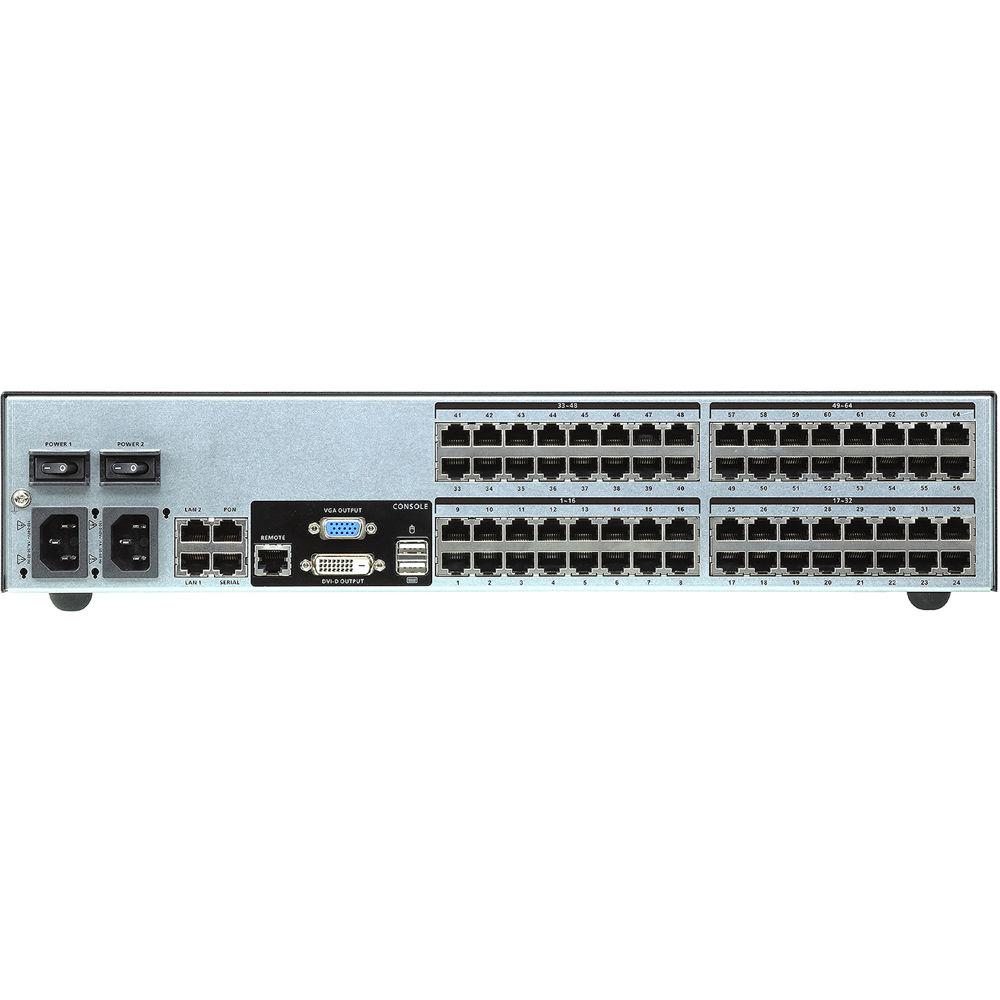

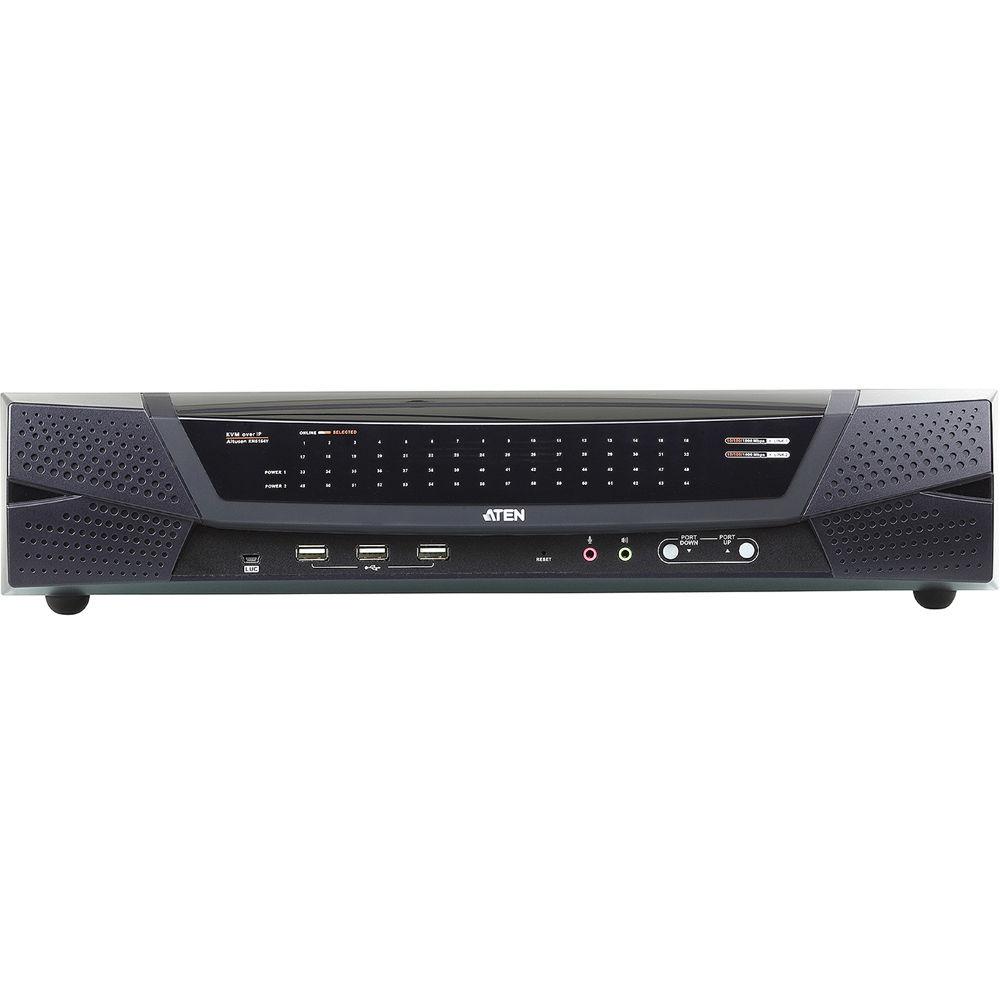

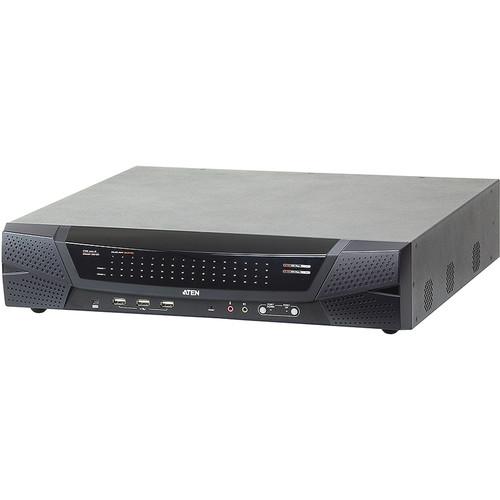

User Manual for ATEN KN8164V 64-Port 8 Remote & 1 Local User CAT5 KVM Over IP Switch

• Product category: KVM Switches ATEN
• Brand: ATEN
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ATEN KVM Switches

Product description

• ATEN's KN8 - KVM over IP ⿿ Series

Switch

• Advanced FPGA graphics processor - with an HD resolution of 1920 x 1200

• Extreme virtual media speed - 2x faster virtual media transmission speed

• High-grade security - supports FIPS 140-2 level-1 security standards

• With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers

• KN switch can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world - allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines.

• With powerful features such as Power Association - KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches' user interface.

• Additional features include a Message Board, Panel Array Mode, Mouse DynaSync and the Adapter ID

Hardware

• Self-diagnostics to help resolve connection problems

• Dual-Gigabit Ethernet Network Interface Controllers (NIC) provide complete and reliable network access

• Integrated dual power supplies provide reliable power redundancy

Management

• Customizable critical system-event notification via SMTP email, SNMP trap, and Syslog support

• SNMP agent supports standard SNMP for device monitoring

• PPP mode (modem) dial-in/dial-out support for out-of-band and low-bandwidth operation

• Port Share Mode allows multiple users to simultaneously gain access to a server

• Adapter ID automatically assigns and retains unique server names and settings for each attached server

• Manage browser-access methods (browser, http, https)

• Event logging and Windows-based Log Server support

• Power Association enables the switch's KVM ports to be associated with ATEN PDU power outlets for remote power management of the servers from the switch's interface

Easy-to-Use Interface

• Browser-based and AP GUIs offer a unified multi-language interface increasing work productivity

• Browser-based UI allows administrative tasks to be completed without pre-installing Java

• Launch multiple Virtual Remote Desktops and control multiple servers from one login session

• Keyboard / mouse broadcast - keyboard and mouse inputs can be duplicated on all the attached servers

Advanced Security

• Secure login from browser with SSL 128-bit data encryption and RSA 2048-bit certificates

• Choose between 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random encryption for secure keyboard / mouse, video, and virtual media data encryption

• Automated CSR creation utility and third-party certificate authentication (CA)

• IP/MAC address filter for enhanced network-access security protection

Virtual Media

• Virtual media enables file applications, OS patching, software installation, and diagnostic testing

• Works with USB-enabled servers in operating system and BIOS level

• Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, and ISO images

• Supports Smart Card/CAC Reader

Virtual Remote Desktop

• Adjustable video quality to deliver optimal video-transfer speed and minimize network bandwidth

• Full screen or scalable video display

• Exit macros support
