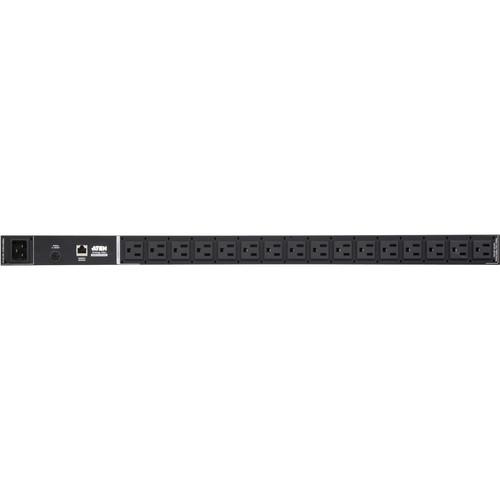

Product description The NEMA type PE1216A 16-Outlet Energy PDU from Aten contains 16 NEMA 5-15R AC outlets. This power distribution unit features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room. Also included on the power strip are one NEMA 5-20P inlet and an RJ-45 female Energy Sensor Port.
The PE1216A Energy PDU can be integrated into an installation with an optionally purchased EC1000 Energy Box. This allows you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via a Web GUI remotely - making your server room efficiently green with minimal effort. - Space saving 0U rack mount design
- Real-time PDU current monitoring when used in conjunction with the EC1000 Energy Box (optional)
UPC: 672792401190 In the Box ATEN PE1216A 16-Outlet Energy PDU (NEMA) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN PE1216A 16-Outlet Energy PDU in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN PE1216A Specs | Power Outlets | Direct: 16 x NEMA 5-15R | | Connectors | Inlet: 1 x NEMA 5-20P
Energy Sensor Port: 1 x RJ-45 | | Nominal Input Power | 100 to 120 V~, 50/60 Hz
20 A (Max), 16 A (UL derated) | | Nominal Output Power | 100 to 120 V~, 50/60 Hz per outlet 15 A (Max)
12 A (UL de-rated)
Total: 20 A (Max), 16 A (UL de-rated) | | Environment | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 80% RH Non-condensing | | Physical Properties | Power Cord Length: 10' (3 m)
Housing: Metal
Dimensions: 28.7 x 1.7 x 1.7" (73.0 x 4.4 x 4.4 cm)
Weight: 2.9 lb (1.31 kg) | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 31.2 x 4.7 x 4.5" |
