User Manual for ATEN PE6208B 8-Outlet 20A 12A Power Distribution Unit Click to enlarge the picture
Contents of the user manual for the ATEN PE6208B 8-Outlet 20A 12A Power
- Product category: Power Strips ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Power Strips
|
User manual for the ATEN PE6208B 8-Outlet 20A 12A Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

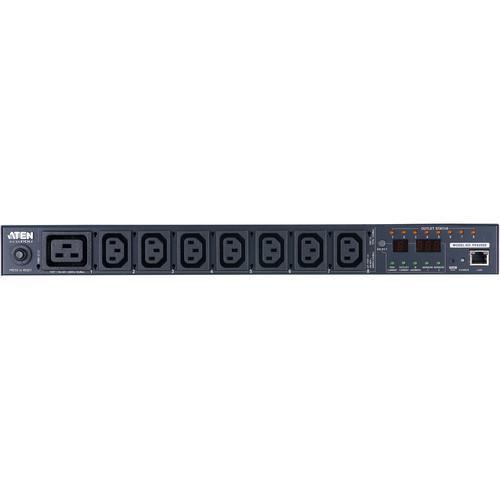

Product description The IEC ATEN PE6208B 8-Outlet 20A/12A Power Distribution Unit is an intelligent eco PDU that contains 7 x IEC 320 C13 IEC AC outlets and 1 x C19 (port 1). It provides secure, centralized, intelligent, power management (On, Off, Power Cycle) for data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.). It also has the ability to monitor the center's health environment via sensors (these sensors are optionally purchasable).
The PE6208B eco PDU offers remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDU at the PDU device level from practically any location, via a TCP/IP connection.
The eco PDU supports any 3rd party v3 SNMP Manager Software and the eco sensors (Energy Management Software). The eco sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly graphical user interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With ALTUSEN eco sensors, the sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.
With its advanced security features and ease of operation, the eco PDU is a very convenient, reliable, and cost effective way to remotely manage power access for multiple computer installations and allocate power resources in an efficient way.
Please note that sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data. Power Distribution - Space-saving 1U rack mount design with rear mounting
- 3-digit 7-segment front panel LED shows current / IP address
- Remote users can monitor outlet status via web pages on their web browsers
- Separate power for the unit's own power and its power outlets
- The user interface is still accessible even when an overload condition trips the device's circuit breaker
Remote Access - Remote power control via TCP/IP and a built-in Ethernet port
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
- eco PDU Power Management software - eco sensors
Operation - Remote power outlet control (On, Off, Power Cycle) by individual outlet
- Power-on sequencing - users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser-based user interface
- Multibrowser support (IE, Firefox, Chrome, Safari)
- RTC support to keep the timer running during times of no power
- Supports up to 8 user and 1 administrator accounts
Management - Power status measurement at the PDU or outlet level
- LED indicators for current and IP address at the PDU device levelReal-time current, voltage, and kWH displayed in a browser-based UI for monitoring at the PDU level
- Current and voltage threshold setting
- Naming support for outlets
- User outlet access assignment on an outlet-by-outlet basis
- Event logging and syslog support
- Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian
Security - Power status measurement at the PDU or device level
- Two-level password security
- Strong security features include password protection and advanced encryption technologies - 128 bit SSL
- Remote authentication support: RADIUS
eco Sensors Energy Management Software - Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Remote real-time power outlet management (power analysis report)
- Remote real-time environment sensor monitoring
- Plotting/monitoring of all PE devices
- Exceed threshold alert through SMTP and syslog
UPC: 672792401008 In the Box ATEN PE6208B 8-Outlet 20A/12A Power Distribution Unit (IEC) Rackmount Kit Power Cord Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN PE6208B 8-Outlet 20A 12A Power Distribution Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN PE6208B Specs | | | Outlets | 7 x IEC-320 C13 | | USB Ports | None | | Ethernet | 1 | | Coaxial | None | | RJ11 | 2 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Load Capacity | 3840 W | | Rated Current | 16 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Cable Length | 9.8' / 3 m | | Material of Construction | Metal | | Cable Management | None | | Dimensions (L x W x H) | 17.0 x 8.6 x 1.7" / 43.2 x 21.9 x 4.4 cm | | Weight | 6.2 lb / 2.8 kg |
