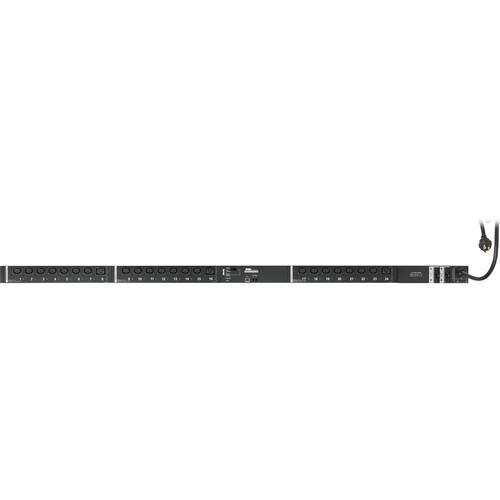

User Manual for ATEN PE6324B eco PDU Power Distribution Unit Click to enlarge the picture
Contents of the user manual for the ATEN PE6324B eco PDU Power Distribution
- Product category: Power Strips ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Power Strips
|
User manual for the ATEN PE6324B eco PDU Power Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The PE6324B eco PDU FROM ATEN is a green energy power distribution unit designed to increase the efficiency of data center power usage. The NRGence eco PDU is an intelligent PDU that contains 24 NEMA AC outlets. It provides the ability to monitor the center's health environment via optionally purchased sensors *.
The NRGence eco PDU offers real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, at the Bank level, from practically any location via a TCP/IP connection. It also offers comprehensive power analysis reports - providing precise measurements of current, voltage, power and watt-hour in a real-time Display. LEDs helpfully indicate the status of many functions, and the 6324B is outfitted with 24 orange LEDs indicating the status of each outlet.
The PE6324B supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface (GUI) that allows you to configure a PDU device and monitor power status of the equipment connected to it.
With advanced security features and ease of operation, the eco PDU is engineered to be a convenient, reliable, and cost effective way to remotely monitor power status for multiple computer installations and allocate power resources in an efficient way.
*A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Power Distribution - Space saving 0U rack mount design with rear mounting
- 3 x 7-segment front panel LED shows Current / IP Address for Bank
- Remote users can monitor Bank status via web pages on their browsers
- Separate power for the unit´s own power and its power outlets - the user interface is still accessible even when an overload condition trips the devices´ circuit breaker
Remote Access - Remote power control via TCP/IP and a built in 10/100 Ethernet port
- Network Protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping
- eco PDU Power Management software - eco Sensors
- Supports SNMP Manager V1, V2 & V3
Operation - Easy setup and operation via a browser-based user interface
- Multibrowser support (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
- RTC support to keep the timer running during times of no power
- Up to 8 user accounts and 1 administrator account
Management - Power status measurement at the PDU/Bank level
- LED indicators for current and IP address at the Bank level
- Real-time aggregate current, voltage, and power and power dissipation displayed in a browser-based UI for monitoring at the Bank level
- Environment monitoring - supports external temperature / humidity / Differential Pressure sensors for rack environment monitoring
- Current and voltage threshold setting
- Naming support for outlets
- Event logging and syslog support
- Multilanguage support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian
Security - Two-level password security
- Strong security features include strong password protection and advanced encryption technologies - 128-bit SSL
- Remote authentication support: RADIUS
eco Sensors Energy Management Software - Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Remote real-time environment sensor monitoring
- Plotting/Monitoring of all PE devices
- Exceed threshold alert through SMTP and System log
UPC: 672792401275 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN PE6324B eco PDU Power Distribution Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN PE6324B Specs | | | Wall Plug Type | NEMA L6-30P | | Outlets | 21 x IEC-320 C13
3 x IEC-320 C19 | | USB Ports | None | | Ethernet | 1 | | Coaxial | None | | RJ11 | 2 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Load Capacity | 6200 W | | Rated Current | 30 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Cable Length | 5.2' / 1.6 m | | Material of Construction | Metal | | Cable Management | None | | Dimensions (L x W x H) | 5.8 x 0.2 x 0.1' / 177.5 x 6.6 x 4.4 cm | | Weight | 13.9 lb / 6.3 kg |
