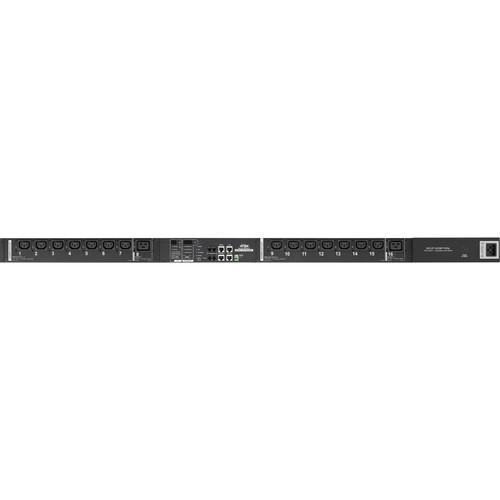

User Manual for ATEN PE8216B eco PDU with Outlet Monitoring Click to enlarge the picture
Contents of the user manual for the ATEN PE8216B eco PDU with Outlet
- Product category: Power Strips ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Power Strips
|
User manual for the ATEN PE8216B eco PDU with Outlet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The PE8216B eco PDU with Outlet Monitoring from ATEN is a 0U, 20A maximum output, 200 to 240V, multi-outlet power distribution unit, designed to increase the efficiency of data center usage with a focus on green-energy power usage. The PE8216B has 14 x C13 and 2 x C19 outlets, and features NRGence´s proactive overload protection, which will automatically power off the last outlet that caused a current overload.
NRGence eco PDUs are engineered to provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), and is designed with the ability to monitor the center´s health environment via sensors.
The PE8216B offers remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDU bank and outlet, from practically any location via a TCP/IP connection.
The power status of each outlet can be set individually, allowing users to switch each device On/Off. The eco PDU also offers comprehensive power analysis reports, which can separate departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display. Installation entails plugging cables into their appropriate ports and then applying the user-friendly, browser-based configuration and management. Since the eco PDU firmware is upgradeable over the internet, you can stay current with the latest functionality improvements simply by downloading updates as they become available.
Additionally, this NRGence eco PDU supports any 3rd-party V3 SNMP Manager Software and NRGence eco Sensors (eco PDU Manager Software). The eco Sensors PDU provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly graphical user interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
With its advanced security features and ease of operation, the PE8216B eco PDU is a convenient, reliable, and effective way to remotely manage power access for multiple computer installations and allocate power resources in an efficient, green-energy way. - Connections
- Supports:
10/100Mbit Ethernet Interface
TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1,V2&V3
2-level account/password security, IP/MAC filter, 128 bit SSL, RADIOUS
eco Sensors, Browser (IE, Firefox, Chrome, Safari) - Metering
- PDU and outlet level power metering and monitoring
Environment monitoring - supports external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
Support door sensor - Outlet Switch Control
- Remote power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
Outlet group support at the PDU
Supports multiple power control methods - Wake on LAN, System After AC Back, Kill the Power
Power-On sequencing - users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order
Proactive overload protection(POP) - automatically powers off the last outlet that caused the current overload UPC: 672792401398 In the Box ATEN PE8216B eco PDU (14 x C13 and 2 x C19) with Outlet Monitoring Power Cord Mounting Kit CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN PE8216B eco PDU with Outlet Monitoring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN PE8216B Specs | | | Nominal Input Voltage | 100 to 240 VAC | | Maximum Input Current | 20 A Maximum ; 16 A (UL de-rated) | | Input Frequency | 50 to 60 Hz | | Input Connection Type | 1 x NEMA 6-20P | | Input Power | 4160 VA (Max) 3328 VA (UL de-rated) | | Outlet Type | Total: 16 (14 x C13 and 2 x C19)
Bank 1-1: Outlet 1 to 8 ; 7 x C13 + 1 x C19
Bank 1-2: Outlet 9 to 16 ; 7 x C13 + 1 x C19 | | Nominal Output Voltage | 100 to 240 VAC | | Maximum Output Current | Per Outlet: C13: 15 A (Max), 12 A (UL de-rated) C19: 20 A (Max), 16 A (UL de-rated)
Per Bank: 20 A (Max), 16 A (UL de-rated)
Total: 20 A (Max) 16 A (UL de-rated) | | Breakers | 1 x 20 A non-fuse | | Metering | Per Outlet Level Current, Voltage, VA, PF, KWh Monitoring | | Outlet Switch | Bank 1-1: Yes
Bank 1-2: Yes | | Outlet Switching | 16 / 16 | | Environment Sensory Port | 4 | | Metering | Accuracy:
Voltage Range: 100 ~ 250 VAC +/-1%
Power Range: 100 ~ 5000 W +/- 2%
Current Range: 0.1 ~ 1 A +/- 0.1 A, 1 ~ 20 A +/-1% | | | | Verification | EMC: FCC Part 15 Class A
Safety: TUV-CB | | | | Temperature | Operating / Storage: 32 to 122 °F (0 to 50°C) | | Humidity | Operating & Storage: 0 to 80% RH, non-condensing | | | | Power Cord Length | 5.2' (1.6 m) | | Dimensions (H x W x D) | 52.2 x 2.6 x 1.7" (132.5 x 6.6 x 4.4 cm) | | Weight | 8.6 lb (3.9 kg) |
