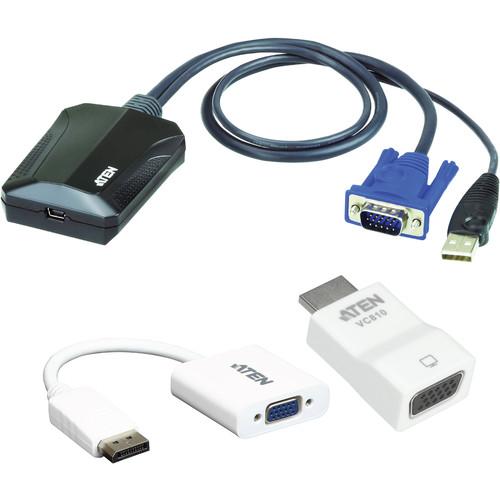

Product description Multi-Monitors: Maximizing Multitasking Read More zyawzaxcxbfqwxdybszrsvexrurruturecbyrx This Portable Laptop USB Console Adapter Kit from Aten combines a CV211 Portable Laptop USB Console Crash Cart Adapter with a VC925 DisplayPort Male to HDB-15 Female Adapter and a VC810 HDMI to VGA Converter.
The CV211 is a small adapter that provides a direct laptop-to-computer connection with instant desktop access, facilitating system upgrades and repairs. The adapter connects to a laptop via an included USB cable and has integrated VGA and USB 2.0 Type-A cables for the host system. It offers BIOS-level access, bi-directional file transfers, hotkey macros, video recording, and onscreen capturing. In addition, it supports resolutions of up to 1920 x 1200 and draws power from a bus-powered USB port.
The included DisplayPort-to-VGA and HDMI-to-VGA adapters expand the functionality of the Laptop USB Console Crash Cart Adapter by allowing you to use it with DisplayPort and HDMI host systems. - Portable Laptop USB Console Crash Cart Adapter The ATEN CV211 Portable Laptop USB Console Crash Cart Adapter lets you directly connect your laptop to servers, desktops, kiosks, ATMs, and other systems, so you can perform system upgrades or repairs. The adapter connects to a laptop via an included USB cable and has integrated VGA and USB 2.0 Type-A cables for the host system. The adapter offers BIOS-level access, bi-directional file transfers, hotkey macros, video recording, and onscreen capturing. In addition, it supports resolutions of up to 1920 x 1200 and draws power from a bus-powered USB port.
For easy operation and quick remote access, the adapter comes with useful functions that provide file applications, OS patching, diagnostic testing, and software installations through an intuitive graphical user interface (GUI). To view the target computer's desktop without using a scroll bar, you can automatically or manually resize the GUI console's window to the resolution of the remote computer. There's also a built-in cable clip for managing cables while in-use or during transport. Direct Laptop-to-Computer Desktop Access - Transforms a laptop into a mobile console for servers, computers, kiosks, and ATMs
- Virtual media enables file applications, OS patching, diagnostic testing, and software installation
- Upgradable firmware keeps the unit up to date
- Desktop scaling—user can adjust the size/resolution of the Remote desktop window by size or ratio
Server and Computer Troubleshooting - BIOS-level access provides total control of a server during hardware and operating system failures
- Bi-directional file transfers between a laptop and target computer
- Video recording and image capturing features allow you to save a record of remote operations for future training and troubleshooting
- Mouse DynaSync—automatically synchronizes the laptop and target computer's mouse movements
- On-screen keyboard with multi-language support
- Supports hotkey macros—define keystrokes that execute specific actions on the target computer to complete tasks efficiently and accurately
Ease of Use - Plug-and-Play—no software installation required on either side
- Toolbar helps users easily operate all the functions from a single-click control panel within the remote view window
- Adjustable video settings for optimal picture and performance
- USB bus-powered design with hot-plugging support
Convenience - Integrated VGA and USB keyboard/mouse cables
- Cable clip for managing cables
- Supports analog video resolutions of up to 1920 x 1200 @ 60 Hz
UPC: 672792403736 - DisplayPort Male to HDB-15 Female Adapter Provided by third party: VC925
DisplayPort to VGA Adapter The VC925 is a DisplayPort to VGA adapter, allowing you to connect your device's DisplayPort output to the VGA input of a TV or other display.
The VC925 provide a cost-effective yet high performance signal conversion solution. This adapter is therefore perfect for computers and notebooks, supporting display resolutions of up to WUXGA (1920x1200@60Hz). UPC: 672792006746 - VC810 HDMI to VGA Converter The ATEN VC810 HDMI to VGA Converter allows you to connect an HDMI source (e.g. laptop, PC, ultrabook, etc) directly to a VGA display, such as a projector or LCD monitor, without upgrading to an HDMI-compatible display at extra cost. It supports frequently used video resolutions of up to 1920 x 1200. The VC810 is compact and convenient to install with no software needed - simply make the hardware connections. In addition, this plug-n-play converter does not require an external power source, which is ideal for environments where briefings or presentations take place, ensuring great portability, installation simplicity, and manageability.
-
- Converts HDMI signals to VGA output
- Superior video quality - up to 1920 x 1200, 1080p
- Supports wide screen formats
- Non-powered
UPC: 672792005411 In the Box Bundle Items Portable Laptop USB Console Crash Cart Adapter - USB Type-A to USB Mini-B Cable
DisplayPort Male to HDB-15 Female Adapter VC810 HDMI to VGA Converter Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN Portable Laptop USB Console Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Portable Laptop USB Console Crash Cart Adapter
| Ports | 1 x USB Mini Type-B female | | Connectors | VGA male (blue)
1 x USB Type-A male | | LED | 1 (blue) | | Power Consumption | 5 VDC, 2.35 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% | | Material of Construction | Plastic | | Dimension (L x W x H) | 2.8 x 2.1 x 1.2" / 7.1 x 5.3 x 3.0 cm | | Weight | 0.3 lb / 0.1 kg | | | | Box Dimensions (LxWxH) | 6.25 x 4.7 x 2.35" | - DisplayPort Male to HDB-15 Female Adapter
| | | Cable Type | DisplayPort/VGA | | Connector On First End | 1 x DisplayPort Male DisplayPort 1.1a Digital Audio/Video | | Connector On Second End | 1 x 15-pin HD-15 Female VGA | | Device Supported | Notebook
TV
Video Device | | Supported Resolution | 1920 x 1200 | | | | Color | White | | Weight (Approximate) | 1.41 oz | | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE | - VC810 HDMI to VGA Converter
| | | Connector 1 | HDMI Male | | Connector 2 | VGA Female | | | | Maximum Resolution Support | 1920 x 1200 | | | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 40 to 80% | | | | Material | Plastic | | Dimensions | 1.8 x 0.9 x 0.6" / 4.5 x 2.3 x 1.5 cm | | Weight | 0.3 oz / 9.1 g | | | | Box Dimensions (LxWxH) | 6.9 x 4.4 x 0.2" |
