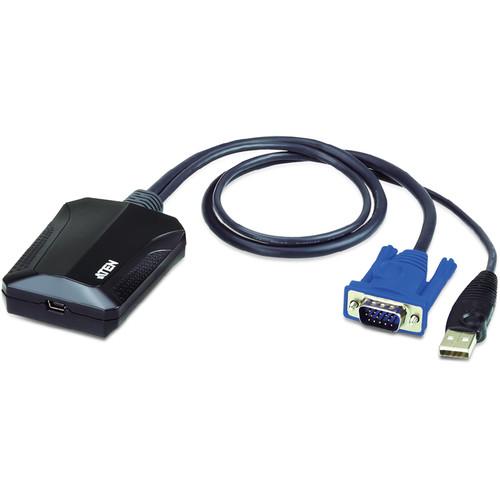

Product description - The World's Smallest Laptop USB Console Adapter - ATEN CV211

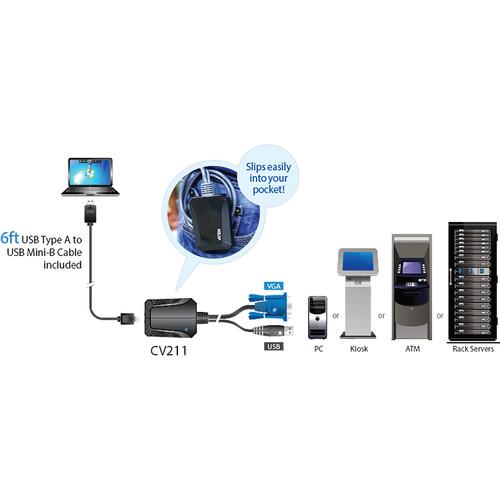

The ATEN CV211 Portable Laptop USB Console Crash Cart Adapter lets you directly connect your laptop to servers, desktops, kiosks, ATMs, and other systems, so you can perform system upgrades or repairs. The adapter connects to a laptop via an included USB cable and has integrated VGA and USB 2.0 Type-A cables for the host system. The adapter offers BIOS-level access, bi-directional file transfers, hotkey macros, video recording, and onscreen capturing. In addition, it supports resolutions of up to 1920 x 1200 and draws power from a bus-powered USB port.
For easy operation and quick remote access, the adapter comes with useful functions that provide file applications, OS patching, diagnostic testing, and software installations through an intuitive graphical user interface (GUI). To view the target computer's desktop without using a scroll bar, you can automatically or manually resize the GUI console's window to the resolution of the remote computer. There's also a built-in cable clip for managing cables while in-use or during transport. Direct Laptop-to-Computer Desktop Access - Transforms a laptop into a mobile console for servers, computers, kiosks, and ATMs
- Virtual media enables file applications, OS patching, diagnostic testing, and software installation
- Upgradable firmware keeps the unit up to date
- Desktop scaling—user can adjust the size/resolution of the Remote desktop window by size or ratio
Server and Computer Troubleshooting - BIOS-level access provides total control of a server during hardware and operating system failures
- Bi-directional file transfers between a laptop and target computer
- Video recording and image capturing features allow you to save a record of remote operations for future training and troubleshooting
- Mouse DynaSync—automatically synchronizes the laptop and target computer's mouse movements
- On-screen keyboard with multi-language support
- Supports hotkey macros—define keystrokes that execute specific actions on the target computer to complete tasks efficiently and accurately
Ease of Use - Plug-and-Play—no software installation required on either side
- Toolbar helps users easily operate all the functions from a single-click control panel within the remote view window
- Adjustable video settings for optimal picture and performance
- USB bus-powered design with hot-plugging support
Convenience - Integrated VGA and USB keyboard/mouse cables
- Cable clip for managing cables
- Supports analog video resolutions of up to 1920 x 1200 @ 60 Hz
UPC: 672792403736 In the Box ATEN Portable Laptop USB Console Crash Cart Adapter USB Type-A to USB Mini-B Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN Portable Laptop USB Console Crash Cart Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CV211 Specs | Ports | 1 x USB Mini Type-B female | | Connectors | VGA male (blue)
1 x USB Type-A male | | LED | 1 (blue) | | Power Consumption | 5 VDC, 2.35 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% | | Material of Construction | Plastic | | Dimension (L x W x H) | 2.8 x 2.1 x 1.2" / 7.1 x 5.3 x 3.0 cm | | Weight | 0.3 lb / 0.1 kg | | | | Package Weight | 0.54 lb | | Box Dimensions (LxWxH) | 6.25 x 4.7 x 2.35" |
