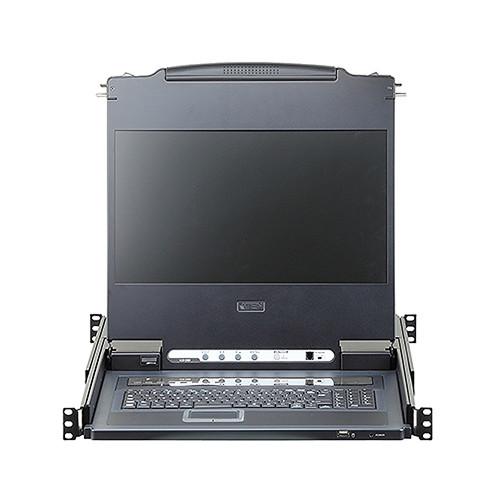

User Manual for ATEN Single Rail 8-Port DVI Full HD LCD KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN Single Rail 8-Port DVI Full
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
 |
User manual for the ATEN Single Rail 8-Port DVI Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description - Key Features
-
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with a 17.3" LED-backlit LCD monitor in a single rail housing
- Cascadable up to one levels - control up to 64 computers
- Supports USB external console
- Front panel USB port allows each computer to access USB peripherals
- Multiplatform support
- Superior video quality - up to 1920 x 1080 @ 60 Hz
- Two level access security - administrator, user
- Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc.
- Standard 105-key keyboard
UPC: 672792006845 In the Box ATEN Single Rail 8-Port DVI Full HD LCD KVM Switch ATEN CL6708MW DVI / USB cable Rack mounting kit Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN Single Rail 8-Port DVI Full HD LCD KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

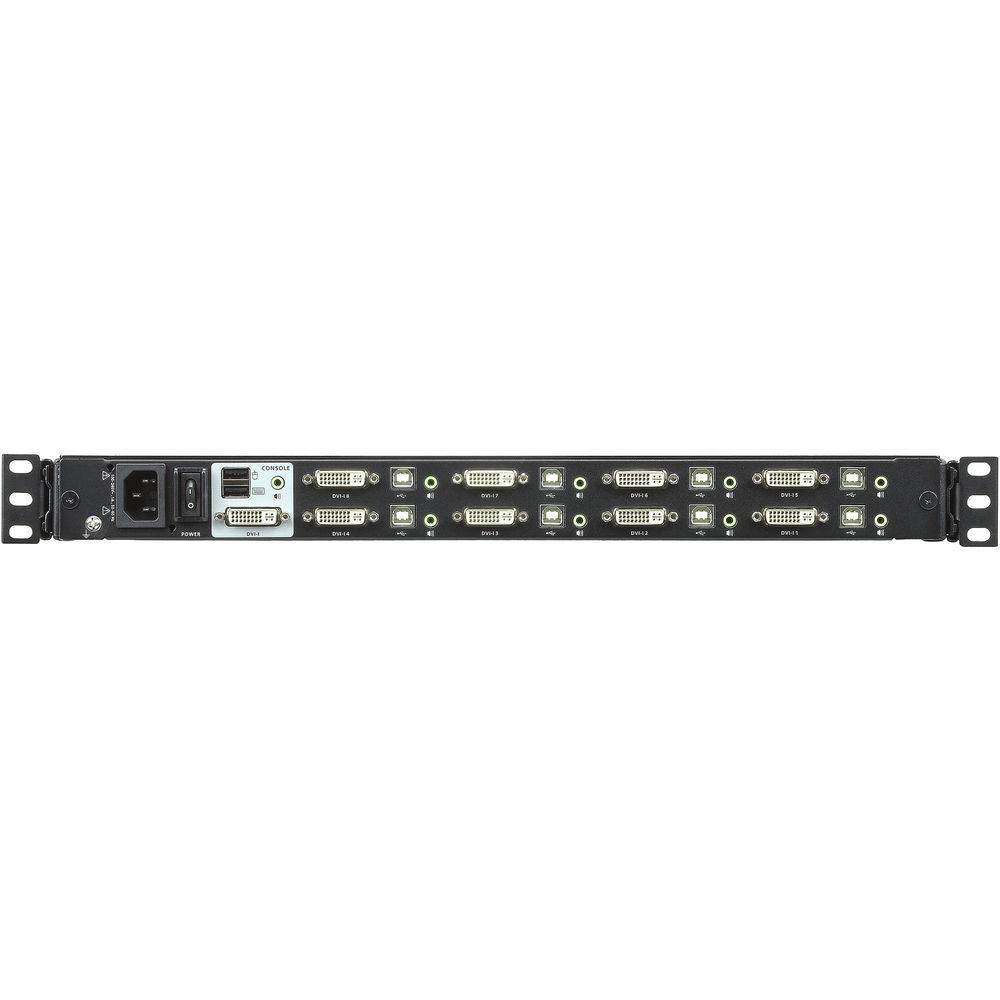

Technical parametersATEN CL6708MW Specs | | | Display Type | KVM console / TFT active matrix | | Diagonal Size | 17.3" | | Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz | | Backlight Technology | LED backlight | | Dimensions (WxDxH) | 18.9 in x 23.2 in x 1.7 in | | Height (Rack Units) | 1U | | | | Type | KVM switch - 8 ports | | Keyboard / Mouse Interface | USB | | Max Resolution | 1920 x 1080 @ 60 Hz | | | | Interfaces | 8 x USB (Type B)
2 x USB (Type A)
8 x DVI-I
8 x audio line-in
DVI-I output
Audio line-out | | | | Features | Firmware upgradable, metal housing | | Cables Included | 1 x DVI / USB cable | | Rack Mounting Kit | Included | | Compliant Standards | DDC-2B | | | | Min Operating Temperature | 32
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
