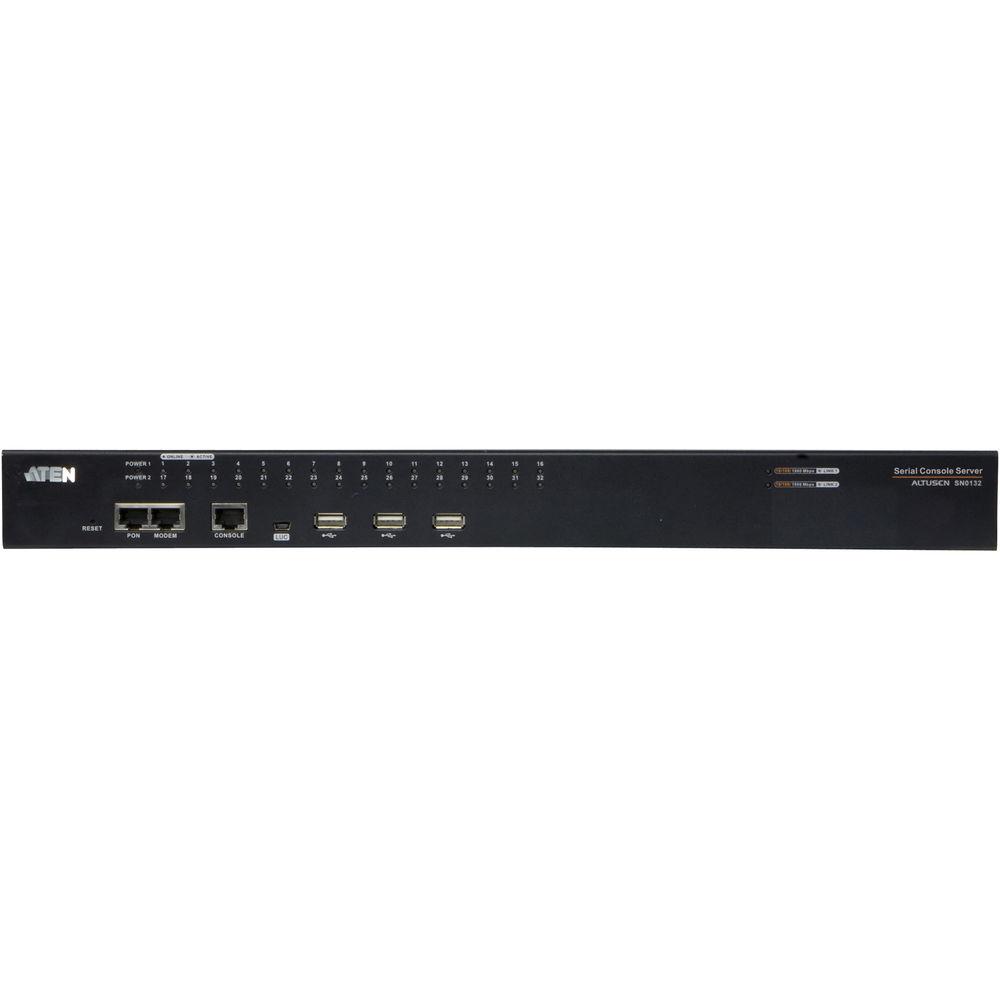

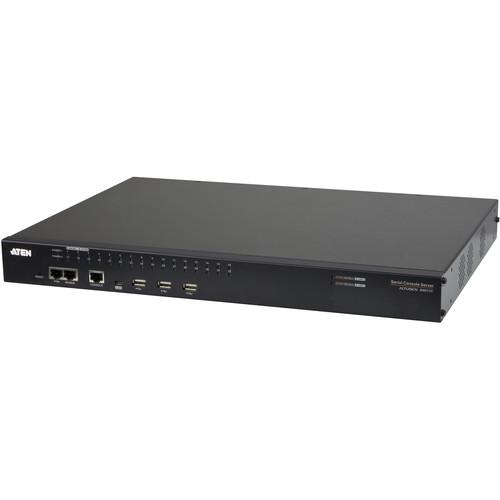

User Manual for ATEN SN0132 32-Port Serial Console Server Click to enlarge the picture
Contents of the user manual for the ATEN SN0132 32-Port Serial Console Server
- Product category: Serial RS-422/RS-232 Cards ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Serial RS-422/RS-232 Cards
 |
User manual for the ATEN SN0132 32-Port Serial Console Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The SN0132 32-Port Serial Console Server from ATEN integrates updated features and technologies with secure enterprise communications. This serial console server offers both in-band and out-of-band remote serial console access to servers and network devices, via a direct Telnet/SSH client or an applet viewer. The SN0132 works in tandem with the ALTUSEN Power Over the NET remote power management system. Both can be managed with CC2000 management software to provide centralized data center management and integrated power management. With its comprehensive features, this serial console server helps maximize IT productivity, provide scalability, and reduce operational costs.
The serial console server is used to connect serial devices to the Ethernet network to meet the needs of demanding applications in industrial control, data acquisition, environment monitoring, and remote facility and equipment management. It offers versatile operation modes including Real COM Port, TCP Server/Client, UDP Server/Client, Serial Tunnel, and Virtual Modem. It helps transform the capabilities of legacy serial devices to take advantage of the TCP/IP network to allow remote access, configuration, and management of this serial device from almost anywhere in the world over the internet.
The SN0132 Serial Console Server is a secure remote access and control solution. Access rights and privilege control can be applied to individual ports, while consolidated authentication simplifies password management. Data encryption is provided and logging and alerting helps speed resolution of issues and mitigates risk. Additionally, enhanced security functions ensure the compliance of internal security mandates. The ease of use, accessibility, and manageability of this console server enables a quick response to changing demands and assists users in meeting business goals. - System Accessibility and Availability
- Secure in-band and out-of-band network access to serial consoles
In-band access of Ethernet
Browser access with an intuitive GUI
Terminal-based access with a menu-driven UI
Out-of-band access of dial-up modem
Modem dial-in/dial-back/dial-out
Front access USB ports for USB storage or for USB-based PC cards
Laptop USB Console (LUC) port for extra local console access via laptop computer
Dual Ethernet ports for failover or for dual IP addresses access
Dual power supply - Serial Console Management
- Convenient and simple access via browser or Telnet/SSH client
Port access via Telnet/SSH client and third-party client such as PuTTY
Direct port access from Telnet client - bypassing login to SN0116
Convenient port access via the Applet Serial Viewer from SN0116 Web GUI
Selectable Telnet or SSH for the serial viewer
Selectable ActiveX or Java for the serial viewer
Comprehensive viewer function - Copy/paste, logging, data import, Macro, broadcast and Message Board
Sun Solaris ready - Sun "break-safe"
Alert String
Command filter - Administrators can restrict users to execute only predefined commands*
Data buffering
Multiple users simultaneously access to the same port - up to 16 connections per port
Selectable mode for multiple simultaneous access - Exclusive/Occupy/Share mode
Integrated with Power Over the NET product for port and power outlet association - Security
- SSH and SSL support
Private certificate support - SN0132 support CA certificate
Configurable user permissions for port access and control
Configurable group permission for port access and control
Local and remote authentication and logging
SN0132 support RADIUS, TACACS+, LDAP/AD, and Kerberos
IP filtering and MAC filtering - System Management
- System configuration via Web browser of HTTP/HTTPS, Telnet/SSH client and local console
System log and event logging
Comprehensive logging and event notification
ATEN Log server and Syslog server
SNMP agent
SN0132 support notification of SMTP email and SNMP Trap, and SMS (with additional mobile device)
Backup/restore system configuration
Firmware upgradeable
Multi-browser support such as Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, and Netscape
Customizable global time zone
NTP for time server synchronization
DHCP for dynamic IP address assignment
IPv6 support
Integrated with CC2000 for data center centralized management - Serial Device Management
- Versatile serial operating modes - SN0132 support Real COM, TCP Server, TCP Client, UDP, Serial Tunnel and Virtual Modem
128-bit/256-bit SSL encryption for Real COM, TCP Server, TCP Client, Serial Tunnel and Virtual Modem
Multiple simultaneous connections to the same port - up to 16 connections per port
Real COM driver for Windows 2000/XP/Vista/7 and Windows Server 2003/2008
Real TTY driver for Linux
Fixed TTY driver for UNIX Language - Web-based GUI multi-language - available for Japanese, Korean, German, Russian, Simplified Chinese and Traditional Chinese
UPC: 672792401770 In the Box ATEN SN0132 32-Port Serial Console Server SA0141 Serial Adapter (RJ45-F to DB9-F; DTE to DTE) SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE) SA0150 Serial Adapter (RJ45-F to DB9-M; PN0108 PON IN) Laptop USB Console Cable 2 x Power Cords Mounting Kit Foot Pad Set (4 x Pieces) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN SN0132 32-Port Serial Console Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

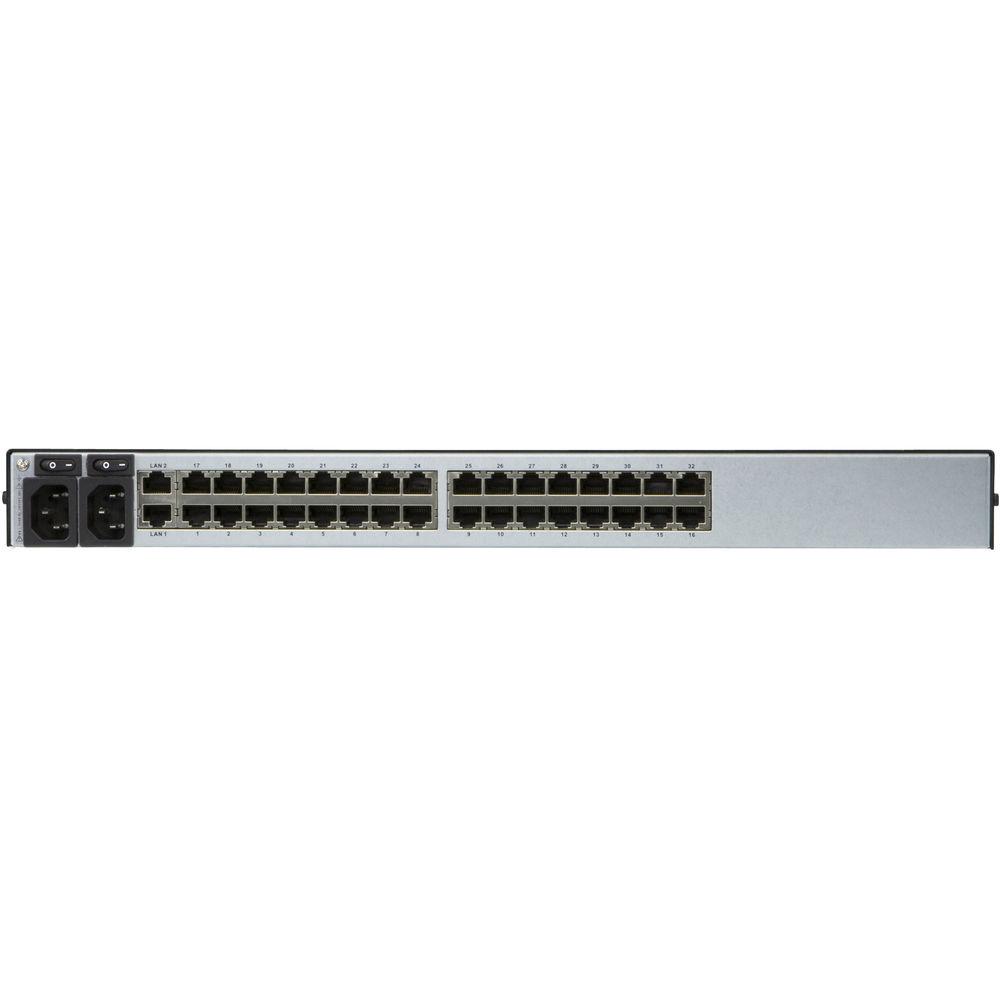

Technical parametersATEN SN0132 Specs | Number of Ports | 32 | | Connectors | Serial: 32 x RJ-45 female
LAN: 2 x RJ-45 female
Power: 2 x 3-prong AC socket
Local Console: 1 x RJ-45 female
Modem: 1 x RJ-45 female
PON: 1 x RJ-45 female
Laptop USB Console: 1 x Mini USB
USB: 3 x USB Type A female | | Switches | Power: 1 x Rocker switch
Reset: 1 x Recessed pushbutton | | LEDs | Serial: 32 (green)
10/100/1000 Mbps: 2 (red/orange/green)
Power: 2 (blue) | | IP Rating | 100 to 240 VAC; 50/60 Hz; 1.8 A | | Power Consumption | 120 V; 35 W /, 230 V; 37 W | | Temperature | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C) | | Relative Humidity | 0 to 80% (non-condensing) | | Material | Metal | | Dimensions (L x W x H) | 17.26 x 12.90 x 1.73" (43.84 x 32.77 x 4.40 cm) | | Weight | 10.67 lb (4.84 kg) |
