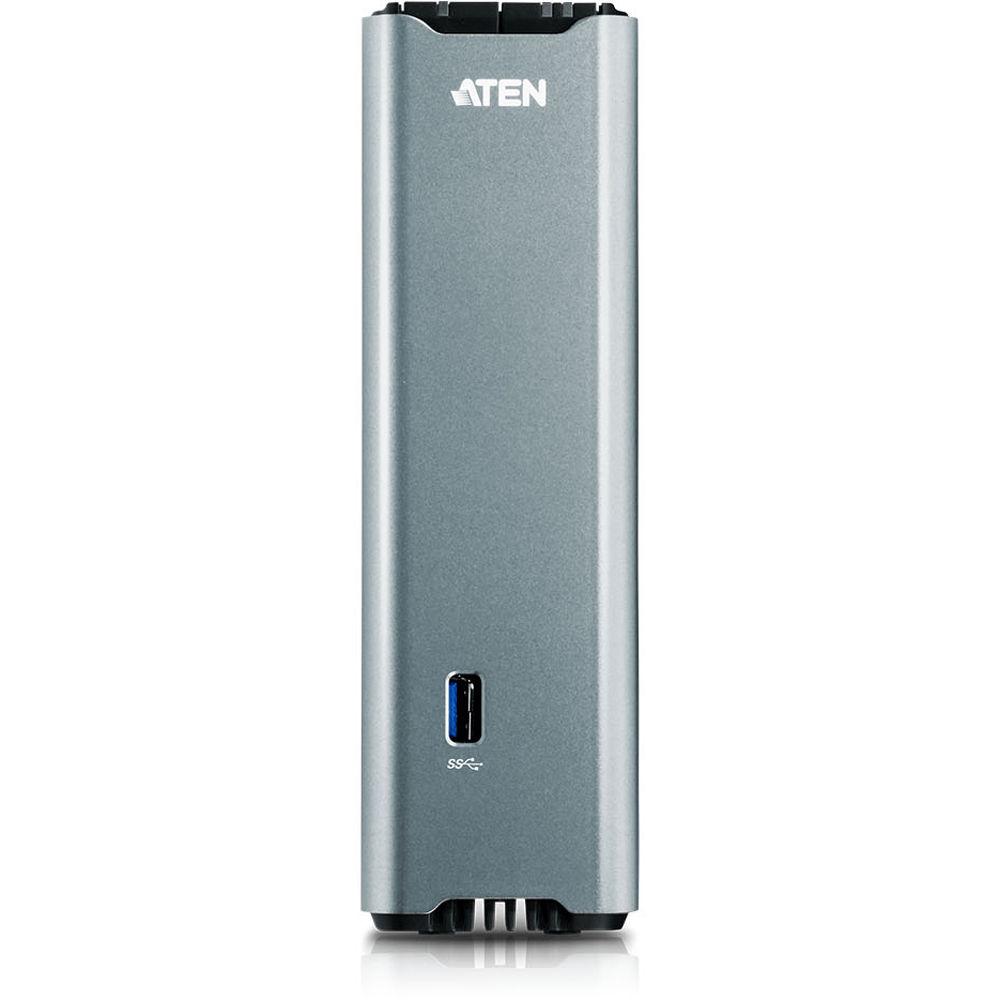

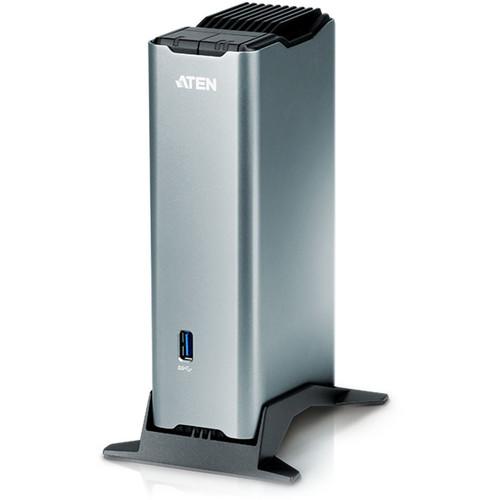

Product description The US7220 2-Port Thunderbolt 2 Sharing Switch from ATEN is a dual-computer docking station with full KVM functionality for your workspace. You can share Thunderbolt devices, a dual-monitor setup and USB peripherals through a single cable, directly to two computers.

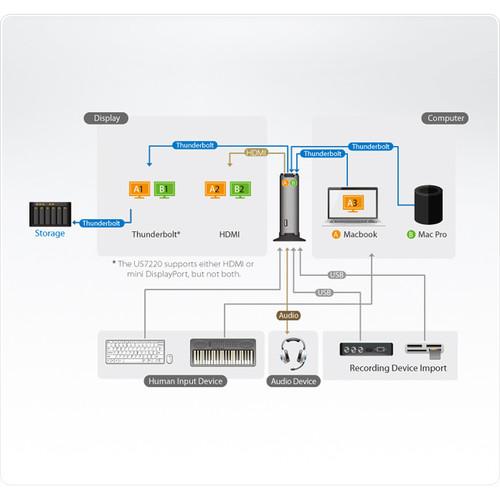

The US7220 enables two Thunderbolt 2- enabled computers to share peripherals with 20 Gb/s data transfer rates. As a KVM sharing switch it allows you to easily switch the keyboard, video, mouse, and peripherals between two computers with the push of a button. With the ability to daisy-chain up to five Thunderbolt devices, the US7220 connects up to 11 peripherals including Thunderbolt monitors, video capture devices, USB drives, printers, high-definition cameras, keyboards, mice, and more. - Thunderbolt 2.0 compliant with data transfer rates up to 20 Gb/ s
- Connect 11 devices to a laptop through a single Thunderbolt cable
- Two Thunderbolt ports connect two Thunderbolt hosts
- One Thunderbolt port connects a Thunderbolt device and daisy-chains up to 5 additional devices
- HDMI port supports an additional HDMI display
- Supports three USB 3.1 Gen 1 ports with data transfer rates up to 5 Gb/s
- Two USB 2.0 ports with data transfer rates up to 480 Mb/s
- Supports high-definition audio signals with Dolby and DTS pass-through via Mini TOSLINK; and 2.1 channel audio via 3.5 mm audio cable
- Analog/Digital audio line-in and line-out
- Supports HDMI 1.4b with 4K (UHD) resolution
- Supports DisplayPort 1.2 with 4K (UHD) resolution
- eSATA port for storage devices
UPC: 672792007262 In the Box ATEN US7220 2-Port Thunderbolt 2 Sharing Switch 3.3' Thunderbolt Cable AC Power Adapter Vertical Stand Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN US7220 2-Port Thunderbolt 2 Sharing Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

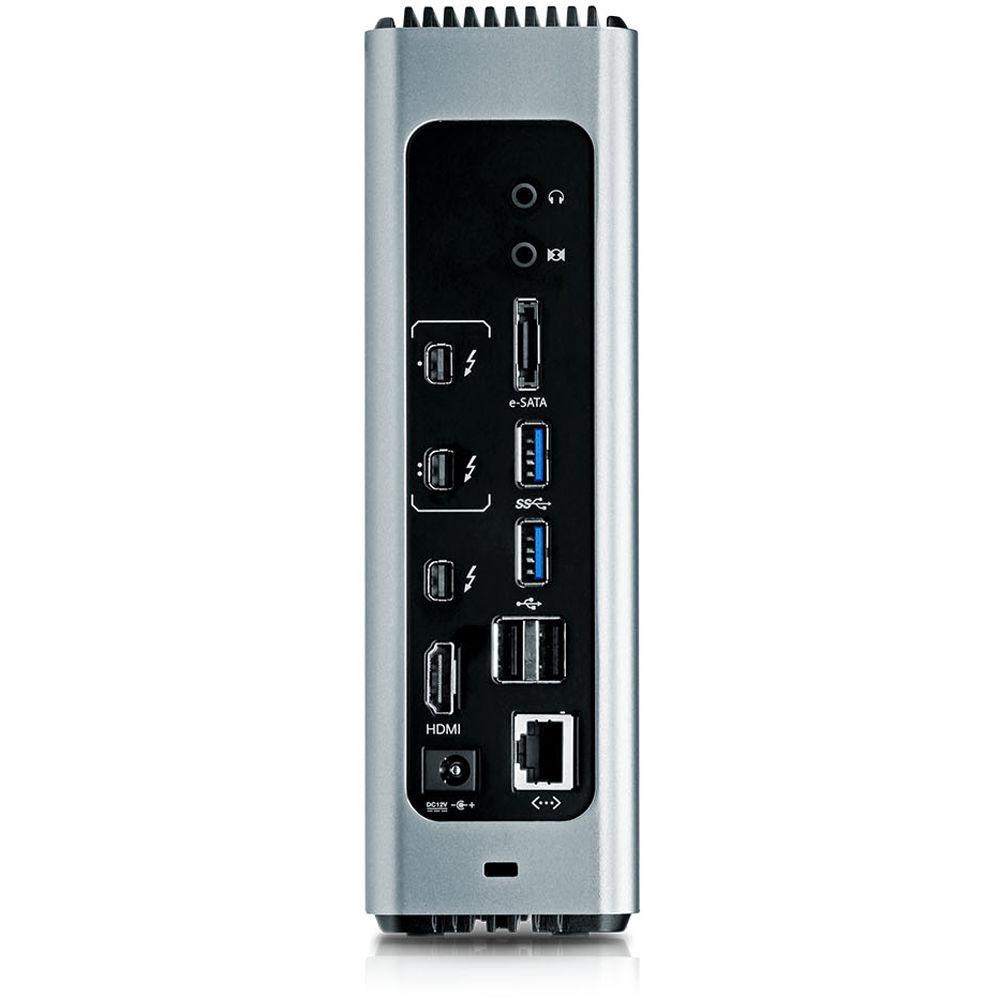

Technical parametersATEN US7220 Specs | Computer Connections | 2 | | Number of Device Connections | 1 Direct; 5 maximum (via Daisy chain mode) | | Connectors | Computer: 2 x Thunderbolt 2.0 Female (Black)
Device: 1 x Thunderbolt 2.0 Female (Black), 3 x USB3.1 Gen1 Type A Female (Blue), 2 x USB2.0 Type A Female (Black), 1 x E-SATA Female (Black) LAN Ports: 1 x Gigabit Ethernet Female (Black)
Audio Inputs: 1 x Stereo / Mini Toslink Jack Female (Black)
Audio Outputs: 1 x Stereo / Mini Toslink Jack Female (Black)
Power Jack: 1
Video Output: 1 x HDMI Female (Black), 1 x Thunderbolt / Mini DisplayPort Female | | Port Selection | 2 | | LEDs | 2 | | Video Resolution | Single View
Mini DisplayPort / Thunderbolt: 3840 x 2160 @ 60
HDMI: 3840 x 2160 @ 30
Dual View
Thunderbolt: 3840 x 2160 @ 60
HDMI: 3840 x 2160 @ 30 Supports either HDMI or Mini DisplayPort, but not both. | | Power Consumption | 12 VDC, 90 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Housing | Aluminum | | Dimensions (L x W x H) | 2.24 x 3.84 x 7.56" (5.70 x 9.75 x 19.2 cm) | | Weight | 1.72 lb (0.78 kg) | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 8.7 x 6.5 x 5.5" |
