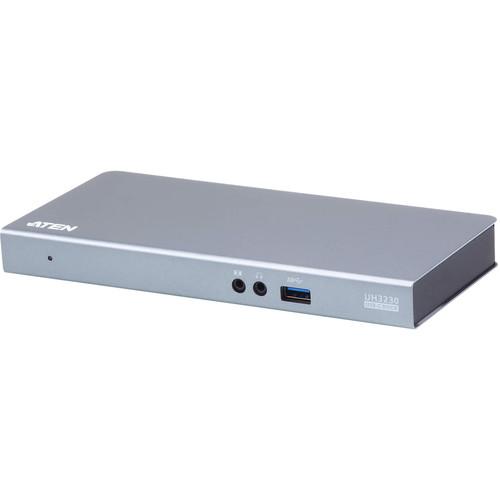

User Manual for ATEN USB-C Multiport Dock with Power Charging Click to enlarge the picture
Contents of the user manual for the ATEN USB-C Multiport Dock with Power
- Product category: Docking Stations & Port Replicators ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Docking Stations & Port Replicators
|
User manual for the ATEN USB-C Multiport Dock with Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The ATEN USB-C Multiport Dock with Power Charging gives desktop-like capabilities to your USB Type-C or Thunderbolt 3-equipped laptop. You get a total of nine additional ports, including one USB Type-C, one Gigabit LAN, one DisplayPort with Multi-Stream Transport, one HDMI, two 3.5mm audio, and three USB 3.0 Type-A ports. Dock your notebook with the included USB Type-C cable to get access to all your connected peripherals. - Power Delivery 2.0
- This dock supports Power Delivery 2.0 on the USB Type-C port. If your laptop supports a Power Delivery profile specification of either 20V/3A, 20V/1.8A, 12V/3A, or 5V/3A, you'll be able to charge your computer while still being able to take advantage of peripherals connected to the dock.
- Multi-Monitor Support
- When docked, you can output your laptop's video signal to either a single monitor or TV, or to a dual display setup. Connecting two displays requires both the DisplayPort and HDMI port. They each support up to 1080p Full HD graphics at a 60 Hz refresh rate. The DisplayPort outputs up to a 2048 x 1200 resolution at, while the HDMI connection outputs to 1920 x 1200. Both ports support a 60 Hz refresh rate when using two displays.
If you output your laptop's video signal to a single monitor or TV, you have the choice of using the DisplayPort or HDMI port. Either port delivers 4K Ultra HD graphics, with the HDMI port providing a resolution of 4096 x 2160 at 30 Hz, while the DisplayPort can output up to 3840x2160 at 30 Hz. UPC: 672792007620 In the Box ATEN USB-C Multiport Dock with Power Charging USB Type-C Cable AC Power Adapter with Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN USB-C Multiport Dock with Power Charging in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN Multiport Dock Specs | | | USB | 1 x USB (Unspecified Type) Type-C
3 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort
1 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Headphone | | Memory Card Slots | None | | | | System Connection | 1 x USB (Unspecified Type) Type-C Female | | | | Maximum Resolution Supported | 4096 x 2160 at 30 Hz (Single Display)
2048 x 1200 at 60 Hz (Dual Display) | | | | Maximum Power Consumption | 90 W | | DC Input Power | 20 VDC | | | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | LED Indicator | Power | | Enclosure Material | Metal | | Dimensions | 7.9 x 3.6 x 0.9" / 20 x 9.1 x 2.2 cm | | Weight | 1.2 lb / 0.6 kg |
