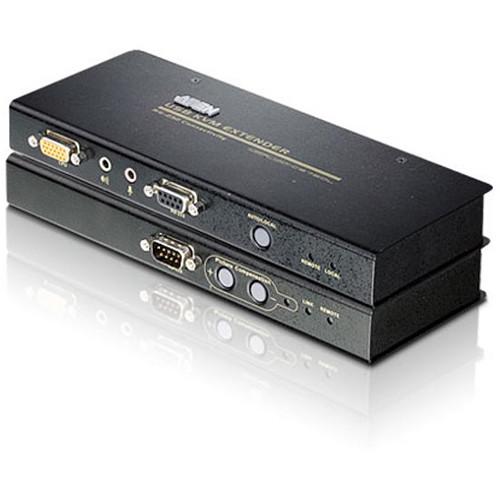

User Manual for ATEN USB VGA Audio over Cat5 KVM Extender Kit with Serial Support Click to enlarge the picture
Contents of the user manual for the ATEN USB VGA Audio over Cat5
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
|
User manual for the ATEN USB VGA Audio over Cat5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Provided by third party: The CE750 is a USB based KVM extender with automatic signal compensation and RS-232 serial functionality, that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse). Because it allows access to a computer system from a remote console, the CE750 is perfect for use in any type of installation, where you need to place the console, where it is conveniently accessible, but you want the system equipment to reside in a safe location, away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. The CE750 improves by the addition of an RS-232 port, on both the local and remote units, that allows you to connect to a serial terminal for configuration (local unit), or serial devices such as touchscreens and barcode scanners (remote unit).
- Key Features
-
- Local and remote units connect at large distances
- Dual console operation - control your system from both the local and remote console
- Built-in ASIC for greater reliability and compatibility
- USB keyboard and USB mouse ports
- RS-232 serial ports allow you to connect to a serial terminal or serial devices
- Supports stereo speakers and stereo microphone
- USB overcurrent detection and prevention
- Push-button operating mode selection
- Adjustable gain control - automatically and manually adjusts signal strength
- High-resolution video
UPC: 672792006852 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN USB VGA Audio over Cat5 KVM Extender Kit with Serial Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CE750A Specs | | | Device Type | KVM / audio / serial extender | | Form Factor | Rack-mountable | | | | Connectivity Technology | Wired | | Keyboard / Mouse Interface | USB | | Max Resolution | 1920 x 1200 @ 60 Hz | | Max Transfer Distance | 656 ft | | Features | 8KV/15KV ESD Protector, metal housing, 2KV Surge protection | | | | Interfaces | 1 x USB keyboard
1 x VGA - HD-15
1 x USB mouse
1 x audio - mini jack
1 x microphone - mini jack
1 x RS-232 - DB-9 | | | | Cables Included | 1 x keyboard / mouse / video / audio cable | | Rack Mounting Kit | Included | | Compliant Standards | DDC-2B, RoHS, DDC, WEEE | | | | Power Device | External power adapter | | Installed Qty | 2 | | | | Min Operating Temperature | 32
