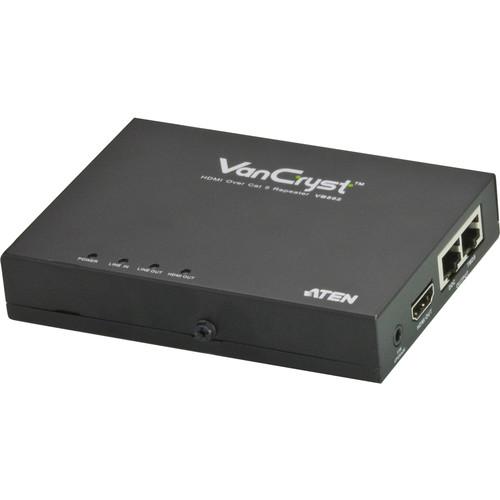

Product description The ATEN VB802 HDMI Over Cat 5e/6 Repeater is an HDMI signal extension device compatible with ATEN HDMI Over Cat 5e/6 splitters or extenders. It extends the transmission range by an extra 200' (60 m) over two Cat 5e/6 cables. The use of an additional repeater means the HDMI signals can be transmitted over even longer distances. -
- Uses two Cat 5e/6 cables to extend HDMI signal
- Long distance transmission - up to 200' (60 m)
- Provides quick and efficient way to move multimedia content from transmitter to receiver
- Offers local HDMI output
- HDMI and HDCP compatible
- HDMI (3D)
- 8-level EQ adjustment to improve image quality
- Cascadable to five levels*
- Quality video - HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
1 Please Note: * Signal quality depends on cables. We recommend STP Cat 5e/6 cables or ATEN low skew cable (Part No. 2L-2801) close UPC: 672792003134 In the Box ATEN VB802 HDMI Over Cat 5e/6 Repeater Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VB802 HDMI Over Cat 5e 6 Repeater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

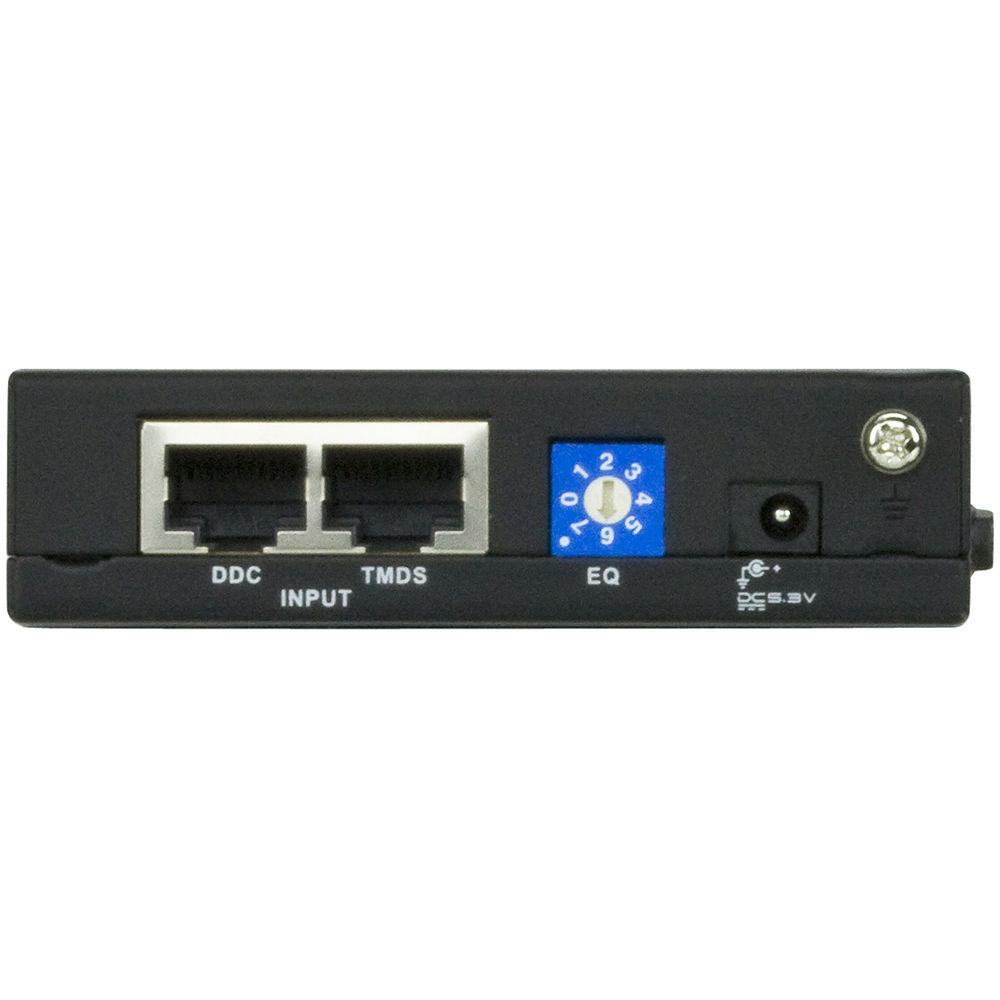

Technical parametersATEN VB802 Specs | Connectors | Line In:TMDS - 1 x RJ-45 Female
DDC - 1 x RJ-45 Female

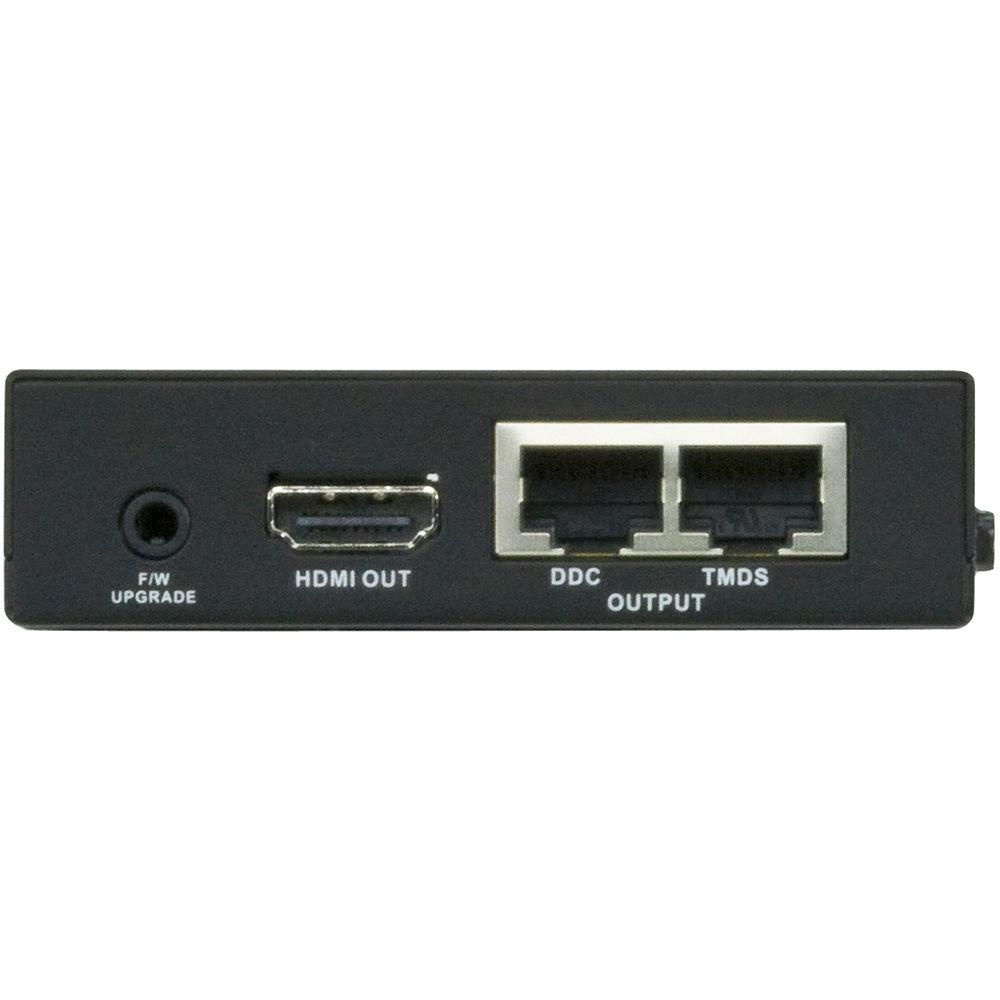

Line Out: TMDS 1 x RJ-45 Female
DDC: 1 x RJ-45 Female
HDMI out: 1 x HDMI Type A Female (Black)
F/W upgrade: 1 x 3.5mm Jack (Black)
Power: 1 x DC Jack
| | Switches | EQ Adjustment: 1 x 8-position Switch | | LEDs | Power: 1 x green
Line in: 1 x green
Line out: 1 x green
HDMI out: 1 x green
| | Video | 1080p @ 40 m; 1080i @ 200'(60 m) | | Cable Distance | 500' / 165 m | | Power Consumption | 5.3 VDC, 5.3 W | | Environment | Operation Temperature: 32 to 132°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 80% RH, Non-condensing
| | Material | Metal housing | | Dimensions | 4.7 x 3.4 x 0.9" (11.95 x 8.56 x 2.26 cm) | | Weight | 0.6 lb (252 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.5 x 6.3 x 2.3" |
