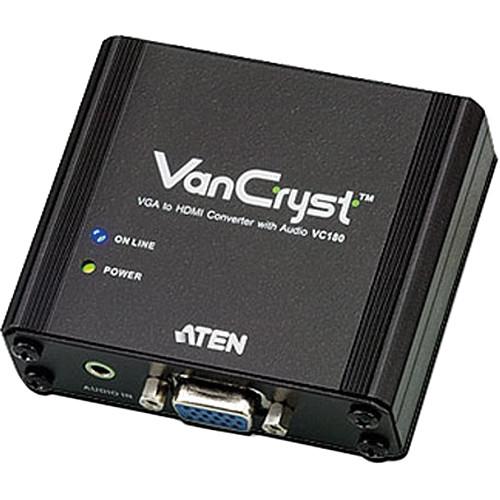

User Manual for ATEN VC180 VGA to HDMI Converter with Audio Click to enlarge the picture
Contents of the user manual for the ATEN VC180 VGA to HDMI Converter
- Product category: Signal Converters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Signal Converters
 |
User manual for the ATEN VC180 VGA to HDMI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The ATEN VC180 VGA to HDMI Converter with Audio lets you view analog VGA source data on a digital HDMI display with stereo sound quality. It uses dual power sources – from the VGA port or a power adapter (included). The VC180 gets its power supply from the VGA port. However if your source device is not capable of supplying power, the included power adapter can be used to connect the VC180 to a power source. The VC180 is compact, flexible and convenient to install – with no software required. - Converts VGA signals to HDMI output
- Supports analog stereo audio input
- Up to 1080p, WUXGA video resolution
- Screen Position Button - screen position settings can be stored for each output resolution
- Multi-platform support - Windows and Mac
- Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
- Automatically detects video input signals
- No software required - eliminates incompatibility and installation issues
UPC: 672792002854 In the Box ATEN VC180 VGA to HDMI Converter with Audio Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VC180 VGA to HDMI Converter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

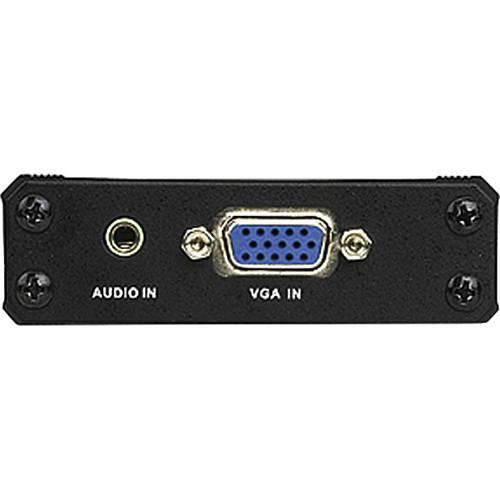

Technical parametersATEN VC180 Specs | Connectors | Video In: 1 x HDB-15 Female (Blue)
Audio In: 1 x 3.5 mm Stereo Audio (Green)

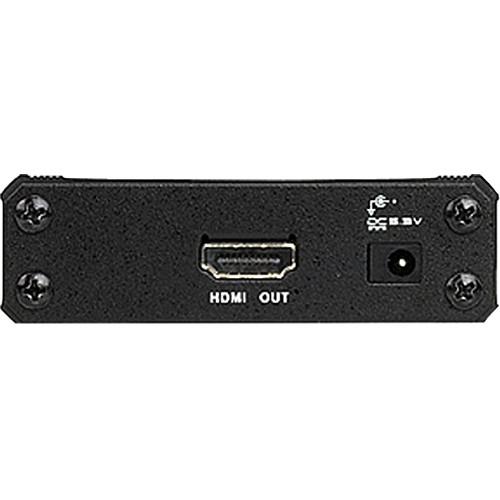

HDMI Out: 1 x HDMI Type A Female (Black)
Power: 1 x DC Jack | | LEDs | Power:1 (Green)
On Line: 1 (Blue) | | Video | Up to 1920 x 1200 @ 60 Hz | | Power Consumption | 5.3 VDC, 3.2 W | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 3.11 x 2.93 x 0.96" (7.90 x 7.46 x 2.44 cm) | | Weight | 0.33 lb (0.15 kg) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.5 x 6.4 x 2.4" |
