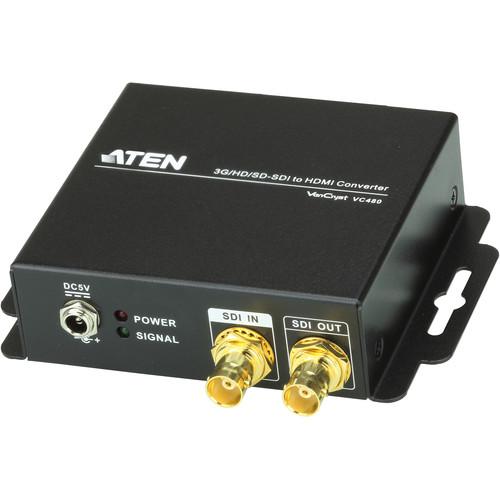

Product description The VC480 3G/HD/SD-SDI to HDMI Converter from ATEN converts 3G/HD/SD-SDI video input to HDMI video output, providing a way to exchange high-definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC480 is a dependable way to convert signals with confidence when monitoring in any post or broadcast application. - Supports additional analog stereo audio and coaxial digital audio
- Supports eight audio channels @ 48kHz rate
- Buffered loop-through output provides extended monitoring
- Automatic detection of 3G/HD/SD-SDI signals
- Reclocking SDI signals for cascading, allowing longer transmission
- Locking power connector for secure communications
UPC: 672792005633 In the Box ATEN VC480 3G/HD/SD-SDI to HDMI Converter Power Adapter Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VC480 3G HD SD-SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VC480 Specs | Connectors | BNC gold, SDI input
BNC gold, SDI output
HDMI Type-A female black, HDMI output

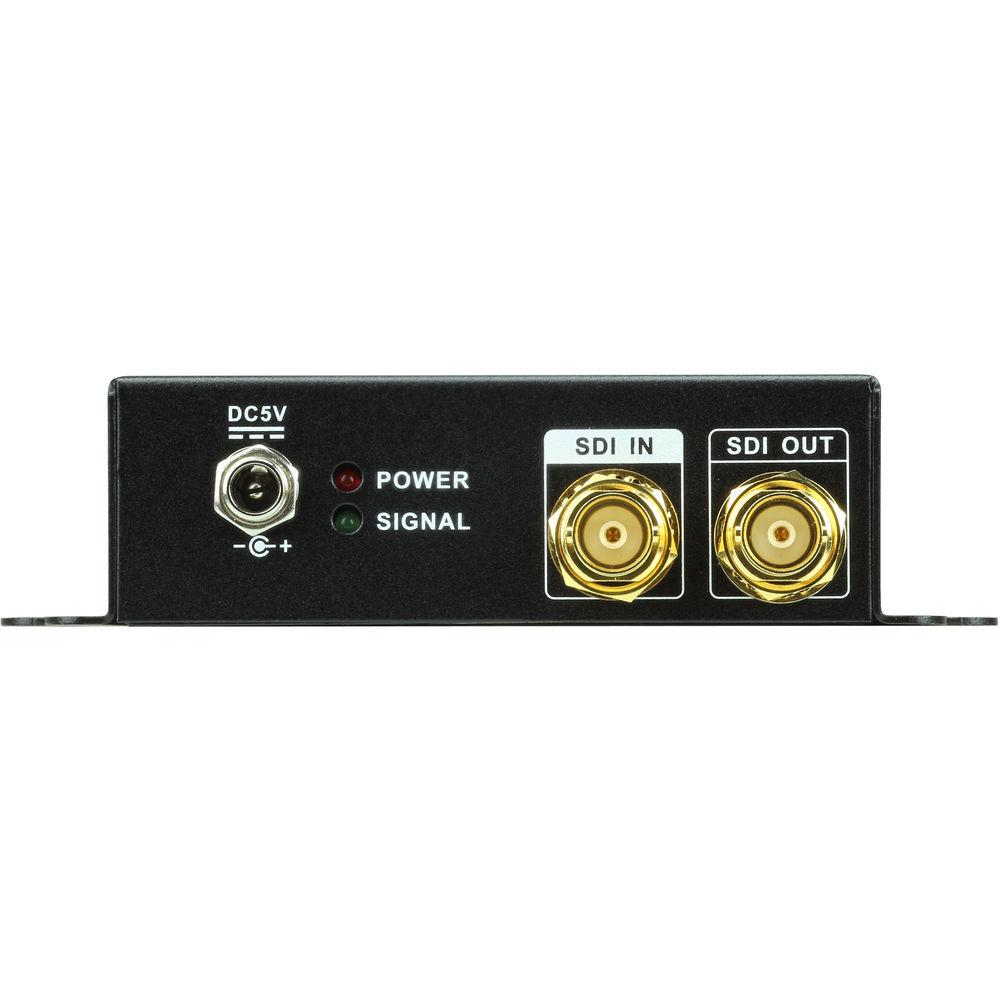

1 x DC power jack, power input | | Impedance | Input: 75 ohms
Output: 100 ohms | | Maximum Data Rate | 2.97 Gb/s | | Maximum Pixel Clock | 148.5 MHz | | Supported Resolutions | NTSC @ 59.96 Hz
PAL @ 50 Hz
720p @ 50, 59.94, 60 Hz
1080i @ 50, 59.94, 60 Hz
1080p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz | | Maximum Distance | 3G-SDI: 295' (90 m)
HD-SDI: 492' (150 m)
SD-SDI: 984' (300 m) | | SDI Formats Supported | SD-SDI: SMPTE 259M; up to 270 Mb/s
HD-SDI: SMPTE 292M, 296M; up to 1.485 Gb/s

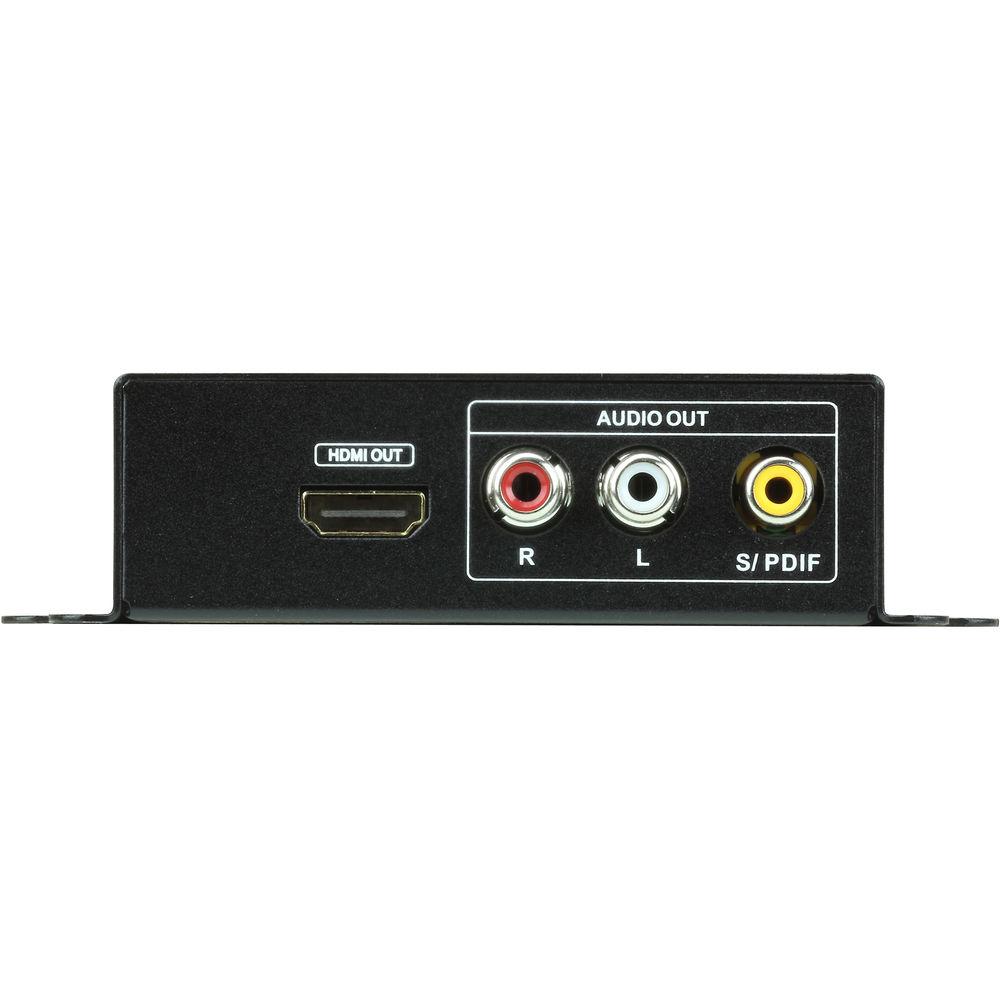

3G-SDI: SMPTE 424M, 425M level A; up to 2.97 Gb/s | | Audio Output | 2 x RCA red/white, analog
1 x RCA yellow, digital | | Temperature & Humidity | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 - 90%, RH non-condensing | | Power Consumption | 5 VDC, 10 W | | Material | Metal | | Dimensions | 4.8 x 4.3 x 1.2" (12.30 x 10.87 x 3.05 cm) | | Weight | 10.2 oz (290 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.5 x 6.3 x 2.4" |
