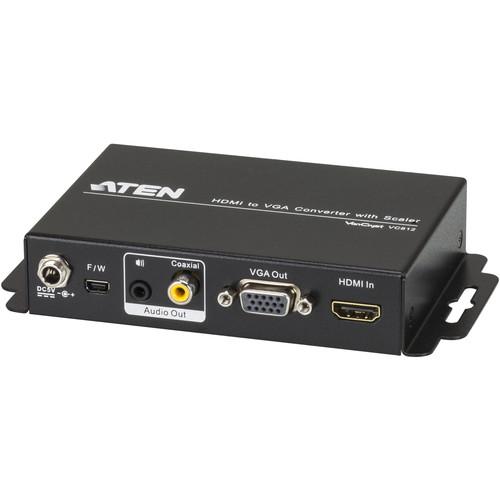

User Manual for ATEN VC812 HDMI to VGA Converter with Scaler Click to enlarge the picture
Contents of the user manual for the ATEN VC812 HDMI to VGA Converter
- Product category: Signal Converters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Signal Converters
 |
User manual for the ATEN VC812 HDMI to VGA Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VC812 HDMI to VGA Converter with Scaler from ATEN offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you optimal image quality. You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons. - Converts HDMI signals to VGA output
- Supports analog/digital audio
- Optimum video quality up to 1080p, 1920 x 1200
- It features a built-in scaler engine that converts various input video resolutions into the display's native resolution, adjusting picture ratio automatically for maximum viewing comfort
- 3D de-interlacing increases image clarity for optimal viewing quality by processing and scanning digital video signals

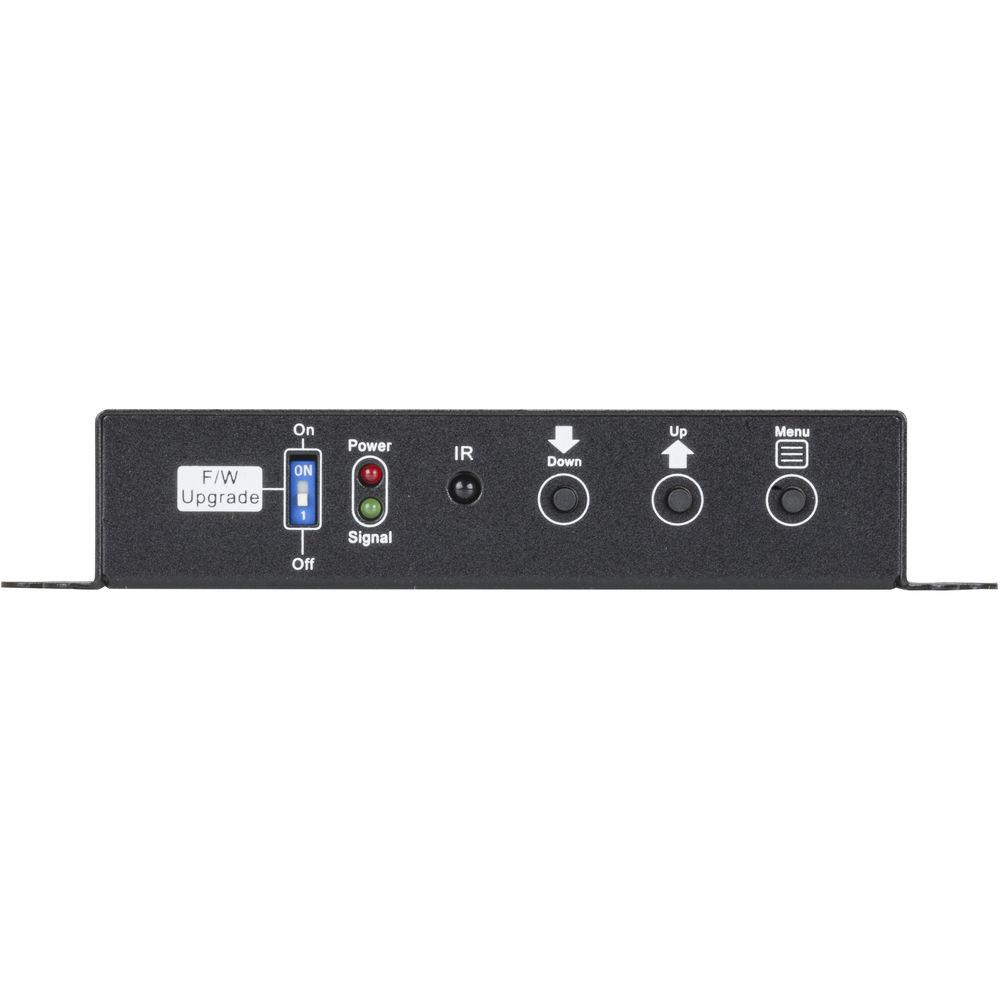

- Built-in OSD function for video and system settings configuration
- Integrated video noise reduction
- Integrated next generation color engine for automatic picture quality/color adjustment and enhancement
- Automatically detects video input signals
- LED indication of power status and source device
- No software installation is required, eliminating incompatibility and installation issues
UPC: 672792004742 In the Box ATEN VC812 HDMI to VGA Converter with Scaler Power Adapter Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VC812 HDMI to VGA Converter with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

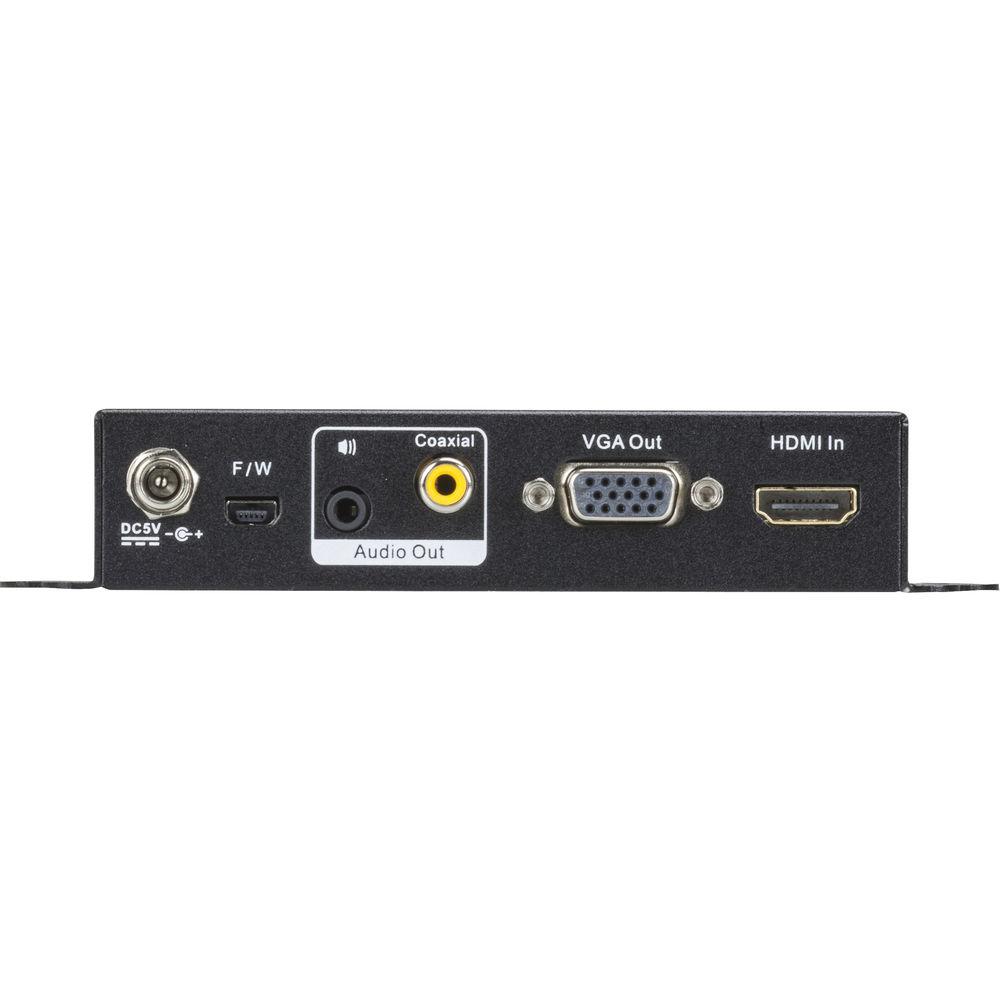

Technical parametersATEN VC812 Specs | | | Interface | 1 x HDMI type A female (black) | | Impedance | 100 ohms | | | | Interface | 1 x HDB-15 female (black) | | Impedance | 75 ohms | | | | Maximum Pixel Clock | 165 MHz | | Resolutions | Up to 1920 x 1200 | | Scaler Resolutions | 480p; 480i; 576p; 576i;
800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024;
1360 x 768; 1440 x 900; 1400 x 1050;
1600 x 1200; 1680 x 1050; 1080i;
1080p; 1920 x 1200 | | | | Input | Analog: 1 x 3.5 mm mini stereo jack (black)
Digital: 1 x RCA (yellow) | | Power | Connector: 1 x DC jack
Consumption: 5 VDC, 10 W | | | | Operating Temperature | +32 to +104°F (0 to +40°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Humidity (Non-condensing) | 20 to 90% RH | | | | Casing | Metal | | Dimensions (L x W x H) | 4.33 x 3.26 x 1.10" (11.00 x 8.30 x 2.80 cm) | | Weight | 10.22 oz (290.00 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.5 x 6.4 x 2.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
