User Manual for ATEN VC880 HD Video Repeater and Audio De-Embedder Click to enlarge the picture
Contents of the user manual for the ATEN VC880 HD Video Repeater and
- Product category: HDMI Signal Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN HDMI Signal Extenders
 |
User manual for the ATEN VC880 HD Video Repeater and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

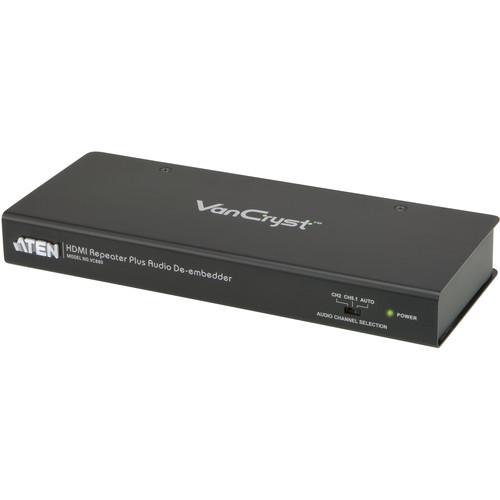

Product description The VC880 HD Video Repeater and Audio De-Embedder from ATEN is an HDMI repeater with an added audio de-embedder that extracts and converts the audio signal from the HDMI input. This means that as well as the repeated HDMI audio and video signal output, you can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors as an additional high-quality audio output. With support for 3D TV formats, the VC880 is suitable for users who want to experience high-definition video with their choice of high-definition audio output on TVs, projectors, A/V receivers or speakers. - Repeats HDMI input signal up to 50'
- Extracts HDMI audio signal and outputs as additional audio source
- Supports optical/coaxial digital audio and analog stereo audio
- Full HD up to 1920 x 1080 (1080p)
- CH2/CH5.1/Auto mode audio channel selection
- Supports audio on/off switch for HDMI output
- Expandable to three levels, provides three levels of audio output for one HDMI at distance up to 150'
UPC: 672792002922 In the Box ATEN VC880 HD Video Repeater and Audio De-Embedder Power Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VC880 HD Video Repeater and Audio De-Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

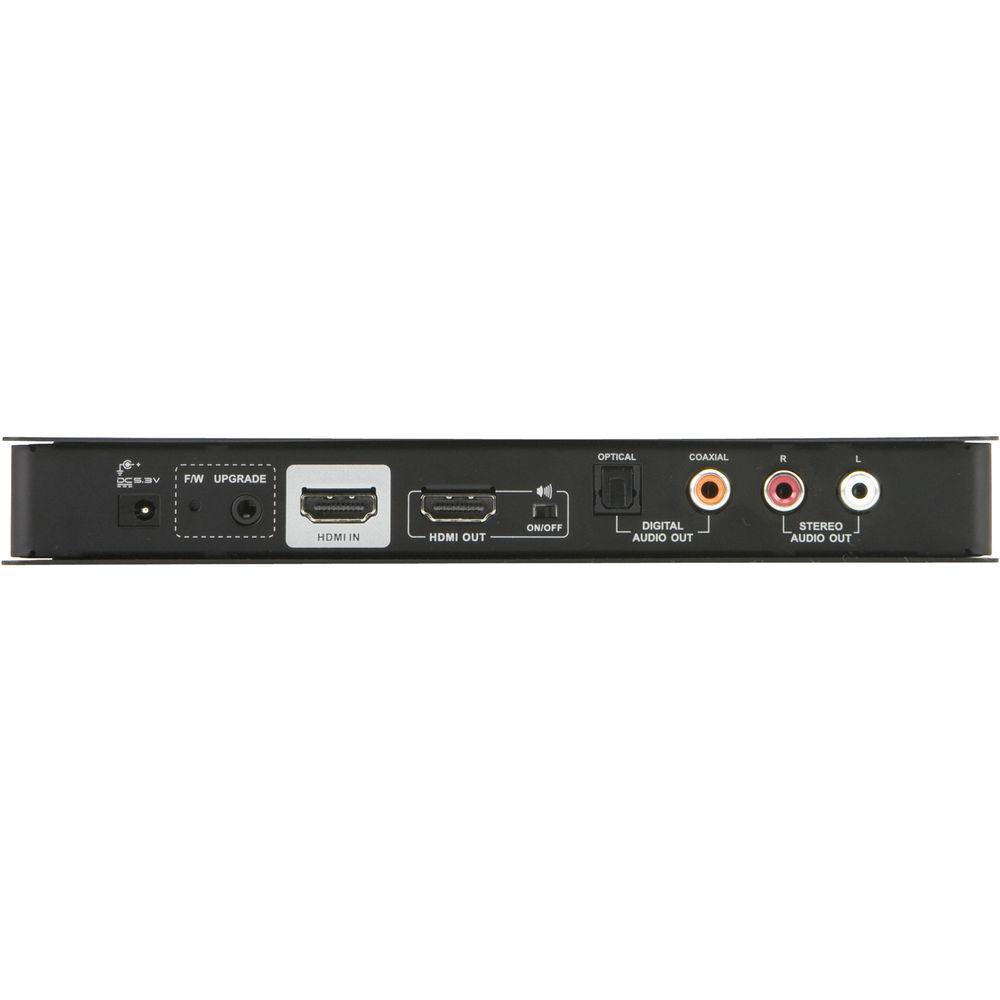

Technical parametersATEN VC880 Specs | Connectors | Video Input: 1 x HDMI female
Video Output: 1 x HDMI female
Audio Output: 1 x TOSLINK (optical)/1 x RCA (coaxial)/2 x RCA (stereo)

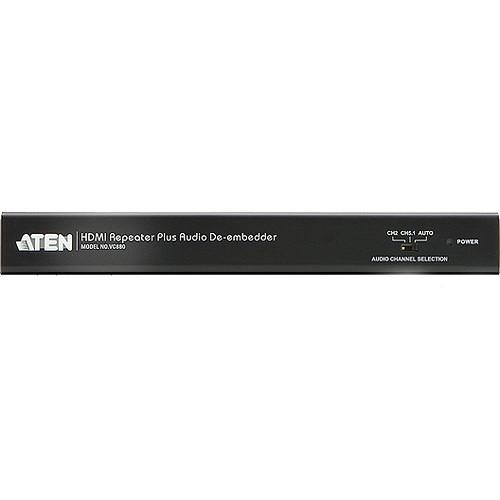

Power: 1 x DC jack | | Console Connectors | Flash ROM Upgrade: 1 x 4-conductor 3.5 mm jack | | LEDs | Power On: 1 x (green) | | Switches | Mode Selection: Audio channel - 1 x slide switch/HDMI audio on/off - 1 x slide switch
F/W Upgrade: 1 x semi-recessed pushbutton | | Power | 5.3 VDC, 150 mA | | Power Consumption | 0.8 W - 3 BTU/hr | | Dimensions | 7.9 x 3.2 x 1.0" (20.0 x 8.1 x 2.5 cm) | | Weight | 16.0 oz (453.5 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.5 x 6.4 x 2.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
