User Manual for ATEN VE022 Mini CAT5 A V Extender Click to enlarge the picture
Contents of the user manual for the ATEN VE022 Mini CAT5 A V
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
|
User manual for the ATEN VE022 Mini CAT5 A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

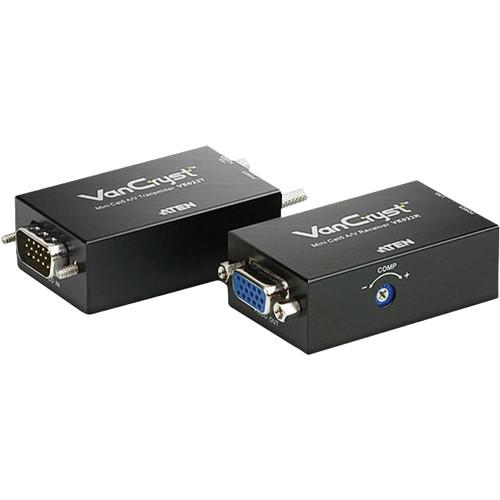

Product description The Aten VE022 Mini CAT5 A/V Extender allows you to extend the distance between your video/audio source and display devices by as much as 492.13' (150m), using a CAT5e cable (sold separately), providing an easy way to replace VGA cables.With hot-plugging support, you can quickly add or remove the VE022 Transmitter/Receiver connected to the source/display device without having to power down devices. The VE022 Mini CAT5 A/V Extender is a compact, convenient and economical addition to your video/audio setup. - Uses CAT5e cable to extend audio and video transmission up to 492.13' (150 m)
- Superior Video Quality: Screen resolutions include 1920 x 1200 @ 60 Hz 98.42' (30 m), 1600 x 1200 @ 60 Hz 328.08' (100 m), and 1280 x 1024 @ 60 Hz 492.13' (150 m)
- Adjustable Gain Control lets you manually adjust signal strength to compensate for distance
- No external power supply needed for transmitter
- Convenient docking interface for mounting the extender on the display device
- Eliminates the need for bulky VGA cables
UPC: 672792002731 In the Box ATEN VE022 Mini CAT5 A/V Extender VE022T Mini CAT5 A/V Transmitter VE022R Mini CAT5 A/V Receiver Power Adapter 1.15' VGA Cable 1.31' Audio Cable Dock Mount Kit USB to DC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE022 Mini CAT5 A V Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE022 Specs | Connectors | VE022T TransmitterVideo In: 1 x HDB-15 male (Black)Audio In: 1 x Audio jack female (Green)VE022R Receiver:Video Out: 1 x HDB-15 female (Blue)Audio Out: 1 x Audio jack female (Green)Unit to Unit: 1 x RJ-45 femalePower: 1 x DC jack | | LED | Power: 1 (Green)VGA Power: 1 (Green)Link for VE022R Receiver: 1 (Orange) | | Switch | Video Compensation Tuner: 1 x knob | | Video | 1920 x 1200 @ 60 Hz at 98.42' (30.00 m)
1600 x 1200 @ 60 Hz at 328.08' (100.00 m)
1280 x 1024 @ 60 Hz at 492.13' (150.00 m) | | Cable Distance | 492.13' (150.00 m) | | Power Consumption | VE022T Transmitter: 5 VDC, 0.44 W
VE022R Receiver: 5 VDC, 0.88 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity (Non-condensing) | 0 to 80% RH | | Housing | Metal | | Dimensions (L x W x H) | VE022T Transmitter: 2.50 x 1.39 x 0.81" (6.35 x 3.53 x 2.06 cm)
VE022R Receiver: 2.52 x 1.39 x 0.81" (6.42 x 3.53 x 2.06 cm) | | Weight | VE022T Transmitter: 2.04 oz (58.00 g)
VE022R Receiver: 1.9 oz (54.0 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.528 x 6.378 x 2.441" |
