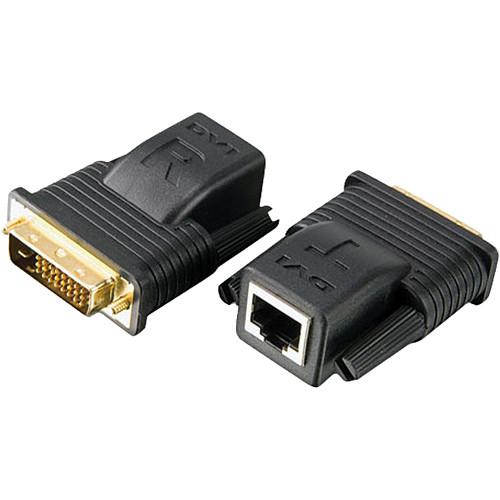

User Manual for ATEN VE066 Mini CAT5 DVI Extender Click to enlarge the picture
Contents of the user manual for the ATEN VE066 Mini CAT5 DVI Extender
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
|
User manual for the ATEN VE066 Mini CAT5 DVI Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The ATEN VE066 Mini CAT5 DVI Extender allows you to increase the distance between your DVI display and DVI source by up to 65.6' (20m) using only one CAT5e or CAT6 cable (sold separately), providing a convenient way to replace heavy DVI cables.With hot-plugging support, easily add or remove the included VE066 Transmitter connected to the source or the included VE066 Receiver connected to the display without having to power down the devices. Compatible with all ATEN DVI switches and DVI splitters, the VE066 Mini CAT5 DVI Extender is a compact, convenient, and economical way to extend your DVI display. - Extends the distance between DVI source and DVI display
- Uses a CAT5e cable to connect the transmitter and receiver units
- Long distance transmission up to 65.6' (20m)
- HDCP 1.1 and RoHS compliant
- Video quality up to 1920 x 1200
- Compatible with all ATEN DVI switches and DVI splitters (sold separately)
- Supports LCD screens, plasma TVs, and projectors
- Useful for home entertainment systems, banks, surveillance systems, outdoor multimedia displays, airports, and finance institutions
- Smart Video Display: Image quality is optimized based on the available resolution of the output device
UPC: 672792002069 In the Box ATEN VE066 Mini CAT5 DVI Extender VE066T Mini CAT5 DVI Extender (Transmitter) VE066R Mini CAT5 DVI Extender (Receiver) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE066 Mini CAT5 DVI Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE066 Specs | Connectors | DVI In for the VE066T Transmitter: 1 x DVI-D male (Gold)
DVI Out for the VE066R Receiver: 1 x DVI-D male (Gold)
Unit to Unit: 1 x RJ-45 female | | Video Resolution | Up to 1920 x 1200 | | Transmission Distance | 65.6' (20.0 m) The transmission distance may be shorter if HDCP video content is played. | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity (Non-condensing) | 0 to 80% RH | | Housing | Metal | | Dimensions (L x W x H) | 2.22 x 1.60 x 0.85" (5.66 x 4.07 x 2.15 cm) | | Weight | 1.66 oz (47.00 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.8 x 4.3 x 1.4" |
