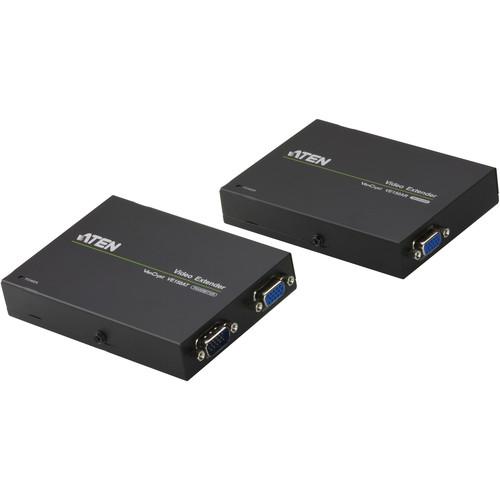

Product description The VE150A Video Extender from ATEN comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 492'. It is suitable for factories and construction sites, or any location where the display may be in a risky setting, but you want the system to be kept in a safe location. - Uses Cat 5e cables to connect the local and remote units
- Supports one local and one remote display
- Long distance transmission up to 492'
- Adjustable gain control; manually adjust signal strength to compensate for distance
- Superior video quality up to 1920 x 1200 @ 100'; 1600 x 1200 @ 330'; 1280 x 1024 @ 492'
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multi-sync monitors
- Supports widescreen formats
- Built-in 8 KV/15 KV ESD protection
- Supports DDC for the local monitor
- Plug-and-play; no software installation required
UPC: 672792003929 In the Box ATEN VE150A Video Extender 1 x VE150AR Video Extender (Remote Unit) Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE150A Video Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE150A Specs | Display Connections | 1 | | Connectors | VE150AT:
Input Video: 1 x HDB-15 male (blue)
Output Video: 1 x HDB-15 female (blue)
Unit-to-unit: 1 x RJ-45 female (black)
Power: 1 x DC jack
VE150AR:
Input Video: N/A
Output Video: 1 x HDB-15 female (blue)
Unit to Unit: 1 x RJ-45 female (black)
Power: 1 x DC jack | | Switches | VE150AT:
Manual Gain Control: N/A
VE150AR:
Manual Gain Control: 1 x knob | | LEDs | 1 x Power (green) | | Video | 1920 x 1200 @ 60 Hz, 100' (30 m); 1600 x 1200 @ 60 Hz, 330' (100 m); 1280 x 1024 @ 60 Hz, 492' (150 m) | | Power Consumption | VE150AT: DC5.3 V, 1.0 W
VE150AR: DC5.3 V, 1.2 W | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Relative Humidity | 0 to 80% (non-condensing) | | Housing Material | Metal | | Compatibility | Compatible ATEN Accessories:
2A130G VGA EDID Emulator
2L-2901 Shielded Digital Video Extension Cable
2L2801 Low Skew Cat 5e Cable | | Compliance | RoHS | | Dimensions (L x W x H) | 5.0 x 3.6 x 0.9" (12.7 x 9.0 x 2.2 cm) | | Weight | 8.4 oz (240.0 g) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 11.3 x 7.0 x 3.9" |
