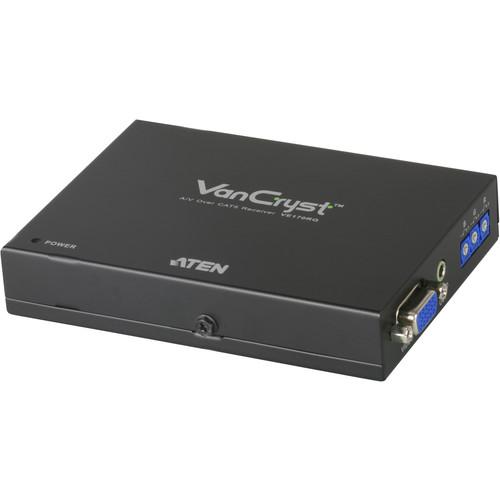

Product description The ATEN VE170Q A/V Over Cat5 Extender Set includes a VE170T transmitter unit and a VE170RQ receiver unit. It provides a cost-effective and efficient solution for sending and receiving high-quality audio and video content. You can connect the two units using a Cat5e cable, and the displays can be located up to 1000' away from the transmitter's input source. The VE170RQ receiver can also be used with the ATEN's VS1204T/VS1208T A/V over Cat5 splitter as a transmitter.The VE170RQ features ATEN's Deskew technology, which supports manual synchronization of RGB signals and corrects color phase and timing errors that occur over long distances. -
- Uses Cat5e cable to connect the transmitter and receiver units
- Supports one local and one remote display
- Long distance transmission up to 1000'
- Deskew Function allows you to synchronize the time delay of RGB signals to compensate for distance
- Video Quality: 1920 x 1200 @ 60Hz 500'; 1280x1024 @ 60Hz 1000', audio enabled (mono)
- Adjustable gain/compensation control
- Built-in 8 kV/15 kV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard
UPC: 672792002632 In the Box ATEN VE170Q A/V Over Cat5 Extender Set VE170T Transmitter VE170RQA/V Over Cat 5 Extender with Deskew dabubxayfy 6' VGA & Audio Cable 2 x Power Adapter Grounding Wire Rack Mount Kit (2-Piece) Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE170Q A V Over Cat5 Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE170Q Specs | Video Input | 1 x HDB-15, male
Impedance: 75 Ohms
Maximum Distance: 3' / 1.8 m | | Video Output | VE170T: 1 x HDB-15, female
VE170RQ: 1 x HDB-15, female
Impedance: 75 Ohms | | Video Bandwidth | 300 MHz | | Supported Resolution & Distance | 1920 x 1200 @ 60 Hz 500' / 150 m
1280 x 1024 @ 60 Hz 1000' / 300 m
| | Audio Input | VE170T: 1 x 3.5 mm Mini stereo jack, female | | Audio Output | VE170T & VE170RQ:1 x 3.5 mm Mini stereo jack, female | | Power | Connector: 1x DC Jack
Consumption: 5.3 VDC, 4.82 W
VE170RQ: 5.3 VDC, 4.82 W | | Environment | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 150°F / -20 to 60°C
Humidity: 0 to 80% RH, Non-condensing | | Dimensions | 4.7 x 3.4 x 0.9" / 12.8 x 9.0 x 2.3 cm | | Weight | VE170T: 0.6 lb / 0.25 kg
VE170RQ: 0.6 lb / 0.25 kg | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 11.2 x 7.0 x 3.9" |
