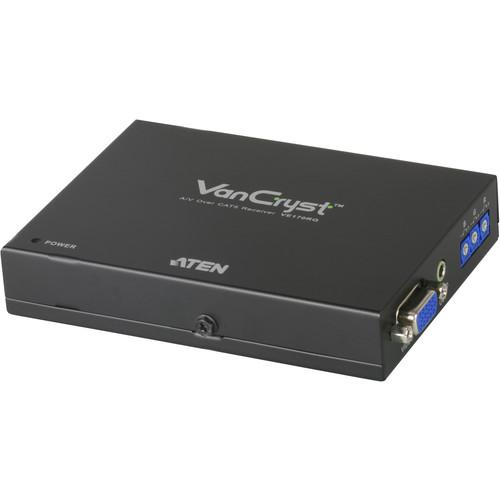

User Manual for ATEN VE170RQA V Over Cat 5 Extender with Deskew Click to enlarge the picture
Contents of the user manual for the ATEN VE170RQA V Over Cat 5
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE170RQA V Over Cat 5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The ATEN VE170RQA/V Over Cat 5 Extender with Deskew is a cost-effective and efficient solution for sending and receiving high quality audio and video content. Connect the VE170R to a VE170T using a Cat 5e cable. Displays can be up to 1000' (300 m) from the transmitter's input source. This receiver unit can also be used with the ATEN VS1204T or VS1208T A/V Over Cat 5 Splitters as transmitters. -
- Uses Cat 5e cable to connect the transmitter and receiver uints
- Supports one remote display
- Transmission up to 1000 feet (300 m)
- 1920 x 1200 @ 60 Hz 500' (150 m); 1280 x 1024 @ 60Hz 1000' (300 m)
- Audio enabled (mono)
- Adjustable gain/compensation control
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard
- Compatible with a VE170T or the VS1204T / VS1208T
UPC: 672792002618 In the Box ATEN VE170RQA/V Over Cat 5 Extender with Deskew Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE170RQA V Over Cat 5 Extender with Deskew in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE170RQ Specs | Connectors | Video out: 1 x HDB-15 Female (Blue)
Audio out: 1 x Audio Jack Female (Green)
Unit to unit: 1 x RJ-45 Female
Power: 1 x DC Jack
| | LEDs | Power: 1x green | | Switch | Manual gain control: 2 x knob | | Video | 1920 x 1200 @ 60Hz 500' (150 m)
1280 x 1024 @ 60Hz 1000' (300 m)
| | Cable Distance | 1000' (300 m) | | Power Consumption | 5.3 V DC, 4.82W | | Environment | Operation Temperature: 32 to 132°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 80% RH, Non-condensing
| | Material | Metal housing | | Dimensions | 4.7 x 3.4 x 0.9 (11.95 x 8.56 x 2.26 cm) | | Weight | 0.6 lb (0.25 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.5 x 6.3 x 2.5" |
