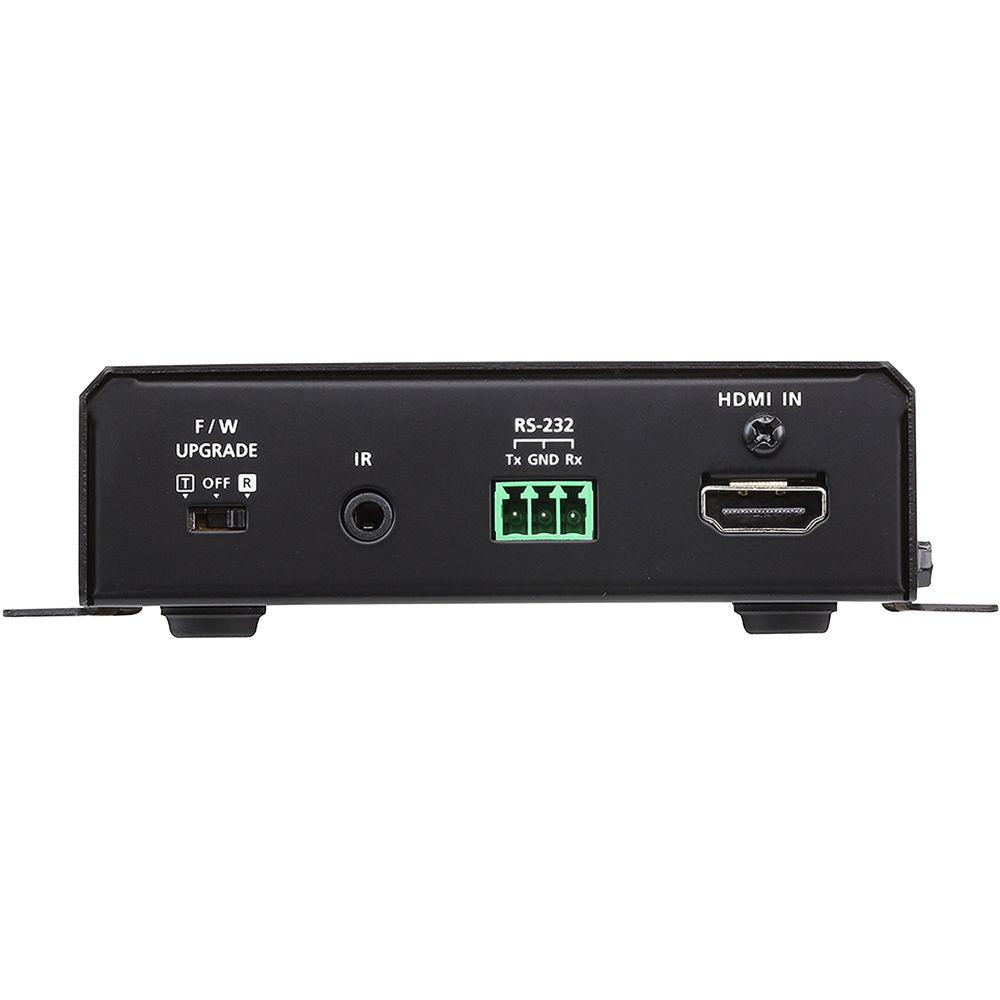

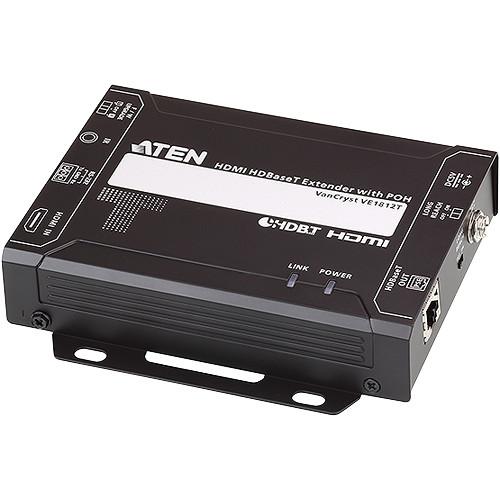

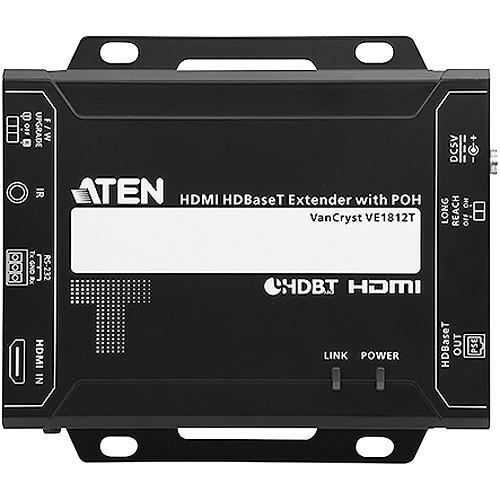

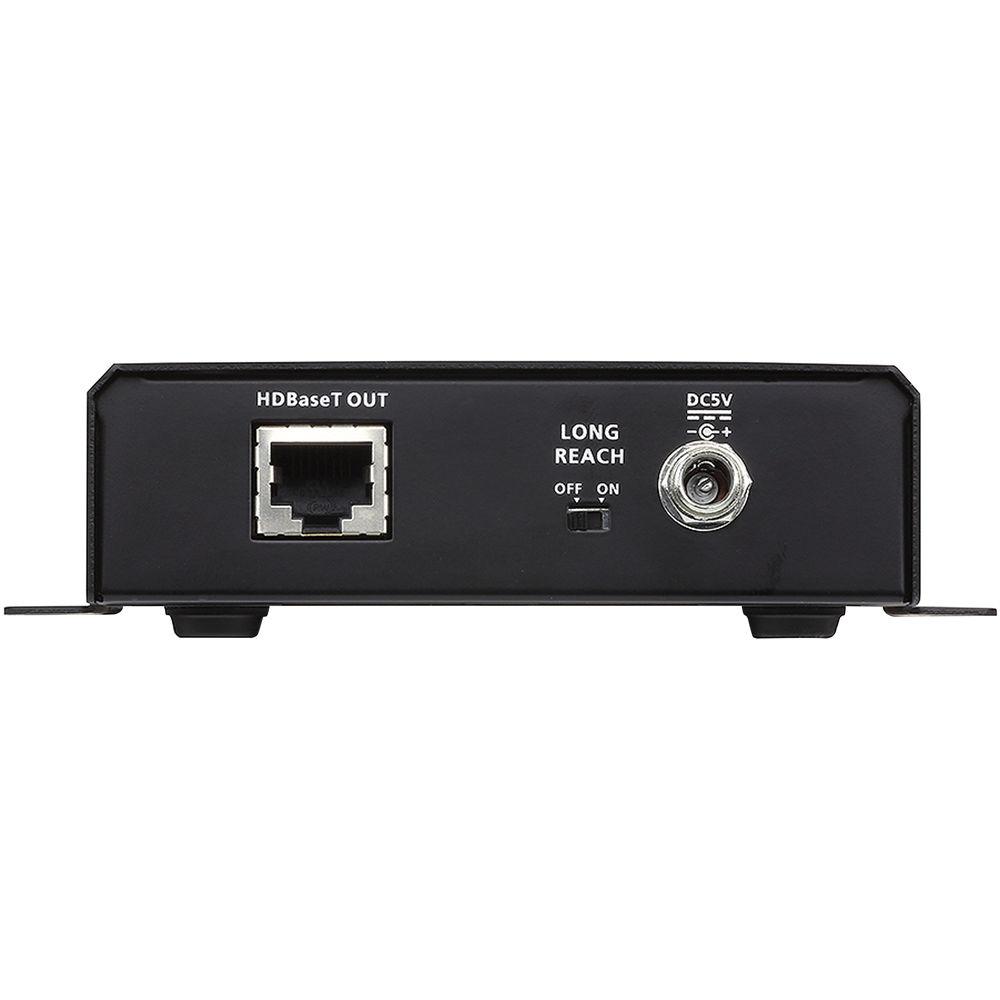

User Manual for ATEN VE1812T HDMI HDBaseT Transmitter with PoH Click to enlarge the picture
Contents of the user manual for the ATEN VE1812T HDMI HDBaseT Transmitter with
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN VE1812T HDMI HDBaseT Transmitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Provided by third party: The VE1812T features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812T supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions. The VE1812T HDMI HDBaseT Transmitter with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812T can extend HDMI signal up to 150m @1080p. The VE1812T is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
- Key Features
-
- HDBaseT Connectivity ? extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
- Supports HDBaseT Long Reach Mode ? Up to a maximum range of 150 meters @ 1080p
- 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
- HDBaseT Anti-jamming ? resists signal interference during high - quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) ? supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
- Bi-directional RS-232 channel ? allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
UPC: 672792007682 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE1812T HDMI HDBaseT Transmitter with PoH in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE1812T Specs | | | Device Type | Video/audio/infrared extender | | Form Factor | Rack-mountable | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Data Transfer Rate | 10.2 Gbps | | Max Resolution | 4096 x 2160 | | Max Video Bandwidth | 340 MHz | | Max Transfer Distance | 492 ft | | Status Indicators | Power, link/activity | | Features | HDCP compliant, 3D support, 4K resolution support, HDBaseT technology, metal housing, 1080p resolution support | | | | Interfaces | 1 x HDMI - 19 pin HDMI Type A female
1 x RS-232 - terminal block
1 x IR - mini jack female | | | | Compliant Standards | RoHS, CEC | | | | Power Over Ethernet (PoE) | PoH | | Power Consumption Operational | 4.3 Watt | | | | Min Operating Temperature | 32
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
