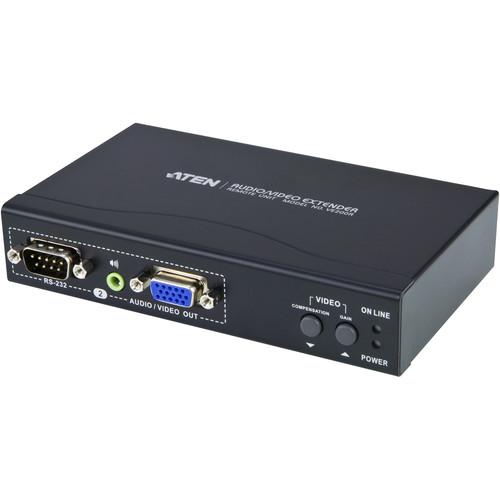

Product description The ATEN VE200 VGA/Audio Cat5e/6 Extender up to 650' with RS-232 is an audio/video extender system allowing you to extend the distance between the computer system unit and the display monitor by up to 500' (200m) for video resolutions up to 1280 x 1024 @ 60 Hz. It accomplishes this by means of a local transmitting unit (VE200L), and a remote receiving unit (VE200R), connected by a Cat5e twisted pair cable.The VE200 is suitable for installations where the display needs to reside in public view, but the system equipment can be safely tucked away. The extender system is also useful for control and security purposes, where you can have the system unit in a secure area while the display is located in an area that is convenient for viewing.Other useful applications for the VE200 Audio/Video Extender System include finance (the remote display of stock market information), education (remote display of lectures and lessons to lecture halls and classrooms), and business (remote display of addresses to overflow rooms, video conferencing, and demos). -
- Uses Cat5e cable to connect the transmitter and receiver units
- Dual audio/video
- Supports one local and two remote displays
- Resolutions up to 1920 x 1200 @ 60 Hz at 100', 1600 x 1200 @ 60 Hz at 500', and 1280 x 1024 @ 60Hz at 650'
- Audio and serial enabled
- Two gain control modes for picture quality
- Video gain and compensation adjustable via OSD
- IR receiver for quick and easy video quality adjustment
- IR remote control for screen on/off and video adjustment at remote site
- Provides two RS-232 channels for selection
- Follows VESA FDMI mount standard
- Supports DDC for the local monitor
- Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA, and multisync monitors
- Transmission distance up to 650' (can extend distance up to 1350' when combined with ATEN's VB552 – sold separately)
- Can also be combined in an installation with ATEN's Media Distribution Solution
UPC: 672792398162 In the Box ATEN VE200 VGA/Audio Cat5e/6 Extender up to 650' with RS-232 VE200L Audio / Video Extender (Local Unit) VE200R Audio / Video Extender (Remote Unit) Infrared Remote Control Handset 6' (1.8 m) VGA/Audio Cable Mounting Kit Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE200 VGA Audio Cat5e 6 Extender up to 650' with RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE200 Specs | Video Resolution | 1600 x 1200 @ 60Hz | | Cable Distance | 500' / 150 m
| | Cable Type | Cat5e or better | | Connectors | Video Input: local 1 x VGA (HDDB-15) male
Video Output: local 1 x VGA (HDDB-15) female, remote 2 x VGA (HDDB-15) female
Audio Input: local 1 x mini stereo F (green)
Audio Output: remote 2 x mini stereo F (green)
RS-232 - local: 1 x DB-9 female (black), 1 x DB-9 M (black)
RS-232 - remote: 2 x DB-9 M (black)
Power: 1 x DC jack
Unit to unit connectors:
Local: 1 x RJ45
Remote: 1 x RJ45 | | Switches | Picture compensation: remote - 2 x pushbutton
Port selection: 1 x pushbutton RS232 select | | LEDs | Power on: local and remote - 1 x orange
Remote: local RS232 green
On line: remote 1 x green | | Power | 5.3 VDC (L & R)
Power consumption: 2 W: 7 BTU/h (L), 3.9 W 13 BTU/h (R)
Power adapter/North America: 0AD8-0605-24EG | | Environment | Operation temperature: 32 to 140°F (0 to 54°C)
Storage temperature: -4 to 160°F (-20 to 70°C)
Humidity: 0 to 80% RH, non-condensing | | Material | Metal housing | | Dimensions | 5.5 x 1.2 x 3.2 (12.0 x 8.6 x 2.3 cm) | | Weight | 19.8 lb (9 kg) | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 11.2 x 6.9 x 4.2" |
