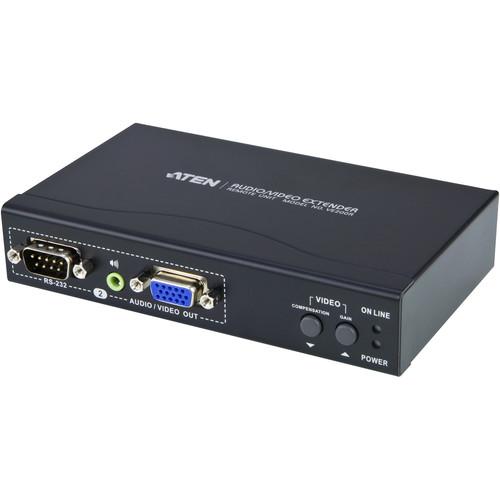

User Manual for ATEN VE200R 15-Pin VGA over Cat5 Receiver with RS232 Click to enlarge the picture
Contents of the user manual for the ATEN VE200R 15-Pin VGA over Cat5
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE200R 15-Pin VGA over Cat5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The ATEN VE200R 15-Pin VGA over Cat5 Receiver with RS232 allows you to extend the distance between the computer system unit and the display monitor by up to 500' for video resolutions of 1280 x 1024 at 60 Hz. It accomplishes this by means of a local transmitting unit (VE200L), and this VE200R receiving unit, connected by Cat5e twisted pair cable.The VE200 VGA Extender System is suitable for installations where the display needs to reside in public view, but the system equipment can be safely tucked away. The Extender System is also useful for control and security purposes, where you can have the units in a secure area while the display is located in an area that is convenient for viewing.Other useful applications for the VE200 VGA Extender System include remote displays for finance (stock market information), education (lectures and lessons to lecture halls and classrooms), and business (addresses to overflow rooms, videoconferences, and demonstrations). - Key Features:
-
- Uses Cat5e cable to connect the local transmitter and remote receiver units
- Dual A/V with support for one local and two remote displays
- Transmission distance up to 650'
- High-quality video—at 60 Hz, up to 1920 x 1200 at 100', 1600 x 1200 at 500', and 1280 x 1024 at 650'
- Audio and serial enabled
- Two gain control modes for sharpest picture quality
- Video gain and compensation adjustable via OSD
- IR receiver for quick and easy video quality adjustment
- IR remote control for screen on/off and video adjustment at remote site
- Provides two RS-232 channels for selection
- Follows VESA FDMI mount standard
- Supports DDC for the local monitor
- Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA, and multisync monitors
UPC: 672792002021 In the Box ATEN VE200R 15-Pin VGA over Cat5 Receiver with RS232 Mounting Kit Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE200R 15-Pin VGA over Cat5 Receiver with RS232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE200R Specs | Video Resolution | 1600 x 1200 @ 60 Hz | | Cable Distance | 500' / 150 m | | Cable Type | Cat5e or better | | Connectors | Video Input on Transmitter: 1 x 15-Pin VGA, male
Video Output on Transmitter: 1 x 15-Pin VGA, female
Video Output on Receiver: 2 x 15-Pin VGA, female
Audio Input on Transmitter: 1 x 3.5 mm Mini stereo jack, female
Audio Output on Receiver: 2 x 3.5 mm Mini stereo jack, female
RS-232 on Transmitter: 1 x DB-9, female and 1 x DB-9, male
RS-232 on Receiver: 2 x DB-9, male
Unit to Unit Connectors on Transmitter & Receiver: RJ45 | | Switches | Transmitter: RS232 select
Receiver: Compensation & Gain | | LEDs | Transmitter & Receiver: Power On (orange) / RS232 (green)
Receiver: On Line (green) | | Power | 5.3 VDC (L & R)
Power Consumption: 2 W 7 BTU/h (L), 3.9 W 13 BTU/h (R)
Power adapter 0AD8-0605-24EG, North America | | Environment | Operation Temperature: 32 to 140°F / 0 to 54°C
Storage Temperature: -4 to 160°F / -20 to 70°C
Humidity: 0 to 80% RH, non-condensing | | Material | Metal housing | | Dimensions | 5.5 x 1.2 x 3.2 / 12.0 x 8.6 x 2.3 cm | | Weight | 19.8 lb / 9 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.4 x 6.4 x 2.5" |
