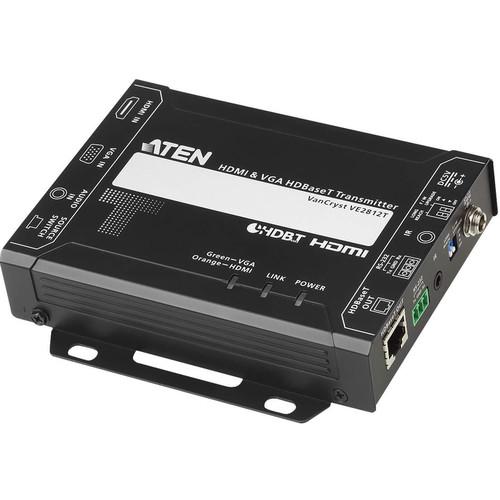

User Manual for ATEN VE2812T HDMI & VGA with Audio HDBaseT Transmitter Click to enlarge the picture
Contents of the user manual for the ATEN VE2812T HDMI & VGA with
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE2812T HDMI & VGA with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Provided by third party: ATEN VE2812T is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE2812T guarantees reliable transmission of HDMI signals, supporting 3D, Deep Color, and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 100 m. In addition, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p. For utility flexibility, theVE2812T can serve as a video switch by connecting two sources and distribute them to an identical output. The VE2812T is designed for use in meeting rooms or digital educational environment where high video quality is required.
- Key Features
-
- Extends HDMI or VGA signals over a single Cat 5e/6/6a cable
- HDMI (3D, Deep color, 4K); HDCP compatible
- Superior video quality: 4K / 1080p at distance up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable VGA 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- VGA 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Supports Auto Switch ? the VE2812T automatically switches to a newly plugged-in source
- Functions as a switch or a converter : A Switch: Connects two sources (HDMI or VGA) A converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
UPC: 672792007835 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE2812T HDMI & VGA with Audio HDBaseT Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE2812T Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Max Resolution | 4096 x 2160 | | Max Video Bandwidth | 340 MHz | | Max Transfer Distance | 328 ft | | Features | HDCP compliant, 3D support, 4K resolution support, Push Button Configuration (PBC) | | | | Interfaces | 1 x HDMI - 19 pin HDMI Type A female
1 x VGA - HD-15 female
1 x audio - mini jack female
1 x serial - terminal block
1 x IrDA - mini jack female
1 x HDBaseT - RJ-45 female | | | | Included Accessories | Removable terminal block | | Rack Mounting Kit | Included | | Compliant Standards | RoHS, CEC | | | | Power Device | External power adapter | | | | Width | 4 in | | Depth | 5.4 in | | Height | 1.1 in | | Weight | 16.58 oz | | | | Min Operating Temperature | 32
