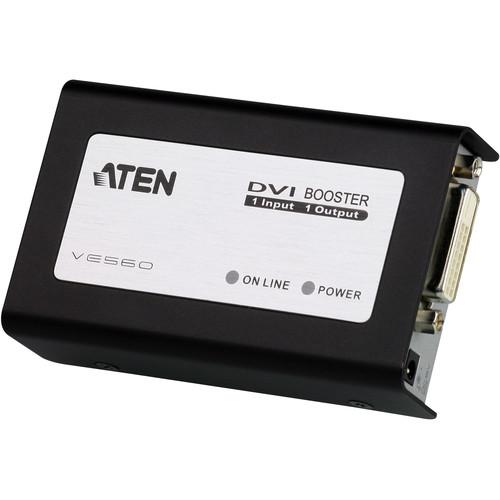

User Manual for ATEN VE560 DVI Booster Click to enlarge the picture
Contents of the user manual for the ATEN VE560 DVI Booster
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE560 DVI Booster contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VE560 DVI Booster from ATEN allows extending the standard DVI transmission range by 165 feet while maintaining high video quality. This allows placing a computer in a safe environment. The VE560 provides a mounting kit which enables you to easily mount the device on a wall. The VE560 is suitable for home theater applications. The unit is also referred to as a DVI Repeater. - One unit handles digital video extension and supports long length cable (24 AWG cable) for digital signal transmission
- Transmission distance of up to 165'
- Fully compliant with DVI specifications
- Supports DDWG standard for DVI compliant monitors
- Supports high resolution: HDTV resolution of 480p, 720p, 1080i and 1080p & VGA, SVGA, SXGA (1280x1024), UXGA (1600x1200)and WUXGA (1920x1200)
- Plug-and-play and easy to install
- Easily connects to different digital video devices (e.g. STB, LCD Monitor, Projector, LCD TVs)
- Multiplatform support: Windows 2000/XP/ Vista, Linux, Mac and SUN
UPC: 672792126161 In the Box ATEN VE560 DVI Booster Mounting Kit Power Adapter User Guide 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE560 DVI Booster in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE560 Specs | Connectors | Video Out: 1 x DVI-D female (white)
Video In: 1 x DVI-D female (white)
Power Jack: 1 x DC jack | | LEDs | Power: 1 x orange
Link: 1 x green | | Video | 1080p (HDTV) / WUXGA (1920 x 1200) | | Signal Range | 164' (50 m) 24 AWG; 82' (25 m) 28 AWG | | Power Consumption | DC 5 V; 1 W | | Environment | Operating Temperature: 32 to 122˚F (0 to 50˚C)
Storage Temperature: -4 to 140˚F (-20 to 60˚C)
Humidity: 0 to 80% RH, non-condensing | | Physical Properties | Housing: Metal
Dimensions (L x W x H): 3.5 x 2.2 x 0.9" (9.00 x 5.50 x 2.40 cm)
Weight: 0.4 lb (0.16 kg) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.4 x 6.4 x 2.5" |
