User Manual for ATEN VE600A DVI-D Audio over CAT5e Extender Kit Click to enlarge the picture
Contents of the user manual for the ATEN VE600A DVI-D Audio over CAT5e
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
 |
User manual for the ATEN VE600A DVI-D Audio over CAT5e contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

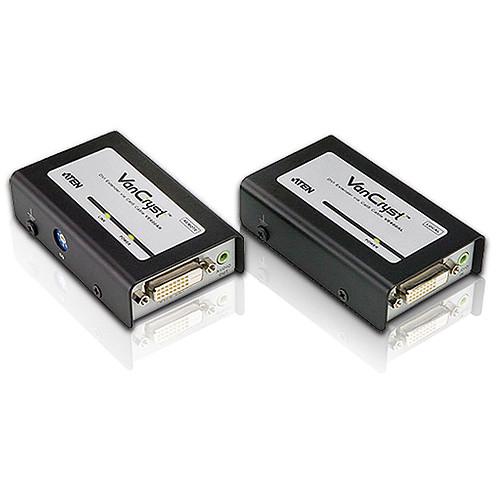

Product description The ATEN VE600A DVI-D/Audio over CAT5e Extender Kit features a local and remote unit. It is designed to extend your DVI-D display up to 200' away from the DVI source via CAT 5e cables. This extender kit allows the audio/video signals to be transmitted over one CAT5e cable. You can use a second CAT5e cable to provide real EDID. The VE600A features stereo audio support for most widescreen formats and is designed to provide up to 1920x1200 resolution in installations where remote DVI-D video displays are required. The remote unit features an adjustable EQ compensation control. - Extends the distance between DVI source and display
- Long distance transmission up to 200'
- Uses CAT5e cable to connect the local and remote units
- Features ATEN EDID technology that allows transmission over one CAT5e cable
- Video quality up to 1920 x 1200 (130'), 1080p (130'), 1080i (200')
- Adjustable EQ compensation control
- Supports widescreen formats
UPC: 672792003004 In the Box ATEN VE600A DVI-D/Audio over CAT5e Extender Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE600A DVI-D Audio over CAT5e Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE600A Specs | Enclosure | Metal | | Connectors | Local unit:

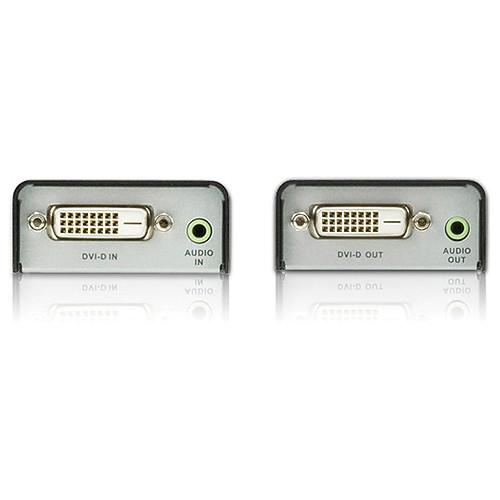

1 x DVI-D video input, female
1 x 3.5 mm phone jack, audio input

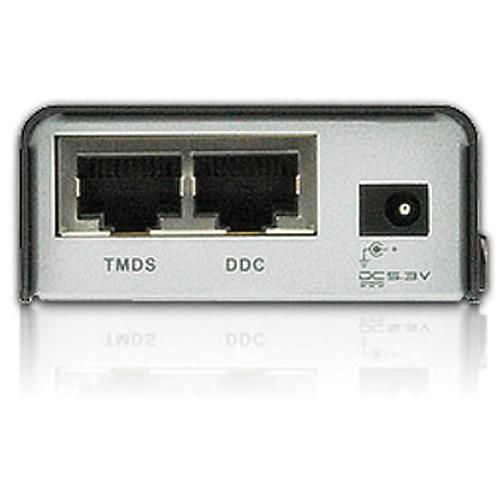

2 x RJ-45, interconnect
1 x DC barrel, power
Remote unit:
1 x DVI-D video output, female
1 x 3.5 mm phone jack, audio output
2 x RJ-45, interconnect
1 x DC barrel, power | | LEDs | 1 x Power, green
1 x Link, green | | Switches | 1 x 8-position rotary switch | | Video Resolution | 1080i @ 196.8' (60 m)
1080p @ 131' (40 m)
VGA, SVGA, SXGA, UXGA, WUXGA 1920 x 1200 @ 130' (39.6 m) | | Maximum Cable Length | 200' (61 m) @ 1080i | | Voltage | 5.3 VDC | | Amperage | Local unit: 400 mA
Remote unit: 300 mA | | Power Consumption | Local unit: 2.05 W
Remote unit: 1.45 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80%, non-condensing | | Dimensions | Each unit: 3.6 x 2.2 x 1" (9.1 x 5.6 x 2.5 cm) | | Weight | Each unit: 1 lb (0.45 kg) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.685 x 6.457 x 2.284" |
