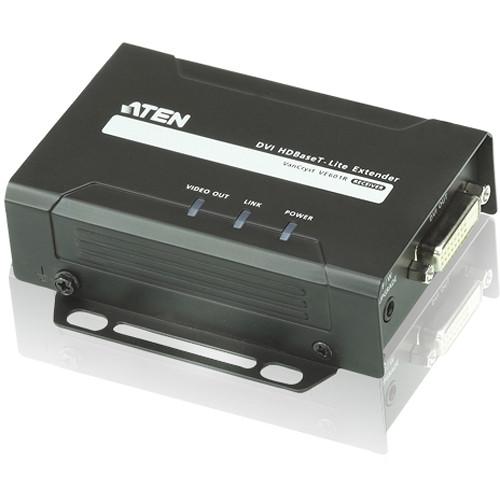

Product description The VE601R DVI HDBaseT-Lite Receiver (HDBaseT Class B) from ATEN can be used for extending a DVI 1080p60 signal up to 229.6’ using an Ethernet cable. This combination of receiver and HDBaseT technology also supports sharing 1920 x 1200 media up to 131.2’ away, offering a simple and adaptable solution for any professional A/V installation.The VE601 DVI HDBaseT-Lite receiver is suitable for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight, easy-to-mount design and slip-resistant DC jack lock mechanism, the receiver is east to install and set up. - Compatibility
- VE601T and VE801T HDBaseT transmitter units
- HDBaseT connectivity extends a DVI connection up to 229.6' via a single Ethernet cable
- HDBaseT anti-jamming resists signal interference during video transmission using HDBaseT technology
UPC: 672792006647 In the Box ATEN VE601R DVI HDBaseT-Lite Receiver (HDBaseT Class B) Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE601R DVI HDBaseT-Lite Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

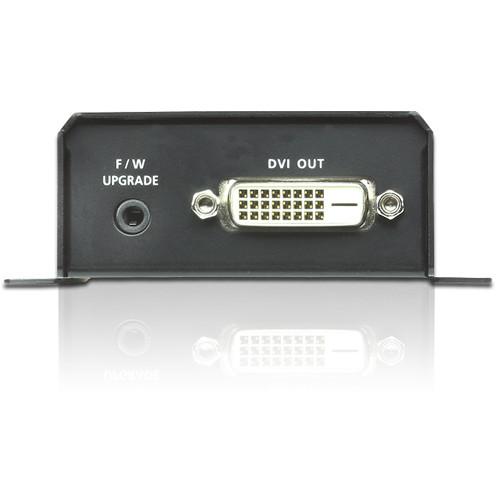

Technical parametersATEN VE601R Specs | Video Output | Interface: 1 x DVI-D female (white)
Impedance: 100 Ohms | | Video | Maximum Data Rate: 10.2 Gb/s (3.4 Gb/s per lane)
Maximum Pixel Clock: 340 MHz
Compliance: DVI (3D, Deep Color), HDCP compatible
Maximum Resolution/Distance
1920 x 1200: 131.2' / 40 m via Cat 6a
1920 x 1200: 114.8' / 35 m via Cat 5e/6
1080p60: 229.6' / 70 m via Cat 6a

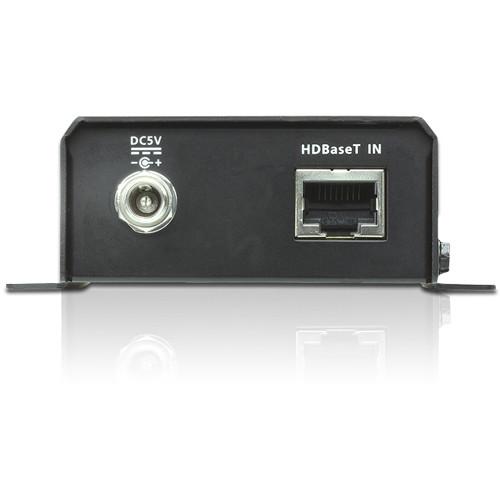

1080p60: 196.8' / 60 m via Cat 5e/6 | | Power | 1 x DC jack, locking
Consumption: 5 VDC, 4.23 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Compliance | RoHS | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 4.06 x 3.43 x 1.18" / 10.3 x 8.7 x 3 cm | | Weight | 8.8 oz / 250 g |
