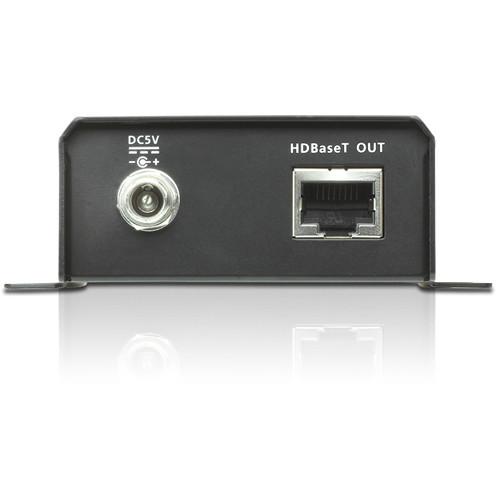

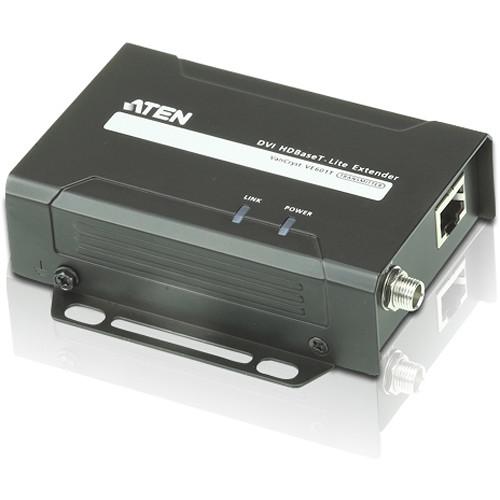

User Manual for ATEN VE601T DVI HDBaseT-Lite Transmitter Click to enlarge the picture
Contents of the user manual for the ATEN VE601T DVI HDBaseT-Lite Transmitter
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
 |
User manual for the ATEN VE601T DVI HDBaseT-Lite Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VE601T DVI HDBaseT-Lite Transmitter (HDBaseT Class B) from ATEN can be used for extending a DVI 1080p60 signal up to 229.6’ using an Ethernet cable. This combination of transmitter and HDBaseT technology also supports sharing 1920 x 1200 media up to 131.2’ away, offering a simple and adaptable solution for any professional A/V installation.The VE601T DVI HDBaseT-Lite transmitter is suitable for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight, easy-to-mount design, and slip-resistant DC jack lock mechanism, the transmitter is east to install and set up. - Compatibility
- VE601R and VE801R HDBaseT receiver units
- HDBaseT connectivity extends a DVI connection up to 229.6' via a single Ethernet cable
- HDBaseT anti-jamming resists signal interference during video transmission using HDBaseT technology
UPC: 672792006630 In the Box ATEN VE601T DVI HDBaseT-Lite Transmitter (HDBaseT Class B) Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE601T DVI HDBaseT-Lite Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE601T Specs | Video Output | Interface: 1 x DVI-D, female (white)
Impedance: 100 Ohms
Maximum Distance: Up to 5.9' / 1.8 m | | Video | Maximum Data Rate: 10.2 Gb/s (3.4 Gb/s per lane)
Maximum Pixel Clock: 340 MHz
Compliance: DVI (3D, Deep Color), HDCP compatible
Maximum Resolution/Distance
1920 x 1200: 131.2' / 40 m via Cat 6a
1920 x 1200: 114.8' / 35 m via Cat 5e/6
1080p60: 229.6' / 70 m via Cat 6a
1080p60: 196.8' / 60 m via Cat 5e/6 | | Power | 1 x DC jack, locking
Consumption: 5 VDC, 1.85 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Compliance | RoHS | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 4.06 x 3.43 x 1.18" / 10.3 x 8.7 x 3 cm | | Weight | 8.8 oz / 250 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.5 x 6.4 x 2.5" |
