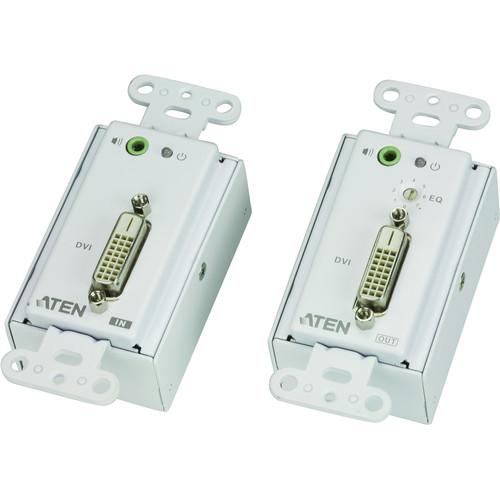

Product description The VE606 DVI Over Cat5 Extender Wall Plate from ATEN extends DVI and audio signals up to 198.8' using Cat5e cable. It supports popular wide screen formats and ensures optimal video quality over long distance transmissions. The VE606 combination can further extend the distance or multiply sources and displays. The plate can be powered at either the transmitter or receiver side, using a second Cat5e cable to transmit the power signal. Its compact wall plate design does away with bulky cables and allows for a neat and convenient installation. It is suitable for function rooms, museums, and any environment that requires equipment or cabling to be kept hidden from public view. - Uses one Cat5e cable to transmit video and audio between units, and a second Cat5e to power from either the transmitter or receiver side, with provided power adapter
- Extends the distance between DVI source and DVI display
- Enhanced video quality of up to 1080p/60 Hz at 131.2', and 1080i/60 Hz at 198.8'
- Eight-segment equalization adjustment switch optimizes display quality
- Supports wide screen formats
- Decora-type design is easily configurable to fit various wall plates
- LED indication of power sources/connection status
- Built-in 8kV/15kV ESD protection
- Wall-mountable type provides easy, clean installation
- Plug-and-play and no software installation is required
UPC: 672792004650 In the Box ATEN VE606 DVI Over Cat5 Extender Wall Plate VE606T DVI Over Cat 5 Extender Wall Plate VE606R DVI Over Cat 5 Extender Wall Plate Terminal Block Connector Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE606 DVI Over Cat5 Extender Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE606 Specs | Video Input | 1 x DVI-D female | | Video Output | 1 x DVI-D female | | Impedance | 100 ohms | | Video | Maximum Data Rate: 6.75 Gb/s (2.25 Gb/s per lane)
Maximum Pixel Clock: 225 MHz
Compliance: HDCP compatible | | Resolution | Up to 1920 x 1200 at 131.2' (40 m)
Up to 1280 x 1024 at 196.8' (60 m) | | Audio | Input: 1 x 3.5 mm Mini stereo jack
Output: 1 x 3.5 mm Mini stereo jack | | Power | Connector: 1 x Terminal block
Consumption: 9 VDC, 2.9 W | | Operating Temperature | 32 to 122°F (0 to 50˚C) | | Storage Temperature | -4 to 140°F (-20 to 60˚C) | | Relative Humidity | 0 to 80% (non-condensing) | | Housing | Metal | | Dimensions (L x W x H) | 3.98 x 1.74 x 1.70" (10.11 x 4.44 x 4.34 cm) | | Weight | 5.99 oz (170.00 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.4 x 6.3 x 2.4" |
