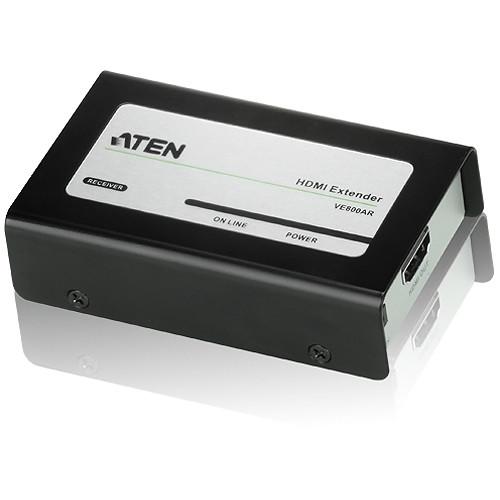

User Manual for ATEN VE800AR HDMI Receiver Click to enlarge the picture
Contents of the user manual for the ATEN VE800AR HDMI Receiver
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN VE800AR HDMI Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

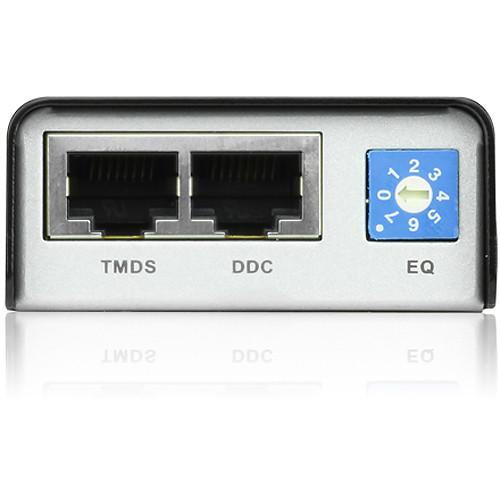

Product description The VE800AR HDMI Receiver from ATEN connects to a transmitter* to extend signals up to 197 feet from the source using a Cat 5e cable. ATEN's VE800A incorporates a communication technology that allows the A/V signals to be transmitted over a single Cat 5e cable. A DDC port is provided for the ability to use the display's EDID (extended display identification data structure) by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
*Compatible Transmitter Units:
VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter - Features ATEN EDID technology that allows transmission over one Cat 5e cable
- Improved video quality - 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color)
HDCP Compatible - Supports Dolby True HD and DTS HD Master Audio
- 8 segment equalization adjustment switch optimizes display quality
UPC: 672792005763 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE800AR HDMI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE800AR Specs | Video Output | Interface: 1 x HDMI Type A female (black)
Impedance: 100 ohms | | Video | Maximum Data Rate: 6.75 Gbps (2.25 Gbps per lane)
Maximum Pixel Clock: 225 MHz
Compliance: HDMI (3D, Deep Color), HDCP compatible
Maximum Resolutions / Distance: Up to 1080p @ 131' (40m); 1080i @ 197' (60 m) | | Audio Output | 1 x HDMI Type A female (black) | | Power | Connector: 1 x DC jack (black)
Consumption:
5 VDC, 0.75 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 3.54 x 2.20 x 0.94" (9.00 x 5.50 x 2.40 cm) | | Weight | 0.35 lb (0.16 kg) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.2 x 4.7 x 2.4" |
