User Manual for ATEN VE801R HDMI HDBaseT-Lite Transmitter Click to enlarge the picture
Contents of the user manual for the ATEN VE801R HDMI HDBaseT-Lite Transmitter
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN VE801R HDMI HDBaseT-Lite Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

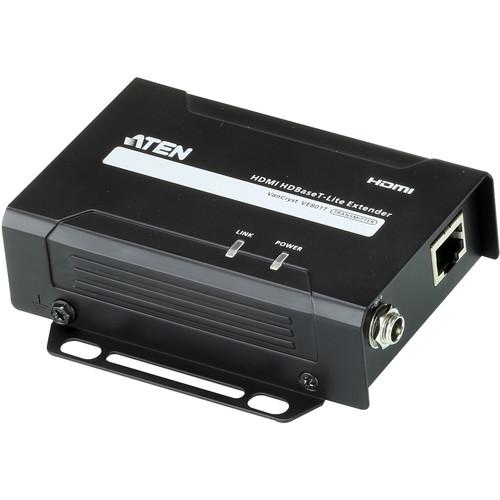

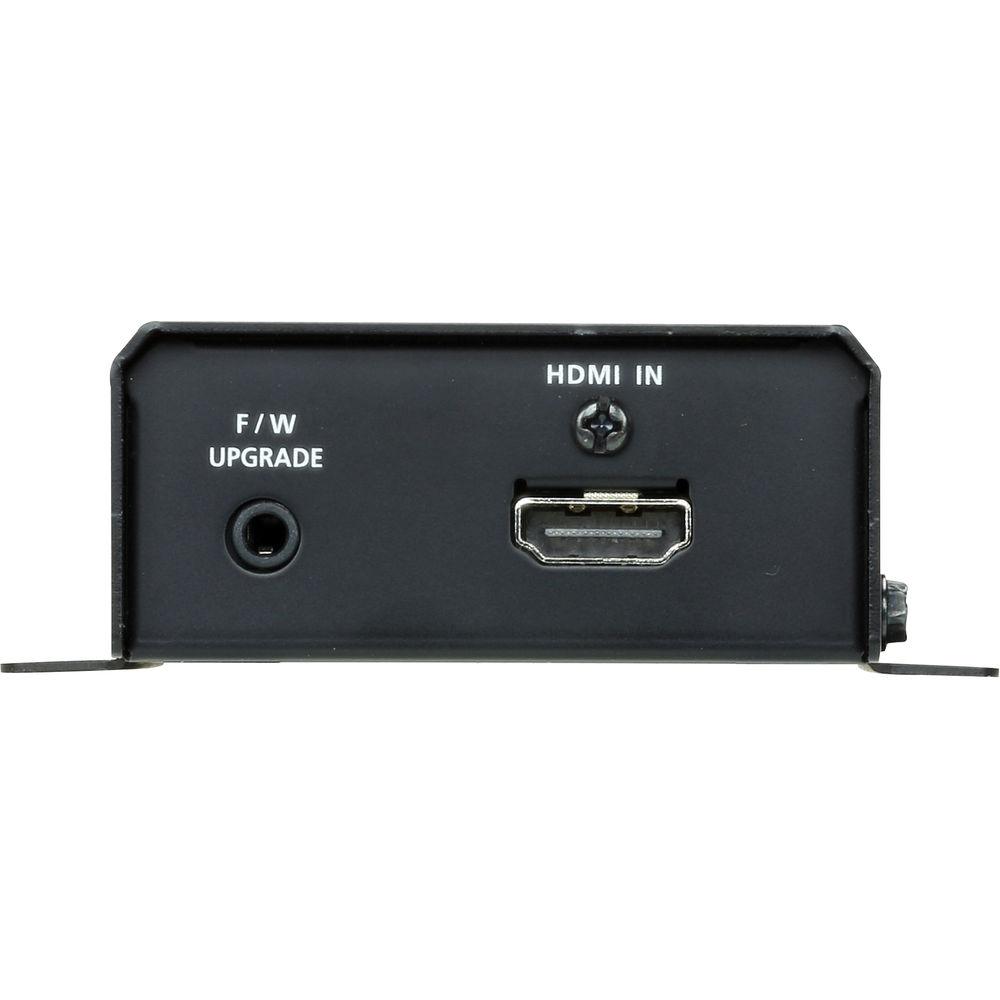

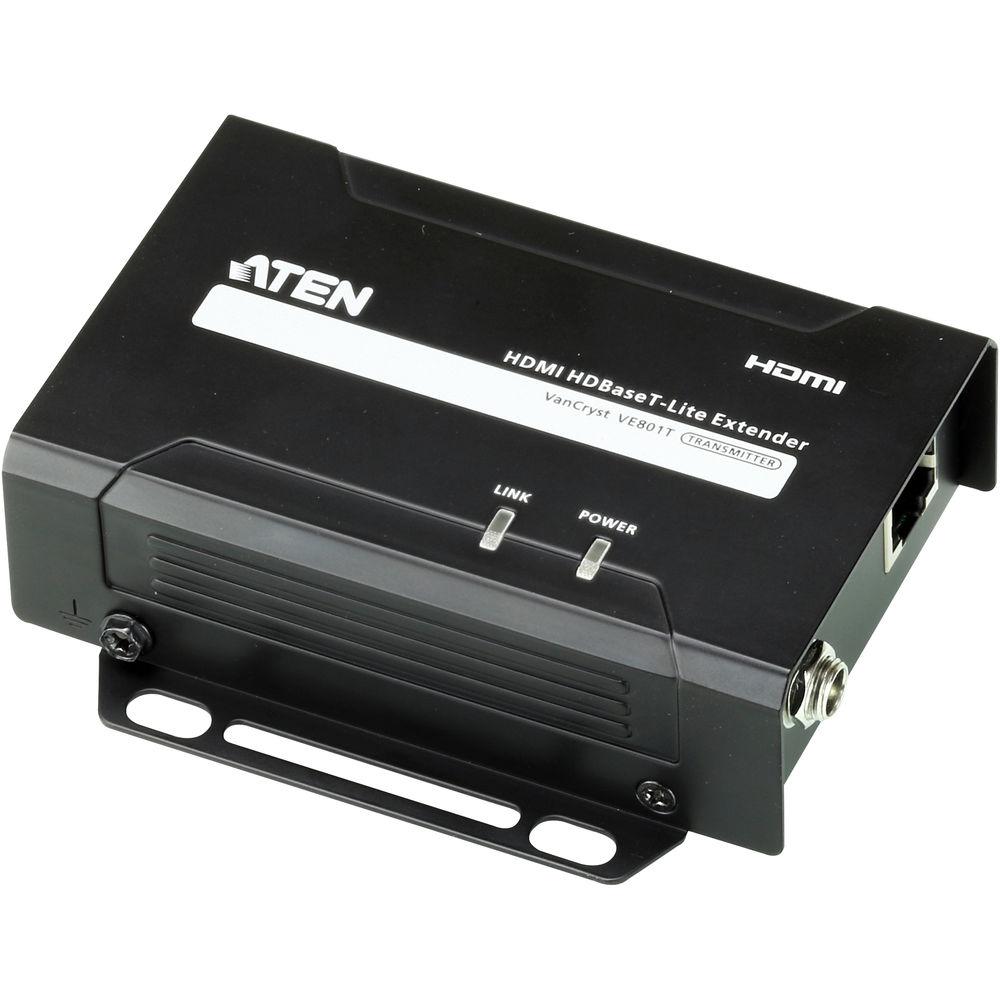

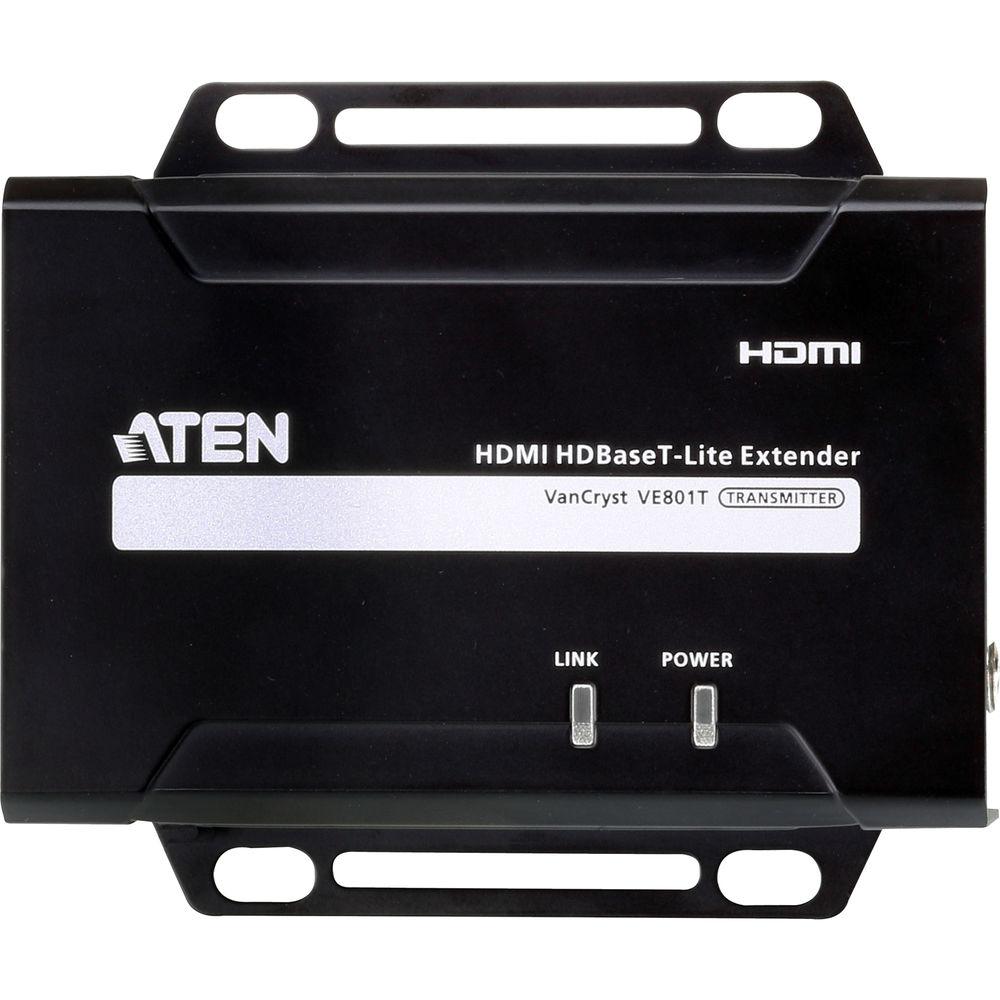

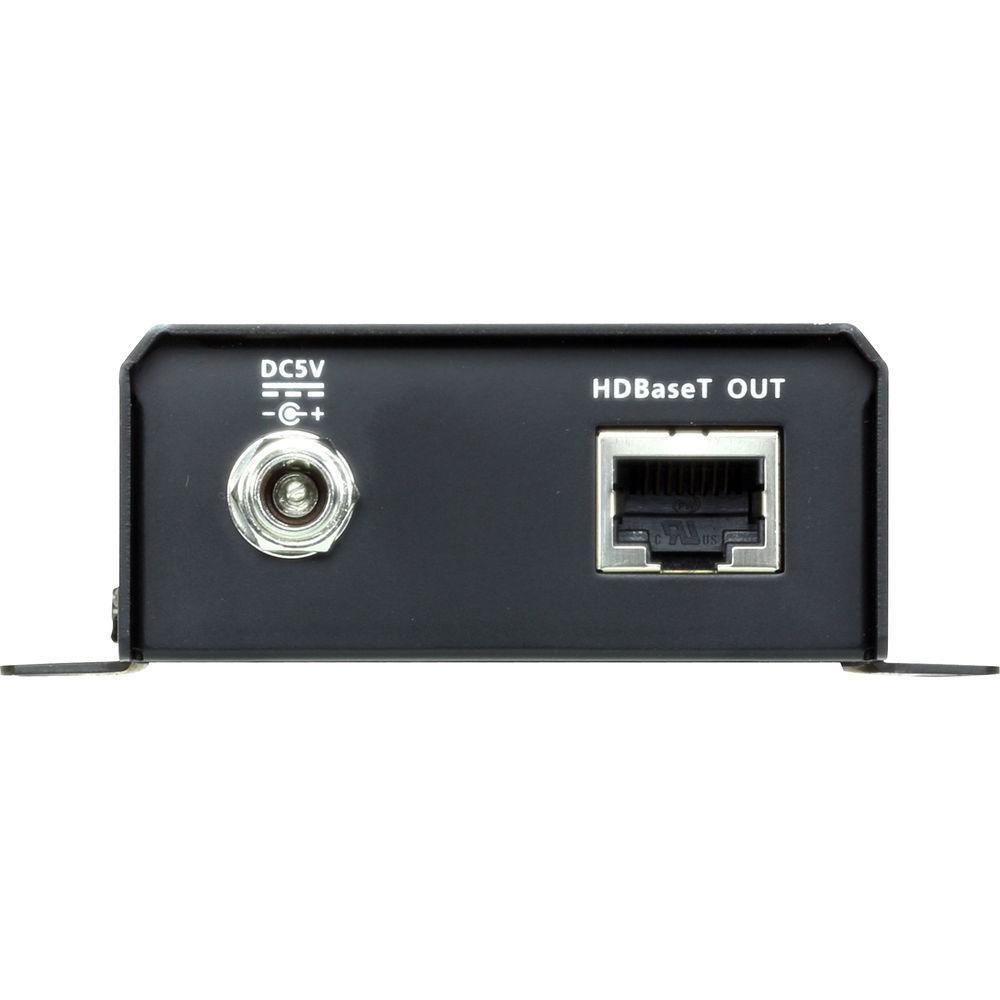

Product description The VE801T HDMI HDBaseT-Lite Transmitter from ATEN connects with the VE801R HDBaseT receiver to extend signals up to 230 feet from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio, and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in almost any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is suitable for digital entertainment centers or almost any installation that requires improved HDMI video quality to be extended for great distances. The VE801T is a HDBaseT Class B compatible device. - HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- EDID Expert - configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
UPC: 672792006166 In the Box ATEN VE801R HDMI HDBaseT-Lite Transmitter Power Adapter User Instructions Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE801R HDMI HDBaseT-Lite Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE801T Specs | Video Output | Interface: 1 x HDMI Type A female (black)
Impedance: 100 ohms
Maximum Distance: 5.9' (1.8 m) | | Video | Maximum Data Rate: 10.2 Gbps (3.4 Gbps per lane)
Maximum Pixel Clock: 340 MHz
Compliance:
HDMI (3D, Deep Color, 4K)
HDCP compatible
Consumer Electronics Control (CEC)
Maximum Resolutions / Distance: Up to:
4K @ 115' (35 m) (Cat 5e/6) / 131' (40 m) (Cat 6a);
1080p @ 197' (60 m) (Cat 5e/6) / 230' (70m) (Cat 6a) | | Audio | Input: 1 x HDMI Type A female (black)
Output: 1 x HDMI Type A female (black) | | Power | Connector: 1 x DC jack / locking (black)
Consumption:
5 VDC, 1.85 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 40 to 85% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 4.5 x 3.54 x 1.18" (10.30 x 8.70 x 3.00 cm) | | Weight | 0.53 lb (0.24 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.4 x 6.3 x 2.5" |
