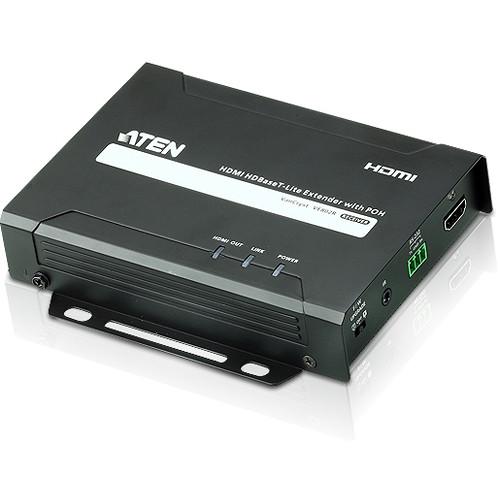

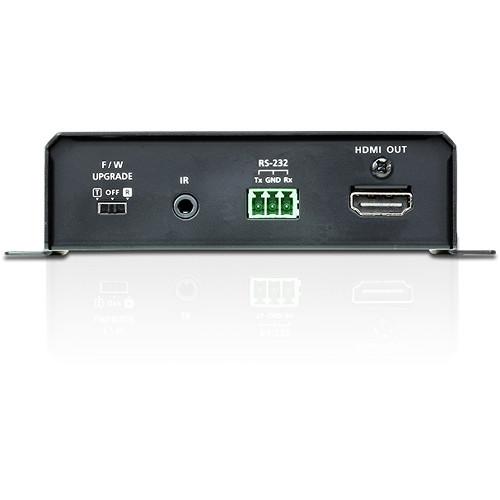

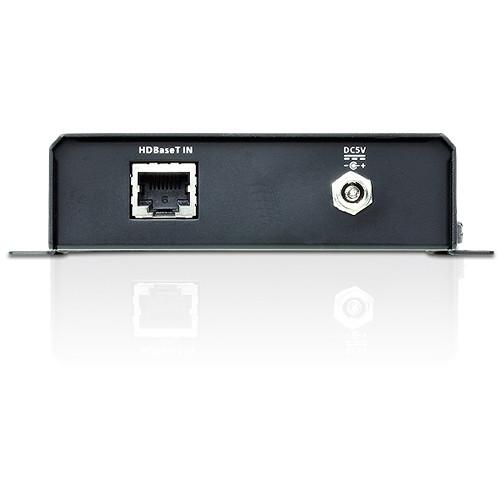

Product description The VE802R HDMI HDBaseT-Lite Receiver with PoH from ATEN connects with HDBaseT transmitters to extend signals up to 229.6’ from the source using one Cat5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). In addition, IR signals can also be extended in both directions. The VE802R receiver is HDMI (3D, Deep Color, and 4k) and HDCP compatible. It is suitable for any digital entertainment center or installation that requires improved video quality. - Compatibility
- VE802T HDBaseT transmitter
- HDBaseT connectivity extends an HDMI connection over a long distance via one Cat5e/6/6a cable
- HDBaseT anti-jamming resists signal interference during high-quality video transmission by using HDBaseT technology
- PoH (Power over HDBaseT) supplies power from transmitter to receiver over a long distance via one Cat5e/6/6a cable
- Bidirectional RS-232 channel allows you to connect to serial terminals or serial devices, such as touchscreens and barcode scanners
- IR transmission is processed one direction at a time
In the Box ATEN VE802R HDMI HDBaseT-Lite Receiver with PoH (Class B) IR Receiver Power Adapter Terminal Block Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE802R HDMI HDBaseT-Lite Receiver with PoH in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ATEN VE802R HDMI HDBaseT-Lite Receiver with PoH can be downloaded in PDF format at the link stated below.
Technical parametersATEN VE802R Specs | Video Input | Interface: 1 x HDMI type A, female
Impedance: 100 Ohms
Maximum Distance: 5.9' (1.8 m) | | Video Output | Interface: 1 x HDMI type A, female
Impedance: 100 Ohms | | Video Signal | Maximum Resolutions per Distance:
Up to 4K: 131' (40 m) via Cat6a / 115' (35 m) via Cat5e/6
Up to 1080p: 230' (70m) via Cat6a / 197' (60 m) via Cat5e/6
4K Support:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0)
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Maximum Data Rate: 10.2 Gbps (3.4 Gbps per lane)
Maximum Pixel Clock: 340 MHz
Compliance: HDMI (3D, Deep Color, 4K) / HDCP compatible / Consumer Electronics Control (CEC) | | Audio | Input: 1 x HDMI type A, female
Output: 1 x HDMI type A, female | | Control | RS-232:
1 x Terminal block, 3-pole
Baud Rate and Protocol: 19200 / Data Bits: 8 / Stop Bits: 1, no parity and flow control
IR:
1 x 3.5 mm Mini stereo jack, female | | Power | Consumption: 5 VDC, 4 W
Connector: 1 x DC jack, locking | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 5.7 x 4.8 x 1.2" (14.5 x 12.3 x 3.0 cm) | | Weight | 1 lb (0.5 kg) each |
