User Manual for ATEN VE802T HDMI HDBaseT-Lite Transmitter with PoH Click to enlarge the picture
Contents of the user manual for the ATEN VE802T HDMI HDBaseT-Lite Transmitter with
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN VE802T HDMI HDBaseT-Lite Transmitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

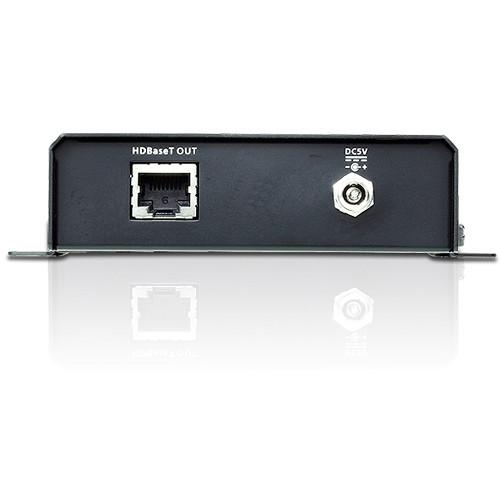

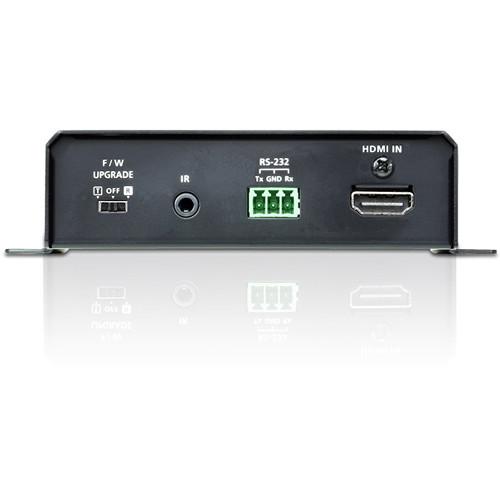

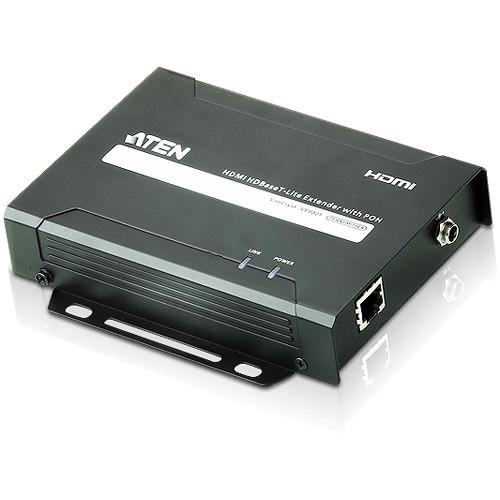

Product description The VE802T HDMI HDBaseT-Lite Transmitter with PoH from ATEN connects with HDBaseT receivers to extend signals up to 229.6’ from the source using one Cat5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). In addition, IR signals can also be extended in both directions. The VE802T transmitter is HDMI (3D, Deep Color, and 4k) and HDCP compatible. It is suitable for any digital entertainment center or installation that requires improved video quality. - Compatibility
- VE802R HDBaseT receiver
- HDBaseT connectivity extends an HDMI connection over a long distance via one Cat5e/6/6a cable
- HDBaseT anti-jamming resists signal interference during high-quality video transmission by using HDBaseT technology
- PoH (Power over HDBaseT) supplies power from transmitter to receiver over a long distance via one Cat5e/6/6a cable
- Bidirectional RS-232 channel allows you to connect to serial terminals or serial devices, such as touchscreens and barcode scanners
- IR transmission is processed one direction at a time
UPC: 672792006203 In the Box ATEN VE802T HDMI HDBaseT-Lite Transmitter with PoH (Class B) IR Transmitter Power Adapter Terminal Block Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE802T HDMI HDBaseT-Lite Transmitter with PoH in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE802T Specs | Video Input | Interface: 1 x HDMI type A, female
Impedance: 100 Ohms
Maximum Distance: 5.9' (1.8 m) | | Video Output | Interface: 1 x HDMI type A, female
Impedance: 100 Ohms | | Video Signal | Maximum Resolutions per Distance:
Up to 4K: 131' (40 m) via Cat6a / 115' (35 m) via Cat5e/6
Up to 1080p: 230' (70m) via Cat6a / 197' (60 m) via Cat5e/6
4K Support:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0)
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Maximum Data Rate: 10.2 Gbps (3.4 Gbps per lane)
Maximum Pixel Clock: 340 MHz
Compliance: HDMI (3D, Deep Color, 4K) / HDCP compatible / Consumer Electronics Control (CEC) | | Audio | Input: 1 x HDMI type A, female
Output: 1 x HDMI type A, female | | Control | RS-232:
1 x Terminal block, 3-pole
Baud Rate and Protocol: 19200 / Data Bits: 8 / Stop Bits: 1, no parity and flow control
IR:
1 x 3.5 mm Mini stereo jack, female | | Power | Consumption: 5 VDC, 3.6 W
Connector: 1 x DC jack, locking | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 5.7 x 4.8 x 1.2" (14..5 x 12.3 x 3.0 cm) | | Weight | 0.9 lb (0.4 kg) |
