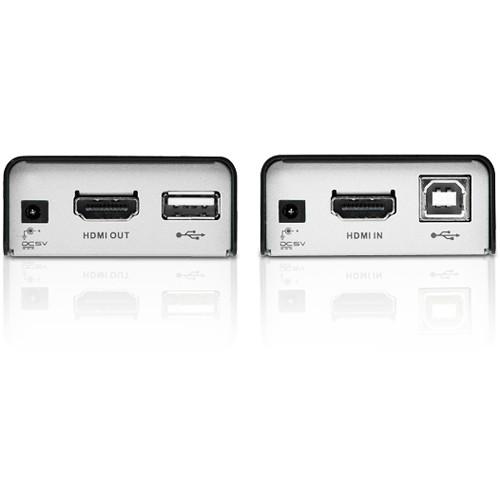

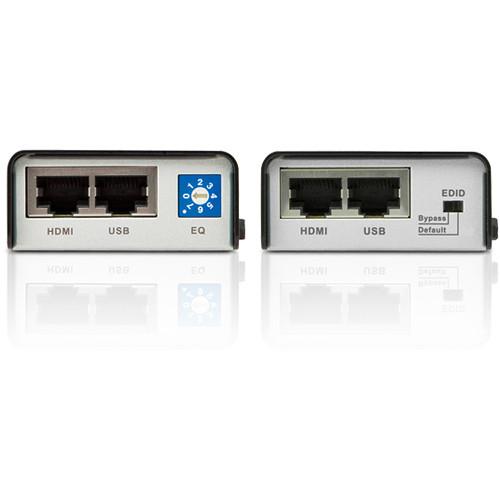

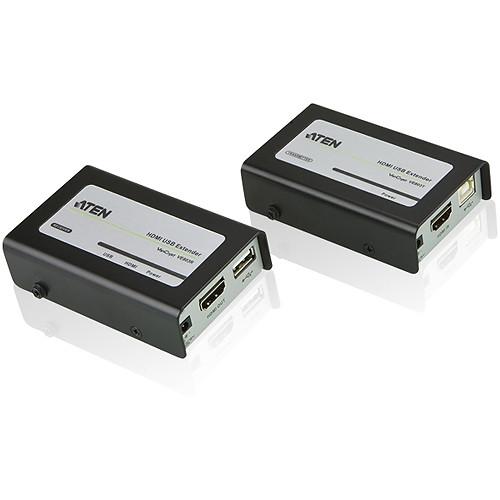

User Manual for ATEN VE803 HDMI USB Extender System Click to enlarge the picture
Contents of the user manual for the ATEN VE803 HDMI USB Extender System
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN VE803 HDMI USB Extender System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VE803 HDMI USB Extender System from ATEN extends an HDMI 1080i signal up to 170 feet from the HDMI source using two Cat5e cables. It is capable of sending 1080p signals up to 131 feet. The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
The HDMI USB Extender is suitable for use in transportation centers, medical facilities, shopping malls, or almost anywhere a touch panel control or kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable, when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy HDMI extender solution for most any application. The VE803 system includes the VE803T and VE803R units. - Uses two Cat5e cables to connect the local and remote units
- Extends 1080p by 131' and 1080i by 197'
- Improved HDTV Resolution Quality: 480p, 720p, 1080i, 1080p, VGA, SVGA, XGA, SXGA, UXGA, WUXGA
- Eight-segment equalization adjustment switch optimizes display quality
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8kV/15kV ESD protection
- Transparent USB support for all USB 2.0 full speed devices (up to 12 Mbps)
- Supports widescreen formats
- HDMI (3D, Deep Color); HDCP compatible with signaling rates up to 2.25 Gbps
- Local unit powered via USB cable
UPC: 672792004285 In the Box ATEN VE803 HDMI USB Extender System VE803T HDMI USB Transmitter VE803R HDMI USB Receiver Power Adapter Mounting Kit USB Cable, 5.9' (1.8 m) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE803 HDMI USB Extender System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE803 Specs | Video Input | Interface: 1 x HDMI Type A, female
Impedance: 100 Ohms | | Video Output | Interface: 1 x HDMI Type A, female
Impedance: 100 Ohms | | Video | Maximum Data Rate: 6.75 Gbps (2.25 Gbps per lane)
Maximum Pixel Clock: 225 MHz
Compliance: HDMI (3D, Deep Color), HDCP compatible
Maximum Resolutions/Distance:
Up to 1080p/131' (40 m)
Up to 1080i/197' (60 m) | | Audio | Input: 1 x HDMI Type A, female
Output: 1 x HDMI Type A, female | | Control | VE803T: 1 x USB Type B, female
VE803R: 1 x USB Type A, female | | EDID Modes | Default | | Power Consumption | VE803T: 5 VDC, 1 W
VE803R: 5 VDC, 3.9 W
Connector: 1 x DC jack | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 3.5 x 2.3 x 0.9" (9.0 x 5.7 x 2.4 cm) each | | Weight | 0.4 lb (0.2 kg) each | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.4 x 6.2 x 2.4" |
