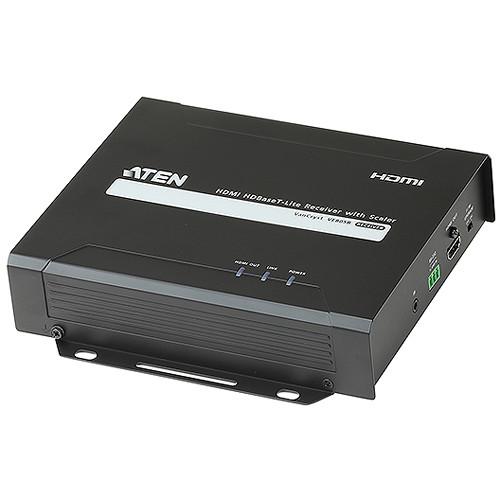

User Manual for ATEN VE805R HDMI HDBaseT-Lite Receiver with Scaler Click to enlarge the picture
Contents of the user manual for the ATEN VE805R HDMI HDBaseT-Lite Receiver with
- Product category: Router, Switcher & Patchbay Accessories ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Router, Switcher & Patchbay Accessories
|
User manual for the ATEN VE805R HDMI HDBaseT-Lite Receiver with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Provided by third party: The VE805R HDMI HDBaseT-Lite receiver with scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display from your HDMI source device using a single CAT 5e / 6a cable. With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT output board, it supports video wall integration and seamless switch functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
- Key Features
-
- HDBaseT connectivity
- HDBaseT anti-jamming
- Bi-directional RS-232 channel
- Built-in scaler
- Seamless switch
- Video wall
- Bi-directional IR channel
- HDBaseT connectivity
- Extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single CAT 5e / 6a cable.
- HDBaseT anti-jamming
- Resists signal interference during high quality video transmissions using HDBaseT technology.
- Bi-directional RS-232 channel
- Allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners.
- Built-in scaler
- Features a scaling function to integrate a video wall seamlessly with various output formats.
- Seamless switch
- Close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions.
- Video wall
- Features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI.
- Bi-directional IR channel
- IR transmission is processed one direction at a time.
UPC: 672792006265 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE805R HDMI HDBaseT-Lite Receiver with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE805R Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | Rack-mountable | | | | Connectivity Technology | Wired | | Data Link Protocol | HDMI, HDBaseT | | Max Video Bandwidth | 225 MHz | | Max Transfer Distance | 197 ft | | Features | HDCP compliant, 3D support, metal housing | | | | Interfaces | 1 x HDBaseT - RJ-45
1 x IrDA
1 x RS-232 - terminal block
1 x HDMI - 19 pin HDMI Type A | | | | Power Consumption Operational | 9.5 Watt | | | | Width | 6.7 in | | Depth | 7.2 in | | Height | 1.7 in | | Weight | 29.27 oz | | | | Min Operating Temperature | 32
