User Manual for ATEN VE806 HDMI Over CAT 5 Wall Plate Extender Click to enlarge the picture
Contents of the user manual for the ATEN VE806 HDMI Over CAT 5
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN VE806 HDMI Over CAT 5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

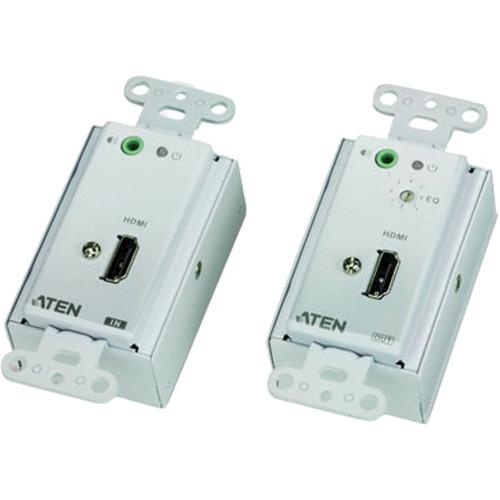

Product description The VE806 HDMI Over CAT 5 Wall Plate Extender from ATEN extends HDMI and audio signals up to 196.8' (60m) using CAT 5e cable. It supports popular wide screen formats and ensures remarkable video quality over long distance transmissions. The unit can be powered at either the transmitter or at the receiver side, and uses a second CAT 5e cable to transmit the power signal. The compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is suitable for use in function rooms, museums, and any environment that requires equipment or cabling to be kept hidden from public view. - Uses two CAT 5e cables to connect the local and remote units - one to transmit video and audio; and another for power 1
Please Note: The second CAT 5e cable connection is required to remotely power on either the transmitter or receiver close - Remotely powered from either the Transmitter or Receiver side 2
Please Note: The included power adapter can be used at either the transmitter or receiver side, which in turn remotely powers the other unit. close - Extends the distance between HDMI source and HDMI display
- Video quality up to 1080p @ 60 Hz 131.2' (40m), 1080i @ 60 Hz 196.8' (60m)
- HDMI (3D, Deep Color); HDCP compatible
- 8 segment equalization adjustment switch optimizes display quality
- Supports wide screen formats
- Decora type design is easily configurable to fit various wall plates
- LED indication of power sources / connection status
- Built-in 8 /15 kV ESD protection
- Wall mountable type for a neat and cleaner installation
- Plug-and-play - no software installation required
- Compatible with VE800, VS1804T, and VS1808T transmitters 3
Please Note: Sold separately. close UPC: 672792004667 In the Box ATEN VE806 HDMI Over CAT 5 Wall Plate Extender VE806T Transmitter VE806R Receiver Terminal Block Connector Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE806 HDMI Over CAT 5 Wall Plate Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

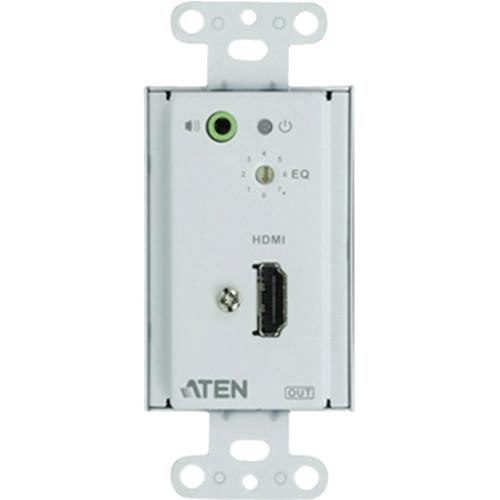

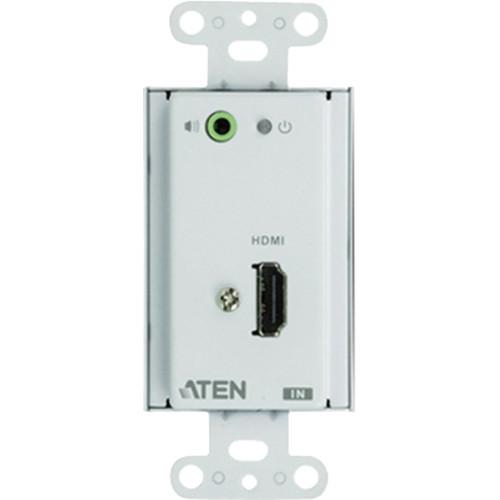

Technical parametersATEN VE806 Specs | | | Video In | VE806T: 1 x HDMI Type A Female (Black) | | Video Out | VE806R: 1 x HDMI Type A Female (Black) | | Audio In | VE806T: 1 x 3.5 mm Stereo Jack (Green) | | Audio Out | VE806R: 1 x 3.5 mm Stereo Jack (Green) | | DDC | VE806T: 1 x RJ-45 Female (Silver)
VE806R: 1 x RJ-45 Female (Silver) | | Power | VE806T: 1 x Terminal Block (Green)
VE806R: 1 x Terminal Block (Green) | | TMDS | VE806T: 1 x RJ-45 Female (Silver)
VE806R: 1 x RJ-45 Female (Silver) | | | | Power | 1 (Green) | | Link | 1 (Amber) | | | | Switch | EQ Switch: VE806R: 1 x Knob | | Video | 1080p @ 60 Hz 131.2' (40 m), 1080i @ 60 Hz 196.8' (60 m) | | Power Consumption | 9 VDC, 2.9 W | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | | | Housing | Metal | | Dimensions (L x W x H) | 3.98 x 1.74 x 1.57" (10.11 x 4.44 x 4.00 cm) each unit | | Weight | 0.37 lb (0.17 kg) each unit | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.3 x 6.4 x 2.3" |
